V2.3.0

1 - Getting started

To help users quickly experience and deploy HUATUO, this document is divided into three sections: Quick Experience，Quick Start，Compilation & Deployment.

1. Quick Experience

This section helps you quickly explore the frontend capabilities. You can directly access demo station, such as viewing exception event overviews, exception event context information, metric curves, etc. (Account: huatuo passwd: huatuo1024).

2. Quick Start

HUATUO Component Data Flow Diagram

2.1 Quick Run

If you want to understand the underlying principles and deploy HUATUO to your own monitoring system, you can start pre-compiled container images via Docker (Note: This method disables container information retrieval and ES storage functionality by default).

  • Direct Execution：

    $ docker run --privileged --pid=host --cgroupns=host --network=host -v /sys:/sys -v /proc:/proc -v /run:/run huatuo/huatuo-bamai:latest

  • Metric Collection：In another terminal, collect metrics

    $ curl -s localhost:19704/metrics

  • View Exception Events (Events, AutoTracing)：HUATUO stores collected kernel exception event information in ES (disabled by default) while retaining a copy in the local directory huatuo-local. Note: Typically, no files exist in this path (systems in normal state don’t trigger event collection). You can generate events by creating exception scenarios or modifying configuration thresholds.

2.2 Quick Setup

If you want to further understand HUATUO’s operational mechanisms, architecture design, monitoring dashboard, and custom deployment, you can quickly set up a complete local environment using docker compose.

$ docker compose --project-directory ./build/docker up

This command pulls the latest images and starts components including elasticsearch, prometheus, grafana，huatuo-bamai. After successful command execution, open your browser and visit http://localhost:3000 to access the monitoring dashboard (Grafana default admin account: admin, password: admin; Since your system is in normal state, the Events and AutoTracing dashboards typically won’t display data).

HUATUO huatuo-bamai Component Operation Diagram

3. Compilation & Deployment

3.1 Compilation

To isolate the developer’s local environment and simplify the compilation process, we provide containerized compilation. You can directly use docker build to construct the completed image (including the underlying collector huatuo-bamai, BPF objects, tools, etc.). Run the following command in the project root directory:

$ docker build --network host -t huatuo/huatuo-bamai:latest .

3.2 Execution

  • Run container:

    $ docker run --privileged --pid=host --cgroupns=host --network=host -v /sys:/sys -v /proc:/proc -v /run:/run huatuo/huatuo-bamai:latest

  • Or copy all files from the container path /home/huatuo-bamai and run manually locally:

    $ ./huatuo-bamai --region example --config huatuo-bamai.conf

  • Management: Can be managed using systemd/supervisord/k8s-DaemonSet, etc.

3.3 Configuration

  • Container Information Configuration

    HUATUO obtains POD/container information by calling the kubelet interface. Configure the access interface and certificates according to your actual environment. Empty configuration "" indicates disabling this functionality.

      [Pod]
    KubeletPodListURL = "http://127.0.0.1:10255/pods"
    KubeletPodListHTTPSURL = "https://127.0.0.1:10250/pods"
    KubeletPodClientCertPath = "/var/lib/kubelet/pki/kubelet-client-current.pem"

  • Storage Configuration

    • Metric Storage (Metric): All metrics are stored in Prometheus. You can access the :19704/metrics interface to obtain metrics.

    • Exception Event Storage (Events, AutoTracing): All kernel events and AutoTracing events are stored in ES. Note: If the configuration is empty, ES storage is not activated, and events are only stored in the local directory huatuo-local.

      ES storage configuration is as follows:

      [Storage.Elasticsearch]
    Address = "http://127.0.0.1:9200"
    Username = "elastic"
    Password = "huatuo-bamai"
    Index = "huatuo_bamai"

      Local storage configuration is as follows:

      # tracer's record data
# Path: all but the last element of path for per tracer
# RotationSizeMiB: maximum record file size before rotation
# MaxRotatedFiles: maximum number of rotated files to retain
[Storage.LocalFile]
    Path = "huatuo-local"
    RotationSizeMiB = 100
    MaxRotatedFiles = 10

  • Event Thresholds

    All kernel event collections (Events and AutoTracing) can have configurable trigger thresholds. The default thresholds are empirical data repeatedly validated in actual production environments. You can modify thresholds in huatuo-bamai.conf according to your requirements.

  • Resource Limits

    Kubernetes and systemd deployments let kubelet or systemd manage Huatuo cgroups by default, so Huatuo does not migrate its own PID. For direct execution without an external manager, pass --enable-cgroup and configure:

    [Runtime]
    StartupCPULimitCores = 0.5
    CPULimitCores = 2.0
    MemoryLimitMiB = 2048

2 - Deployments

The HUATUO collector huatuo-bamai runs on physical machines or VMs. We provide both binary packages and Docker images, and you can deploy them in any way.

2.1 - Docker

Image Download

Image repository: https://hub.docker.com/r/huatuo/huatuo-bamai/tags

Start a container with Docker

docker run --detach \
  --name huatuo-bamai \
  --restart unless-stopped \
  --privileged \
  --pid=host \
  --cgroupns=host \
  --network=host \
  --cpus=2 \
  --memory=2g \
  --volume /sys:/sys \
  --volume /proc:/proc \
  --volume /run:/run \
  huatuo/huatuo-bamai:latest

Note: The built-in default configuration does not connect to kubelet or Elasticsearch.

Limit CPU and memory in production to isolate abnormal collection workloads. Docker manages the container cgroup; Huatuo does not create its own cgroup by default, so do not pass --enable-cgroup in a Docker deployment.

Verify that the limits are active and observe actual usage:

docker inspect huatuo-bamai \
  --format 'NanoCPUs={{.HostConfig.NanoCpus}} Memory={{.HostConfig.Memory}}'
docker stats huatuo-bamai

These values are an initial baseline. Adjust them based on node capacity, collection jobs, and observed resource peaks.

Start containers with Docker

The docker compose command allows you to quickly set up a complete local environment where you manage the collector, Elasticsearch, Prometheus, Grafana, and other components yourself.

$ docker compose --project-directory ./build/docker up

For installation instructions, see https://docs.docker.com/compose/install/linux/.

2.2 - Kubernetes

This document describes how to deploy the Huatuo collector to a Kubernetes cluster using a DaemonSet.

1. Kubernetes Manifest Deployment

1.1 Download the configuration file

curl -L -o huatuo-bamai.conf https://github.com/ccfos/huatuo/raw/main/huatuo-bamai.conf

1.2 Modify the configuration file

Modify the configuration file for the deployment environment. For example, configure the storage backend and the method used to obtain Pod information. See the Configuration Guide for details.

1.3 Create the ConfigMap

kubectl create configmap huatuo-bamai-config \
  --namespace default \
  --from-file=./huatuo-bamai.conf \
  --dry-run=client -o yaml |
kubectl apply -f -

1.4 Deploy the collector

Download the DaemonSet manifest:

curl -L -o huatuo-daemonset.yaml \
  https://raw.githubusercontent.com/ccfos/huatuo/main/build/huatuo-daemonset.minimal.yaml

Before deploying to production, set the huatuo container resources to this initial baseline:

resources:
  limits:
    cpu: "2"
    memory: 2Gi
  requests:
    cpu: "2"
    memory: 2Gi

Apply the modified manifest:

kubectl apply -f ./huatuo-daemonset.yaml

requests provide scheduling guarantees, while limits are enforced by the Pod cgroup managed by kubelet. Huatuo does not create its own cgroup by default, so it remains under kubepods and can be reclaimed normally after containerd restart or Pod deletion.

These values are an initial baseline with matching requests and limits, so the Pod has Guaranteed QoS. [Runtime] applies only when --enable-cgroup is explicitly passed; do not pass that flag in Kubernetes.

1.5 Verify the deployment

kubectl rollout status daemonset/huatuo \
  --namespace default \
  --timeout=10m

kubectl get pods \
  --namespace default \
  --selector app=huatuo \
  --output wide

kubectl get daemonset huatuo \
  --namespace default \
  --output jsonpath='{.spec.template.spec.containers[?(@.name=="huatuo")].resources}'

After updating huatuo-bamai.conf, rerun section 1.3 to update the ConfigMap, then manually restart the DaemonSet:

kubectl rollout restart daemonset/huatuo --namespace default

2. Helm Deployment

The Helm Chart is located at build/charts/.

2.1 Check the deployment environment

Helm and kubectl must be installed on the management host, which must be able to access the target Kubernetes cluster.

(command -v helm || curl -fsSL https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash) && helm version

TARGET_CONTEXT="$(kubectl config get-contexts -o name | sed -n '1p')"
kubectl --context "${TARGET_CONTEXT}" get nodes

Verify that the target Nodes are Ready.

2.2 Prepare the configuration file

Download and modify huatuo-bamai.conf as described in sections 1.1 and 1.2.

2.3 Configure deployment values

Create values-production.yaml:

image:
  repository: <registry-accessible-to-all-nodes>/huatuo-bamai
  tag: "<release-version>"
  pullPolicy: IfNotPresent

resources:
  limits:
    cpu: "2"
    memory: 2Gi
  requests:
    cpu: "2"
    memory: 2Gi

nodeSelector:
  kubernetes.io/os: linux

tolerations:
  - operator: Exists

hostPaths:
  proc: /proc
  sys: /sys
  run: /run
  var: /var
  etc: /etc
  data: /var/log/huatuo/huatuo-local

2.4 Validate the Helm Chart

helm lint ./build/charts \
  -f ./values-production.yaml \
  --set-file config.content=./huatuo-bamai.conf

helm template huatuo ./build/charts \
  --namespace huatuo \
  -f ./values-production.yaml \
  --set-file config.content=./huatuo-bamai.conf \
  >/dev/null

2.5 Deploy the collector

helm upgrade --install huatuo ./build/charts \
  --kube-context "${TARGET_CONTEXT}" \
  --namespace huatuo \
  --create-namespace \
  -f ./values-production.yaml \
  --set-file config.content=./huatuo-bamai.conf \
  --atomic \
  --timeout 10m

2.6 Verify the deployment

helm status huatuo \
  --kube-context "${TARGET_CONTEXT}" \
  --namespace huatuo

kubectl --context "${TARGET_CONTEXT}" \
  --namespace huatuo \
  get daemonset,configmap,pod --output wide

kubectl --context "${TARGET_CONTEXT}" \
  --namespace huatuo \
  rollout status daemonset/huatuo \
  --timeout=10m

Inspect the collector logs:

kubectl --context "${TARGET_CONTEXT}" \
  --namespace huatuo \
  logs \
  --selector app.kubernetes.io/name=huatuo \
  --prefix \
  --tail=100

2.7 Upgrade and roll back

After changing the image version or huatuo-bamai.conf, rerun the command in section 2.5.

List the release history and roll back to a selected revision:

helm history huatuo \
  --kube-context "${TARGET_CONTEXT}" \
  --namespace huatuo

helm rollback huatuo <revision> \
  --kube-context "${TARGET_CONTEXT}" \
  --namespace huatuo \
  --wait \
  --timeout 10m

2.3 - Bare-Metal

Production resource limits

systemd owns resource limits and process lifecycle for huatuo-bamai.service. The service unit disables Huatuo self-managed cgroups and uses native controls:

[Service]
CPUAccounting=yes
CPUQuota=200%
MemoryAccounting=yes
MemoryMax=2G
TasksAccounting=yes
TasksMax=32768
KillMode=control-group

CPUQuota=200% allows up to 2 CPU cores and MemoryMax=2G caps service memory. Adjust these values for the host, collection jobs, and observed peaks. Do not pass --enable-cgroup in a systemd deployment; it would move the process out of the service cgroup.

After starting the service, check its status and cgroup:

systemctl status huatuo-bamai --no-pager
systemd-cgls --unit huatuo-bamai.service

Binary

The HUATUO release provides static Linux tar packages for amd64 and arm64. The tar package contains the huatuo-bamai and huatuo-apiserver binaries, configuration files, and BPF objects.

This section applies to releases that provide assets named huatuo-bamai-<version>-static-linux-<arch>.tar.gz. This naming starts with v2.2.0 in the current releases. The v2.0.0 and v2.1.0 tar packages use different names, so the commands below do not apply to them directly.

The commands below use HUATUO_VERSION for the target version. Change it to the release version you want to install, for example v2.2.0:

HUATUO_VERSION="<release-version>"

1. Download the tar package

For x86_64 hosts, download the amd64 package:

wget "https://github.com/ccfos/huatuo/releases/download/${HUATUO_VERSION}/huatuo-bamai-${HUATUO_VERSION}-static-linux-amd64.tar.gz"

For aarch64 hosts, download the arm64 package:

wget "https://github.com/ccfos/huatuo/releases/download/${HUATUO_VERSION}/huatuo-bamai-${HUATUO_VERSION}-static-linux-arm64.tar.gz"

2. Install the tar package

Create the installation, log, and data directories:

sudo install -d -m 0755 /opt/huatuo-bamai /var/log/huatuo-bamai /var/lib/huatuo-bamai

For amd64:

sudo tar -xzf "huatuo-bamai-${HUATUO_VERSION}-static-linux-amd64.tar.gz" --strip-components=1 --no-same-owner -C /opt/huatuo-bamai

For arm64:

sudo tar -xzf "huatuo-bamai-${HUATUO_VERSION}-static-linux-arm64.tar.gz" --strip-components=1 --no-same-owner -C /opt/huatuo-bamai

3. Install the service unit files

Download the service unit files from the matching source version:

sudo wget -O /etc/systemd/system/huatuo-bamai.service "https://raw.githubusercontent.com/ccfos/huatuo/${HUATUO_VERSION}/build/rpm/huatuo-bamai.service"
sudo wget -O /etc/systemd/system/huatuo-apiserver.service "https://raw.githubusercontent.com/ccfos/huatuo/${HUATUO_VERSION}/build/rpm/huatuo-apiserver.service"

4. Modify the configurations

Edit /opt/huatuo-bamai/conf/huatuo-bamai.conf and /opt/huatuo-bamai/conf/huatuo-apiserver.conf to match the deployment environment. For detailed configuration options, see the huatuo-bamai configuration and huatuo-apiserver configuration.

Set CPUQuota, MemoryMax, and TasksMax in the service unit. Configure [Runtime] only for direct execution with --enable-cgroup.

5. Register the HUATUO services

Reload the systemd configuration:

sudo systemctl daemon-reload

6. Start the HUATUO services

Start the services and enable them at system startup:

sudo systemctl enable --now huatuo-bamai huatuo-apiserver

RPM Package

The OpenCloudOS repository provides HUATUO v2.1.0 RPM packages for x86_64 and aarch64. The RPM package installs the HUATUO files and systemd service unit file.

1. Download the RPM package

Download the package for the host architecture:

For x86_64:

wget https://mirrors.opencloudos.tech/epol/9/Everything/x86_64/os/Packages/huatuo-bamai-2.1.0-2.oc9.x86_64.rpm

For aarch64:

wget https://mirrors.opencloudos.tech/epol/9/Everything/aarch64/os/Packages/huatuo-bamai-2.1.0-2.oc9.aarch64.rpm

2. Install the RPM package

For x86_64:

sudo dnf install ./huatuo-bamai-2.1.0-2.oc9.x86_64.rpm

For aarch64:

sudo dnf install ./huatuo-bamai-2.1.0-2.oc9.aarch64.rpm

3. Modify the configuration

Edit /etc/huatuo-bamai/huatuo-bamai.conf to match the deployment environment. For detailed configuration options, see the huatuo-bamai configuration.

Set CPUQuota, MemoryMax, and TasksMax in the service unit. Configure [Runtime] only for direct execution with --enable-cgroup.

4. Start the HUATUO service

The RPM package installs the huatuo-bamai.service service unit file. Start the service and enable it at system startup:

sudo systemctl enable --now huatuo-bamai

For complete RPM installation instructions, see https://mp.weixin.qq.com/s/Gmst4_FsbXUIhuJw1BXNnQ.

3 - Building from Source

1. Container Build

Run the following command to build the project and run static code checks.

$ sh build/build-run-testing-image.sh

Or run each step separately:

1. Prepare the build environment

$ docker build --network host -t huatuo/huatuo-bamai-dev:latest -f ./Dockerfile.devel .

2. Start the build container

$ docker run -it --pid=host --privileged --cgroupns=host --network=host -v $(pwd):/go/huatuo-bamai huatuo/huatuo-bamai-dev:latest sh

3. Build inside the container

$ make

2. Publishing the Image

Use docker build to publish the latest binary container image.

docker build --network host -t huatuo/huatuo-bamai:latest .

3. Bare-Metal Build

3.1 Install Dependencies

Ubuntu 24.04:

apt install make git clang libbpf-dev linux-tools-common curl capnproto

Fedora 40:

dnf install make git clang libbpf-devel bpftool curl capnproto capnproto-devel glibc-static

go install mvdan.cc/gofumpt@v0.8.0
go install mvdan.cc/sh/v3/cmd/shfmt@v3.11.0
go install golang.org/x/tools/cmd/goimports@v0.36.0
go install github.com/golangci/golangci-lint/cmd/golangci-lint@v1.62.2
go install github.com/vektra/mockery/v2@v2.53.6
go install capnproto.org/go/capnp/v3/capnpc-go@v3.1.0-alpha.2

3.2 Build

$ make

4. BPF Debug Build

Set BPF_DEBUG=1 to pass -DDEBUG_BPF to clang and compile the debug code into the BPF object:

$ make BPF_DEBUG=1            # Or build only the BPF objects: make BPF_DEBUG=1 bpf-build

See Debugging for trace points, runtime switches, and log output.

4 - Configuration Guide

Configuration guides for HUATUO components.

Configuration guides for huatuo-bamai and huatuo-apiserver.

4.1 - huatuo-bamai Configuration

1. Overview

huatuo-bamai is the core collector of HUATUO (a BPF-based metrics and anomaly inspector). Its configuration file defines the data collection scope, probe enablement strategy, metric output format, anomaly detection rules, and logging behavior.

The configuration file uses TOML format and includes multiple sections such as global blacklist, logging, runtime resource limits, storage configuration, and AutoTracing. Each configuration item comes with detailed comments explaining its purpose, default value, and important notes. This document provides a clear and detailed English explanation for every configuration item to help users understand and safely customize the settings.

Note: Most parameters are provided as commented defaults (prefixed with #). Uncomment and adjust as needed. Changes take effect after restarting huatuo-bamai. In production, avoid enabling high-overhead features unnecessarily.

2. Global Blacklist

# Global tracing and metrics configuration.
#
# - BlackList
# Global blacklist for tracing and metrics.
#
BlackList = ["netdev_hw", "metax_gpu", "ascend_npu", "diskio", "tcp_retransmit"]

  • BlackList: Global blacklist for tracing and metrics.

    Modules or hardware to exclude from tracing and metric collection. The default is ["netdev_hw", "metax_gpu", "ascend_npu", "diskio", "tcp_retransmit"], which disables tracing and metrics for the network device hardware layer, Metax GPU, Ascend NPU, procfs-based disk I/O statistics, and TCP retransmission tracing. Remove diskio to enable disk I/O metrics or tcp_retransmit to enable TCP retransmission tracing and its drop-correlation cache. Supports arrays; extend as needed.

3. Logging

# Log Configuration
[Log]
    # - Level
    # The log level for huatuo-bamai: Debug, Info, Warn, Error, Panic.
    # Default: Info
    #
    # - File
    # Store logs to where the logging file is. If it is empty, don't write log
    # to any file.
    # Default: empty
    #
    # Level = "Info"
    # File = ""

  • Level: Log verbosity. Values: Debug, Info, Warn, Error, Panic. Default: Info. Use Info or Warn in production; Debug for troubleshooting.

  • File: Log file path.

    Specifies the path to the log file. If left empty, logs are not written to any file (output goes to stdout or system logs).

    Default: empty.

    Description: In containerized deployments, configure a specific path and integrate with a log collection system for persistence.

4. Runtime Resource Limits

Huatuo does not create its own cgroup by default. This section applies only when --enable-cgroup is passed; Kubernetes and systemd deployments should use their native resource controls.

# Runtime limits for the huatuo-bamai process.
[Runtime]
    # - StartupCPULimitCores
    # CPU limit during startup, in cores.
    # Default: 0.5
    #
    # - CPULimitCores
    # CPU limit after startup, in cores.
    # Default: 2.0
    #
    # - MemoryLimitMiB
    # Memory limit in MiB.
    # Default: 2048
    #
    # StartupCPULimitCores = 0.5
    # CPULimitCores = 2.0
    # MemoryLimitMiB = 2048
  • StartupCPULimitCores limits CPU usage during initialization. Default: 0.5 cores.
  • CPULimitCores limits CPU usage after startup. Default: 2.0 cores.
  • MemoryLimitMiB limits process memory. Default: 2048 MiB.

The configured values remain in their documented units. Memory is converted to bytes only when the cgroup limit is applied.

5. HTTP Server and Tasks

# HTTP server configuration.
[HTTPServer]
    # - ListenAddress
    # Listen address in "host:port" form.
    # Default: ":19704"
    #
    # - MaxEventStreamClients
    # Maximum number of concurrent clients allowed to hold an open
    # /v1/events/watch SSE connection. Once the limit is reached, new requests
    # are rejected with HTTP 429 until an existing client disconnects.
    # Default: 100
    #
    # - EventStreamKeepAliveIntervalSeconds
    # Interval in seconds at which the server sends an SSE comment ping to each
    # connected client. The ping keeps the connection alive through load
    # balancers and proxies that would otherwise time out idle connections. If
    # writing the ping fails three consecutive times, the server closes the
    # connection.
    # Default: 30
    #
    # ListenAddress = ":19704"
    # MaxEventStreamClients = 100
    # EventStreamKeepAliveIntervalSeconds = 30

# Locally running tracing tasks.
[Tasks]
    # - MaxConcurrent
    # Maximum number of concurrent tasks.
    # Default: 10
    #
    # MaxConcurrent = 10
  • ListenAddress uses host:port form. An empty host listens on all interfaces.
  • MaxConcurrent limits locally running tracing tasks.

The event stream settings control POST /v1/events/watch. When MaxEventStreamClients is reached, new streams receive HTTP 429. EventStreamKeepAliveIntervalSeconds controls SSE heartbeat comments used to keep proxy and load-balancer connections alive. After three consecutive write failures, the server closes the stream. Set the interval below any upstream idle timeout; 15–60 seconds is typical.

6. Storage

6.1 Elasticsearch and OpenSearch Storage

# Storage configuration
[Storage]
    # Elasticsearch and OpenSearch Storage
    #
    # Disable ES/OS storage if one of Address, Username, Password is empty.
    # Store the tracing and events data of linux kernel to ES/OS.
    #
    # - Address
    # Port 9200 is commonly used for Elasticsearch/OpenSearch HTTP APIs.
    # e.g.
    # http://127.0.0.1:9200
    # https://127.0.0.1:9200
    #
    # - Index
    # Elasticsearch or OpenSearch index, a logical namespace that holds a collection of
    # documents for huatuo-bamai.
    # Default: huatuo_bamai
    #
    # - Username
    # - Password
    # Address, Username, and Password must be either all empty (disabled) or
    # all configured (enabled). Partial connection settings are invalid.
    #
    [Storage.Elasticsearch]
        # Address = "http://127.0.0.1:9200"
        # Index = "huatuo_bamai"
        # Username = "elastic"
        # Password = "REPLACE_WITH_PASSWORD"

  • Address: ElasticSearch/OpenSearch service address.

    No default value.

    Description: Used to store kernel tracing and event data. ES/OS storage is disabled when Address, Username, and Password are all empty. All three values are required when storage is enabled; a partial configuration prevents startup.

  • Index: Index name.

    Default: huatuo_bamai.

    Description: Logical namespace for organizing huatuo-bamai tracing and event documents.

  • Username: Authentication username.

    No default value.

    Description: Used for Basic Auth.

  • Password: Authentication password.

    No default value.

    Description: Used together with the username. In production, use a strong password and enable TLS encryption.

Overall: ES/OS storage persists kernel tracing and event data for later search and analysis.

6.2 Local File Storage

# LocalFile Storage
#
# Store data to local directory for troubleshooting on the host machine.
#
# - Path
# The directory for storing data. If the Path is empty, LocalFile will be disabled.
# Default: "huatuo-local"
#
# - RotationSizeMiB
# The maximum size in Megabytes of a record file before it gets rotated
# per kernel tracer.
# Default: 100MB
#
# - MaxRotatedFiles
# The maximum number of old log files to retain for per tracer.
# Default: 10
#
[Storage.LocalFile]
    # Path = "huatuo-local"
    # RotationSizeMiB = 100
    # MaxRotatedFiles = 10

  • Path: Local data storage directory.

    Default: huatuo-local. If empty, local file storage is disabled.

    Description: Stores data locally on the host for on-site troubleshooting. Use an absolute path.

  • RotationSizeMiB: Single file rotation size.

    Maximum size of a record file before rotation (per tracer).

    Default: 100 MB.

    Description: Prevents any single file from growing too large and consuming excessive disk space.

  • MaxRotatedFiles: Maximum number of rotated files to retain.

    Default: 10.

    Description: Oldest files are automatically deleted once the limit is reached, controlling disk usage.

7. Automatic Tracing

The automatic tracing module is one of HUATUO’s intelligent features. It triggers specific performance tracing based on thresholds, reducing manual intervention.

7.1 CPUIdle Automatic Tracing — Sudden High CPU Usage in Containers

# Autotracing configuration
[AutoTracing]
    # cpuidle
    #
    # For sudden high CPU usage in containers.
    #
    # - UserThreshold
    # User CPU usage threshold, when cpu usage reaches this threshold, cpu
    # performance tracing will be triggered.
    # Default: 75%
    #
    # - SysThreshold
    # System CPU usage threshold, when reaching this threshold, cpu performance
    # tracing will be triggered.
    # Default: 45%
    #
    # - UsageThreshold
    # The total cpu usage (system + user cpu usage) threshold, when reaching
    # this threshold, cpu performance tracing will be triggered.
    # Default: 45%
    #
    # - DeltaUserThreshold
    # The range of this user cpu changes within a short period of time.
    # Default: 45%
    #
    # - DeltaSysThreshold
    # The range of this system cpu changes within a short period of time.
    # Default: 20%
    #
    # - DeltaUsageThreshold
    # The range of this cpu usage changes within a short period of time.
    # Default: 55%
    #
    # - Interval
    # The sample interval of the cpu usage for all containers.
    # Default: 10s
    #
    # - IntervalTracing
    # Time since last run. Avoid frequently executing this tracing to prevent
    # performance impact.
    # Default: 1800s
    #
    # - RunTracingToolTimeout
    # Execution timeout of this tracing tool (seconds).
    # Default: 10s
    #
# NOTE:
# Profiling triggers when:
# 1. UserThreshold AND DeltaUserThreshold are exceeded, or
# 2. SysThreshold AND DeltaSysThreshold are exceeded, or
# 3. UsageThreshold AND DeltaUsageThreshold are exceeded
    #
    [AutoTracing.CPUIdle]
        # UserThreshold = 75
        # SysThreshold = 45
        # UsageThreshold = 90
        # DeltaUserThreshold = 45
        # DeltaSysThreshold = 20
        # DeltaUsageThreshold = 55
        # Interval = 10
        # IntervalTracing = 1800
        # RunTracingToolTimeout = 10

  • UserThreshold: User-mode CPU usage threshold (%).

    Default: 75%.

  • SysThreshold: System-mode CPU usage threshold (%).

    Default: 45%.

  • UsageThreshold: Total CPU usage threshold (%).

    Default: 90% (as shown in comments).

  • DeltaUserThreshold: Short-term user CPU change threshold (%).

    Default: 45%.

  • DeltaSysThreshold: Short-term system CPU change threshold (%).

    Default: 20%.

  • DeltaUsageThreshold: Short-term total CPU change threshold (%).

    Default: 55%.

  • Interval: CPU usage sampling interval (seconds).

    Default: 10s.

  • IntervalTracing: Minimum interval between runs (seconds).

    Default: 1800s (30 minutes).

  • RunTracingToolTimeout: Single tracing execution timeout (seconds).

    Default: 10s.

Trigger Logic: Tracing runs when any of the following is true:

  1. Both UserThreshold and DeltaUserThreshold are met, or
  2. Both SysThreshold and DeltaSysThreshold are met, or
  3. Both UsageThreshold and DeltaUsageThreshold are met.

Filter Container Filtering: Use Included/Excluded rule arrays to control monitoring scope.

    # Each rule contains Field (filter field) and Pattern (regex).
    # Field: container_host_namespace | container_hostname | container_qos
    #
    # [[AutoTracing.CPUIdle.Filter.Excluded]]
    #     Field = "container_qos"
    #     Pattern = "besteffort"
    # [[AutoTracing.CPUIdle.Filter.Included]]
    #     Field = "container_host_namespace"
    #     Pattern = "^application-"

  • Filter: Container filtering rules. Defined using [[double-bracket]] syntax with multiple rules, each containing Field (filter field) and Pattern (regex). Filtering logic:

    • No rules: monitor all containers
    • Excluded only: blacklist, skip matched containers
    • Included only: whitelist, only monitor matched containers
    • Both: must match Included AND not match Excluded

    Default: no rules, all containers monitored.

7.2 CPUSys Automatic Tracing — Sudden High System CPU on Host

# cpusys
#
# For sudden high system cpu usage on the host machine.
#
# - SysThreshold
# System CPU usage threshold, when reaching this threshold, cpu performance
# tracing will be triggered.
# Default: 45%
#
# - DeltaSysThreshold
# The range of system cpu changes within a short period of time.
# Default: 20%
#
# - Interval
# The sample interval of the cpu usage for host machine.
# Default: 10s
#
# - IntervalTracing
# Minimum time between profiling runs.
# Default: 1800s
#
# - RunTracingToolTimeout
# Execution timeout of this tracing tool (seconds).
# Default: 10s
#
# NOTE:
# Profiling triggers when:
# SysThreshold AND DeltaSysThreshold are exceeded.
#
[AutoTracing.CPUSys]
	# SysThreshold = 45
	# DeltaSysThreshold = 20
	# Interval = 10
	# IntervalTracing = 1800
	# RunTracingToolTimeout = 10

  • SysThreshold: System CPU usage threshold (%).

    Default: 45%.

  • DeltaSysThreshold: Short-term system CPU change threshold (%).

    Default: 20%.

  • Interval: Host CPU usage sampling interval (seconds).

    Default: 10s.

  • IntervalTracing: Minimum time between profiling runs. Default: 1800s.

  • RunTracingToolTimeout: Tracing execution timeout (seconds).

    Default: 10s.

Trigger Logic: Tracing is triggered when both SysThreshold and DeltaSysThreshold are satisfied.

7.3 Dload AutoTracing — D-State Task Profiling for Containers

# dload
#
# linux tasks D state profiling for containers.
#
# - ThresholdLoad
# Load average threshold. When exceeded, D-state profiling triggers.
# Default: 5
#
# - Interval
# The sample interval of the load for all containers.
# Default: 10s
#
# - IntervalTracing
# Time since last run. Avoid frequently executing this tracing to prevent
# performance impact.
# Default: 1800s
#
[AutoTracing.Dload]
	# ThresholdLoad = 5
	# Interval = 10
	# IntervalTracing = 1800

  • ThresholdLoad: System load average (loadavg) threshold for containers.

    Default: 5. Triggers D-state (uninterruptible sleep) task profiling when loadavg reaches this value.

  • Interval: Monitoring interval.

    Default: 10s.

  • IntervalTracing: Minimum time between consecutive tracings.

    Default: 1800s (30 minutes).

7.4 IOTracing AutoTracing — Container IO Performance Profiling

# iotracing
#
# io profiling for containers.
#
# - WbpsThreshold
# Max write bytes per second threshold. When exceeded, iotracing is triggered.
# For NVMe devices, UtilThreshold must also be met.
# Default: 1500 MB/s
#
# - RbpsThreshold
# Max read bytes per second threshold. When exceeded, iotracing is triggered.
# For NVMe devices, UtilThreshold must also be met.
# Default: 2000 MB/s
#
# - UtilThreshold
# Disk utilization (%). Consistently above 80-90% indicates a bottleneck.
# Default: 90%
#
# - AwaitThreshold
# Await (Average IO wait time in ms): High values indicate slow disk response times.
# Default: 100ms
#
# - RunTracingToolTimeout
# Execution timeout of this tracing tool (seconds).
# Default: 10s
#
# - MaxProcDump
# The number of processes displayed by iotracing tool.
# Default: 10
#
# - MaxFilesPerProcDump
# The number of files per process displayed by iotracing tool.
# Default: 5
#
[AutoTracing.IOTracing]
	# WbpsThreshold = 1500
	# RbpsThreshold = 2000
	# UtilThreshold = 90
	# AwaitThreshold = 100
	# RunTracingToolTimeout = 10
	# MaxProcDump = 10
	# MaxFilesPerProcDump = 5

  • WbpsThreshold: Max write bytes per second threshold (MB/s).

    Default: 1500. (For NVMe, must also meet UtilThreshold.)

  • RbpsThreshold: Max read bytes per second threshold (MB/s).

    Default: 2000.

  • UtilThreshold: Disk utilization threshold (%).

    Default: 90%.

  • AwaitThreshold: Average IO wait time threshold (ms).

    Default: 100ms.

  • RunIOTracingTimeout: IO tracing tool timeout (seconds).

    Default: 10s.

  • MaxProcDump: Maximum number of processes to display.

    Default: 10.

  • MaxFilesPerProcDump: Maximum files per process to display.

    Default: 5.

Description: Used for diagnosing IO hotspots in containers, especially under high disk load.

7.5 MemoryBurst AutoTracing

This module detects sudden memory usage spikes on the host and automatically captures kernel context to help diagnose memory pressure events.

# memory burst
#
# Capture kernel context on sudden host memory usage spikes.
#
# - Interval
# Memory usage sampling interval (seconds).
# Default: 10s
#
# - DeltaMemoryBurst
# Growth percentage threshold for memory usage. 100% means, e.g.,
# memory usage increased from 200MB to 400MB.
# Default: 100%
#
# - DeltaAnonThreshold
# Growth percentage threshold for anonymous memory. 100% means, e.g.,
# anon memory increased from 200MB to 400MB.
# Default: 70%
#
# - IntervalTracing
# Time since last run. Avoid frequently executing this tracing
# to prevent performance impact.
# Default: 1800s
#
# - DumpProcessMaxNum
# Number of processes to dump when triggered.
# Default: 10
#
[AutoTracing.MemoryBurst]
	# DeltaMemoryBurst = 100
	# DeltaAnonThreshold = 70
	# Interval = 10
	# IntervalTracing = 1800
	# SlidingWindowLength = 60
	# DumpProcessMaxNum = 10

  • DeltaMemoryBurst: Memory usage burst growth percentage threshold.

    Default: 100%.

  • DeltaAnonThreshold: Anonymous memory burst growth percentage threshold.

    Default: 70%.

  • Interval: Memory usage sampling interval (seconds).

    Default: 10s.

  • IntervalTracing: Minimum interval between runs (seconds).

    Default: 1800s.

  • SlidingWindowLength: Sliding window length (seconds).

    Default: 60s.

  • DumpProcessMaxNum: Maximum processes to dump on trigger.

    Default: 10.

7.6 Known Issue Filtering (IssuesList)

# Autotracing configuration.
#
# - IssuesList
# Known issue filters for autotracing.
#
[AutoTracing]
    IssuesList = []

  • IssuesList: Known issue filter. Format: [["name", "regex"], ...]. When a collected stack trace matches the regex, it is labeled with the issue name. Default [].

    Example: IssuesList = [["known_issue1", "softlockup"], ["known_issue2", "alloc_pages.*failed"]]

Note: Only supports dload tracing of known issues filtering, other events are not supported.

8. Event Tracing

This section is responsible for capturing key kernel events and monitoring latency, including softirq, memory reclaim, network receive latency, network device events, and packet drop monitoring. It is the core module for kernel-level anomaly context collection in HUATUO.

8.1 Softirq Disable Tracing

# linux kernel events capturing configuration
[EventTracing]
	# softirq
	#
	# Trace softirq disabled events in the Linux kernel.
	#
	# - DisabledThreshold
	# When the disable duration of softirq exceeds the threshold, huatuo-bamai
	# will collect kernel context.
	# Default: 10000000 in nanoseconds, 10ms
	#
	[EventTracing.Softirq]
		# DisabledThreshold = 10000000

  • DisabledThreshold: Softirq disable duration threshold (nanoseconds).

    Default: 10,000,000 ns (10ms). When softirq is disabled longer than this threshold, kernel context is collected.

    Description: Long softirq disable periods can cause delays in networking, timers, etc. Useful for diagnosing interrupt storms or high-load scenarios.

8.2 Memory Reclaim Blocking Tracing

# memreclaim
#
# The memory reclaim may block the process, if one process is blocked
# for a long time, reporting the events to userspace.
#
# - BlockedThreshold
# The blocked time when memory reclaiming.
# Default: 900000000ns, 900ms
#
[EventTracing.MemoryReclaim]
	# BlockedThreshold = 900000000

  • BlockedThreshold: Memory reclaim blocking time threshold (nanoseconds).

    Default: 900,000,000 ns (900ms). When a process is blocked by memory reclaim for longer than this time, an event is reported to userspace with context.

    Description: Memory reclaim blocking is a common cause of process stalls, especially in memory-constrained cloud-native environments.

8.3 Network Receive Latency Tracing

# networking rx latency
#
# linux net stack rx latency for every tcp skbs.
#
# - Driver2NetRx
# The latency from driver to net rx, e.g., netif_receive_skb.
# Default: 5ms
#
# - Driver2TCP
# The latency from driver to tcp rx, e.g., tcp_v4_rcv.
# Default: 10ms
#
# - Driver2Userspace
# The latency from driver to userspace copy data, e.g., skb_copy_datagram_iovec.
# Default: 115ms
#
# - ExcludedContainerQos
# Blacklist: skip containers whose qos level matches.
# Values: "guaranteed", "burstable", "besteffort" (case-insensitive).
# Default: [].
#
# - ExcludedHostNetnamespace
# Exclude packets in the host network namespace.
# Default: true
#
[EventTracing.NetRxLatency]
	# Driver2NetRx = 5
	# Driver2TCP = 10
	# Driver2Userspace = 115
	# ExcludedContainerQos = []
	ExcludedContainerQos = ["besteffort"]
	# ExcludedHostNetnamespace = true

  • Driver2NetRx: Latency threshold from driver to network receive layer (e.g., netif_receive_skb).

    Default: 5ms.

  • Driver2TCP: Latency threshold from driver to TCP receive (e.g., tcp_v4_rcv).

    Default: 10ms.

  • Driver2Userspace: Latency threshold from driver to userspace data copy (e.g., skb_copy_datagram_iovec).

    Default: 115ms.

  • ExcludedContainerQos: Container QoS levels to exclude (blacklist).

    Default: []. Corresponds to Kubernetes Pod QoS levels (Guaranteed, Burstable, BestEffort).

  • ExcludedHostNetnamespace: Whether to exclude packets in the host network namespace.

    Default: true.

8.4 Network Device Event Monitoring

# netdev events
#
# Monitor network device events.
#
# - DeviceList
# The net devices we monitor.
# Default: [] (empty, meaning no devices).
#
[EventTracing.Netdev]
	DeviceList = ["eth0", "eth1", "bond4", "lo"]

  • DeviceList: List of network device full-match regex patterns to monitor. Literal names such as "eth0" keep exact-match behavior; patterns such as "bond[0-9]+" can select multiple devices.

    Default example includes “eth0”, “eth1”, “bond4”, “lo”. An empty list means no devices are monitored.

    Description: Monitors physical link status events for specified network interfaces.

8.5 Packet Drop Monitoring

[EventTracing.Dropwatch]
    # tcpdump-style filter expression, forwarded to dropwatch --filter.
    # Default: "tcp"
    Filter = "tcp"

    # Forwarded to dropwatch --max-events-per-second.
    # Default: 100; 0 disables rate limiting.
    MaxEventsPerSecond = 100

    # Reserved configuration field. It is not currently consumed by the
    # dropwatch event path and therefore has no filtering effect.
    # Default: []
    ExcludeContainers = []

  • Filter: tcpdump-style packet filter passed to dropwatch --filter and applied by the BPF program before events are emitted.

    Default: "tcp".

  • MaxEventsPerSecond: Maximum number of dropwatch events emitted by BPF per second.

    Default: 100. Set to 0 to disable rate limiting.

  • ExcludeContainers: Reserved container-exclusion list.

    Default: []. The field exists in the configuration schema, but the current dropwatch event path does not read or forward it, so configuring it has no effect. Use EventTracing.IssuesList for operator-defined dropwatch call-stack suppression.

8.6 TCP Retransmission Tracing ([EventTracing.TCPRetransmit])

[EventTracing.TCPRetransmit]
    # Forwarded to tcpshark --filter.
    # Applies only to tcp_retransmit_skb events.
    # Default: ""
    Filter = ""

    # Forwarded as tcpshark --enable-tlp. Default: false.
    EnableTLP = false

    # Forwarded as tcpshark --max-events-per-second.
    # Default: 100; 0 disables rate limiting.
    MaxEventsPerSecond = 100

  • Filter: tcpdump-style filter expression passed to tcpshark --filter.

    Default: empty string. It applies only to tcp_retransmit_skb events.

  • EnableTLP: Whether to collect tcp_send_loss_probe events.

    Default: false.

  • MaxEventsPerSecond: Maximum TCP retransmission events emitted by BPF per second.

    Default: 100. Set to 0 for unlimited output. When the limit is exceeded, tcpshark logs rate limit hit.

8.7 Hardware Error Event Tracing (EventTracing.Ras)

# ras
#
# Hardware error event tracing (RAS: Reliability, Availability, Serviceability).
# Captures MCE, EDAC, ACPI/GHES, PCIe AER, and MCE threshold (THR) events via eBPF.
#
# - MceThrBackoff
# Minimum interval in seconds between consecutive MCE threshold (THR) event saves.
# THR events are fired by the local-APIC threshold interrupt and can storm at high
# frequency; this cooldown prevents flooding storage with redundant records.
# Default: 1800s (30 minutes)
#
[EventTracing.Ras]
    # MceThrBackoff = 1800

  • MceThrBackoff: Minimum cooldown in seconds between MCE threshold (THR) event saves.

    Default: 1800s (30 minutes).

    Description: THR events are generated by the CPU’s local-APIC threshold interrupt when correctable hardware errors accumulate. These can fire at very high frequency during hardware degradation. The backoff suppresses redundant saves while ensuring at least one record is captured per interval. Lower values provide more granular event records at the cost of higher storage throughput; in environments with frequent correctable errors, consider raising this value to reduce noise.

8.8 Known Issue Filtering (IssuesList)

# Linux kernel event tracing configuration.
#
# - IssuesList
# Known issue filters for event tracing.
#
[EventTracing]
    IssuesList = []

  • IssuesList: Known-issue suppression rules in the form [["name", "regex"], ...]. Default [].

    For net_rx_latency, each regex is matched against the generated event title. For dropwatch, it is matched against the newline-joined kernel call stack. A match causes the event to be discarded; the configured name identifies the rule but is not added to the saved event.

    Example: IssuesList = [["ignored_process", "comm=ignored_process"], ["neighbor_cleanup", "neigh_invalidate/"]]

9. Metric Collector

This section defines collection rules for various system and network metrics. All Included/Excluded fields share the same filter logic (regex):

  • No rules: all items are collected
  • Excluded only: blacklist, matched items are skipped
  • Included only: whitelist, only matched items are collected
  • Both: must match Included AND not match Excluded

9.1 Netdev Statistics

# Metric Collector
[MetricCollector]
	# Netdev statistic
	#
	# - EnableNetlink
	# Use netlink instead of procfs net/dev to get netdev statistic.
	# Only support the host environment to use `netlink` now.
	# Default is "false".
	#
	# - DeviceIncluded
	# Accept special devices in netdev statistic.
	# Default: "" (empty), meaning include all.
	#
	# - DeviceExcluded
	# Exclude special devices in netdev statistic.
	# Default: "" (empty), meaning exclude nothing.
	#
	# Filter logic see MetricCollector section header.
	#
	[MetricCollector.NetdevStats]
		# EnableNetlink = false
		# DeviceIncluded = ""
		DeviceExcluded = "^(lo)|(docker\\w*)|(veth\\w*)$"

  • EnableNetlink: Use netlink instead of procfs to collect netdev statistics.

    Default: false. Currently only supported on the host.

  • DeviceIncluded: Regex to include specific devices. Default: include all.

  • DeviceExcluded: Regex to exclude devices. Example: “^(lo)|(docker\w*)|(veth\w*)$”, meaning exclude loopback, docker, and veth interfaces.

9.2 Netdev DCB Collection

# netdev dcb, DCB (Data Center Bridging)
#
# Collecting the DCB PFC (Priority-based Flow Control).
#
# - DeviceList
# The net devices we monitor.
# Default: [] (empty, meaning no devices).
#
[MetricCollector.NetdevDCB]
	DeviceList = ["eth0", "eth1"]

  • DeviceList: List of network device full-match regex patterns for which DCB (Data Center Bridging) PFC information is collected.

    Default: empty.

9.3 Netdev Hardware Statistics

# netdev hardware statistic
#
# Collecting the hardware statistic of net devices, e.g, rx_dropped.
#
# - DeviceList
# The net devices we monitor.
# Default: [] (empty, meaning no devices).
#
[MetricCollector.NetdevHW]
	DeviceList = ["eth0", "eth1"]

  • DeviceList: List of network device full-match regex patterns for hardware-level statistics (e.g., rx_dropped).

    Default: empty.

9.4 Qdisc Collection

# Qdisc
#
# - DeviceIncluded / DeviceExcluded
# Same as above.
#
[MetricCollector.Qdisc]
	# DeviceIncluded = ""
	DeviceExcluded = "^(lo)|(docker\\w*)|(veth\\w*)$"
  • DeviceIncluded / DeviceExcluded: Same as above.

9.5 vmstat Metric Collection

# vmstat
#
# This metric supports host vmstat and cgroup vmstat.
# - IncludedOnHost / ExcludedOnHost: same as above, for host /proc/vmstat.
# - IncludedOnContainer / ExcludedOnContainer: same, for cgroup containers memory.stat.
#
[MetricCollector.Vmstat]
	IncludedOnHost = "allocstall|nr_active_anon|nr_active_file|nr_boost_pages|nr_dirty|nr_free_pages|nr_inactive_anon|nr_inactive_file|nr_kswapd_boost|nr_mlock|nr_shmem|nr_slab_reclaimable|nr_slab_unreclaimable|nr_unevictable|nr_writeback|numa_pages_migrated|pgdeactivate|pgrefill|pgscan_direct|pgscan_kswapd|pgsteal_direct|pgsteal_kswapd"
	ExcludedOnHost = "total"
	IncludedOnContainer = "active_anon|active_file|dirty|inactive_anon|inactive_file|pgdeactivate|pgrefill|pgscan_direct|pgscan_kswapd|pgsteal_direct|pgsteal_kswapd|shmem|unevictable|writeback|pgscan_globaldirect|pgscan_globalkswapd|pgscan_cswapd|pgsteal_cswapd|pgsteal_globaldirect|pgsteal_globalkswapd"
	ExcludedOnContainer = "total"

  • IncludedOnHost / ExcludedOnHost: Filter fields for host /proc/vmstat.

  • IncludedOnContainer / ExcludedOnContainer: Filter fields for container cgroup memory.stat.

9.6 Other Metric Collections

# MemoryEvents/Netstat/MountPointStat
#
# - Included / Excluded: same as above.
# - MountPointsIncluded: whitelist only (no Excluded), same logic.
#
[MetricCollector.MemoryEvents]
	Included = "watermark_inc|watermark_dec"
	# Excluded = ""
[MetricCollector.Netstat]
	# Excluded = ""
	# Included = ""

# MountPointStat
[MetricCollector.MountPointStat]
	MountPointsIncluded = "(^/home$)|(^/$)|(^/boot$)"

  • Included / Excluded: Same as above.

  • MountPointsIncluded: Regex for mount points to collect. Default includes /, /home, /boot.

10. Pod

This section configures how to fetch Pod information from kubelet to enable container/Pod-level labeling and metric isolation.

# Pod Configuration
#
# Configure these parameters for fetching pods from kubelet.
#
# - KubeletReadOnlyPort
# The KubeletReadOnlyPort is kubelet read-only port for the Kubelet to serve on with
# no authentication/authorization. The port number must be between 1 and 65535, inclusive.
# Setting this field to 0 disables fetching pods from kubelet read-only service.
# Default: 10255
#
# - KubeletAuthorizedPort
# The port is the HTTPs port of the kubelet. The port number must be between 1 and 65535,
# inclusive. Setting this field to 0 disables fetching pods from kubelet HTTPS port.
# Default: 10250
#
# - KubeletClientCertPath
# https://kubernetes.io/docs/setup/best-practices/certificates/
#
# Client certificate and private key file name. One file or two files:
# "/path/to/xxx-kubelet-client.crt,/path/to/xxx-kubelet-client.key",
# "/path/to/kubelet-client-current.pem"
#
# You can disable this kubelet fetching pods, for bare metal service, by
# KubeletReadOnlyPort = 0, and KubeletAuthorizedPort = 0.
#
[Pod]
	KubeletClientCertPath = "/etc/kubernetes/pki/apiserver-kubelet-client.crt,/etc/kubernetes/pki/apiserver-kubelet-client.key"

  • KubeletReadOnlyPort: Kubelet read-only port.

    Default: 10255. Set to 0 to disable this method.

  • KubeletAuthorizedPort: Kubelet HTTPS authorized port.

    Default: 10250. Set to 0 to disable.

  • KubeletClientCertPath: Path to kubelet client certificate and private key. Supports comma-separated files or single PEM file.

    Description: Used for mTLS authentication on the HTTPS port. In non-Kubernetes (bare-metal) environments, set both ports to 0 to disable Pod fetching.

11. CLI Flags

huatuo-bamai supports the following command-line flags:

huatuo-bamai --region <region> [options]
Flag Description Default
--config Configuration file name huatuo-bamai.conf
--config-dir Configuration file directory conf
--bpf-dir BPF object file directory bpf
--tools-bin-dir Tracing tool binary directory bin
--region Deployment region (required) -
--disable-kubelet Disable kubelet Pod fetching false
--disable-storage Disable storage backends false
--enable-cgroup Enable self cgroup resource limits (disabled by default) false
--disable-tracing Disable specified tracing modules (may be repeated) -
--log-debug Force log level to Debug false
--dry-run Load-only test; exit gracefully after startup false
--procfs-prefix procfs mount point prefix -

12. Configuration Override Precedence

When the same configuration item is set in both command-line flags and the configuration file, the following precedence applies:

CLI flag > Configuration file > Built-in default

Specific rules:

  1. Log level: --log-debug > config file [Log] Level > built-in default Info

    • --log-debug has the highest priority and forces the log level to Debug regardless of the Level value in the configuration file.
    • An explicit Level in the configuration file overrides the built-in default.
    • If neither is set, the default Info is used.

  2. Tracing blacklist: --disable-tracing is merged with the configuration file BlackList (they complement each other rather than override).

  3. Other boolean switches (--disable-kubelet, --disable-storage): When explicitly set on the command line, they override the configuration file.

13. Best Practices and Important Notes

  • Resource Control: Kubernetes uses Pod resources and systemd uses service limits. Use --enable-cgroup and [Runtime] only for direct execution without an external manager.
  • Storage Choice: For small-scale deployments, prefer [Storage.LocalFile] for local troubleshooting. For large clusters, configure Elasticsearch for centralized storage and querying.
  • AutoTracing Tuning: Adjust thresholds based on workload characteristics. Thresholds that are too low cause frequent triggering; thresholds that are too high may miss issues. Validate gradually in a test environment.
  • Security: Use strong passwords for ES configuration and consider enabling HTTPS. Avoid hard-coding sensitive information in the configuration file.
  • Compatibility: Configuration parameters may be affected by kernel version and hardware environment. Always verify with the official HUATUO documentation for your specific setup.

By properly configuring huatuo-bamai.conf, you can fully leverage HUATUO’s capabilities in kernel-level anomaly detection and intelligent tracing, significantly improving observability and troubleshooting efficiency in cloud-native systems.

If you need deeper customization for a specific scenario, feel free to provide more details about your environment.

4.2 - huatuo-apiserver Configuration

1. Overview

huatuo-apiserver uses a strictly decoded TOML configuration file. Unknown or obsolete options prevent startup. Commented options use the built-in defaults shown below.

2. Logging and Runtime Limits

huatuo-apiserver does not create its own cgroup by default. The [Runtime] section applies only when --enable-cgroup is explicitly passed; Kubernetes and systemd deployments should use their native resource controls.

# Log Configuration
[Log]
    # - Level
    # The log level for huatuo-apiserver: Debug, Info, Warn, Error, Panic.
    # Default: Info
    #
    # Level = "Info"

# Runtime limits for the huatuo-apiserver process.
[Runtime]
    # - CPULimitCores
    # CPU limit in cores.
    # Default: 20
    #
    # - MemoryLimitMiB
    # Memory limit in MiB.
    # Default: 4096
    #
    # CPULimitCores = 20
    # MemoryLimitMiB = 4096
  • Log.Level supports Debug, Info, Warn, Error, and Panic.
  • CPULimitCores limits the API server process in CPU cores.
  • MemoryLimitMiB limits the API server process in MiB.

All resource limits must be greater than zero. --log-debug overrides Log.Level.

3. HTTP Server

# HTTP server configuration.
[APIServer]
    # - ListenAddress
    # Listen address in "host:port" form.
    # Default: ":12740"
    #
    # ListenAddress = ":12740"

    # Request rate limiting.
    [APIServer.RateLimit]
        # - RequestsPerSecond
        # Maximum process-wide request rate per second.
        # Default: 200
        #
        # - Burst
        # Maximum process-wide request burst.
        # Default: 200
        #
        # RequestsPerSecond = 200
        # Burst = 200

ListenAddress uses host:port form. An empty host listens on all interfaces. RateLimit is a process-wide token bucket; both values must be positive. HTTP timeouts and request-size limits are fixed service safeguards and are not user configurable.

4. Jobs and Agent Communication

# Job persistence.
[Jobs]
    # - StoreDSN
    # SQLite DSN. Relative paths are resolved from this file's directory.
    # Default: "jobs.db"
    #
    # StoreDSN = "jobs.db"

    # Profiling and tracing retain independent quotas because their resource
    # costs and expected concurrency differ.
    [Jobs.Profiling]
        # - MaxConcurrentPerHost
        # Maximum concurrent profiling jobs on one host.
        # Default: 3
        #
        # - MaxConcurrent
        # Maximum concurrent profiling jobs across all hosts.
        # Default: 500
        #
        # MaxConcurrentPerHost = 3
        # MaxConcurrent = 500

    [Jobs.Tracing]
        # - MaxConcurrentPerHost
        # Maximum concurrent tracing jobs on one host.
        # Default: 5
        #
        # - MaxConcurrent
        # Maximum concurrent tracing jobs across all hosts.
        # Default: 1000
        #
        # MaxConcurrentPerHost = 5
        # MaxConcurrent = 1000

# huatuo-bamai Agent HTTP client configuration.
[Agent]
    # - HTTPPort
    # Agent HTTP server port.
    # Default: 19704
    #
    # - RequestTimeoutSeconds
    # Timeout in seconds for one Agent HTTP request.
    # Default: 10
    #
    # - StatusPollingIntervalSeconds
    # Interval in seconds between job status requests.
    # Default: 5
    #
    # - MaxConsecutiveStatusPollingErrors
    # Maximum consecutive status request errors before a job fails.
    # Default: 3
    #
    # HTTPPort = 19704
    # RequestTimeoutSeconds = 10
    # StatusPollingIntervalSeconds = 5
    # MaxConsecutiveStatusPollingErrors = 3

StoreDSN is the SQLite data source for durable job state. Relative paths are resolved from the configuration directory.

Profiling and tracing use the same quota model but retain independent values. Their resource cost and expected concurrency differ, so a shared limit would allow one workload to starve the other.

Agent request retries use internal client defaults. Public configuration only exposes the Agent port, request timeout, polling interval, and failure threshold.

During shutdown, the API server leaves active Agent tasks running and logs their identifiers and target information. A replacement API server recovers their persisted pending or running state and resumes monitoring.

5. Elasticsearch/OpenSearch

# Optional Elasticsearch/OpenSearch backend for querying profiling data.
[Elasticsearch]
    # Address, Username, and Password must be configured together to enable
    # this backend.
    #
    # - Address
    # Elasticsearch or OpenSearch HTTP address.
    #
    # - Username
    # Elasticsearch or OpenSearch username.
    #
    # - Password
    # Elasticsearch or OpenSearch password.
    #
    # - Index
    # Index containing huatuo-bamai profiling data.
    # Default: "huatuo_bamai"
    #
    # Address = "https://elasticsearch.example.com:9200"
    # Username = "huatuo-apiserver"
    # Password = "REPLACE_WITH_STRONG_PASSWORD"
    # Index = "huatuo_bamai"

Storage is optional. Address, Username, and Password must either all be empty or all be configured. Index defaults to huatuo_bamai and must match the collector storage index. When disabled, raw-profile and flame graph query routes are not registered.

6. Authentication and Authorization

# Authentication configuration.
[Auth]
    # - ID
    # Stable principal identifier stored with jobs.
    #
    # - BearerToken
    # Secret used only to authenticate requests. IDs and tokens must be unique.
    #
    # - Admin
    # Whether the principal has unrestricted API access.
    #
    # - Permissions
    # API method and path patterns granted to a restricted principal.
    #
    # Administrator example:
    # [[Auth.Users]]
    #     ID = "administrator"
    #     BearerToken = "REPLACE_WITH_RANDOM_HEX"
    #     Admin = true
    #
    # Restricted example:
    # [[Auth.Users]]
    #     ID = "huatuo-front"
    #     BearerToken = "REPLACE_WITH_ANOTHER_RANDOM_HEX"
    #     Permissions = [
    #         "GET /v1/traces",
    #         "GET /v1/traces/**",
    #         "GET /v1/profiles",
    #         "GET /v1/profiles/**",
    #     ]
  • ID is the required stable principal identifier stored with jobs.
  • BearerToken is a required secret used only to authenticate requests.
  • Admin grants access to all routes and ignores Permissions.
  • Permissions is required for non-admin users. Entries may be path-only or prefixed with an HTTP method. * matches one path segment and ** matches a suffix.

IDs and bearer tokens must each be unique. Rotating a bearer token does not change job ownership because tokens are never used as principal IDs.

/healthz, /readyz, /metrics, and /version are public. /debug/pprof/** and /v1/profiles/flamegraph/** require an administrator.

7. Profiling

# Profiling subprocess configuration.
[Profiling]
    # - AggregationIntervalSeconds
    # Aggregation interval in seconds. Must be greater than 0 and less than
    # 1200.
    # Default: 10
    #
    # - MaxConcurrentProfilerProcesses
    # Maximum concurrent third-party profiler processes. A value of 0 disables
    # this process limit.
    # Default: 10
    #
    # - DashboardBaseURL
    # Optional dashboard base URL. Result URLs are omitted when empty.
    # Default: empty
    #
    # AggregationIntervalSeconds = 10
    # MaxConcurrentProfilerProcesses = 10
    # DashboardBaseURL = "https://grafana.example.com/d"
  • AggregationIntervalSeconds must be greater than zero and less than 1200.
  • MaxConcurrentProfilerProcesses limits third-party profiler subprocesses. Zero disables this process limit; negative values are invalid.
  • DashboardBaseURL is optional and must use HTTP or HTTPS when configured. Completed jobs omit a result URL when it is empty.

The Agent task timeout is derived from the requested profiling duration plus one aggregation interval. It is not separately configurable.

5 - Key Feature

5.1 - Kernel-Wide Insight

Metrics supported in the current version:

CPU

Scheduling

The following metrics allow observation of process scheduling latency, i.e., the time from when a process becomes runnable (placed in the run queue) until it actually starts executing on the CPU.

# HELP huatuo_bamai_runqlat_container_latency cpu run queue latency for the containers
# TYPE huatuo_bamai_runqlat_container_latency gauge
huatuo_bamai_runqlat_container_latency{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev",zone="0"} 226
huatuo_bamai_runqlat_container_latency{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev",zone="1"} 0
huatuo_bamai_runqlat_container_latency{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev",zone="2"} 0
huatuo_bamai_runqlat_container_latency{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev",zone="3"} 0

# HELP huatuo_bamai_runqlat_latency cpu run queue latency for the host
# TYPE huatuo_bamai_runqlat_latency gauge
huatuo_bamai_runqlat_latency{host="hostname",region="dev",zone="0"} 35100
huatuo_bamai_runqlat_latency{host="hostname",region="dev",zone="1"} 0
huatuo_bamai_runqlat_latency{host="hostname",region="dev",zone="2"} 0
huatuo_bamai_runqlat_latency{host="hostname",region="dev",zone="3"} 0
Metric Description Unit Target Source Labels
runqlat_container_latency scheduling latency histogram buckets:
zone0: 0–10 ms
zone1: 10–20 ms
zone2: 20–50 ms
zone3: 50+ ms		 count Container eBPF container_host, container_hostnamespace, container_level, container_name, container_type, host, region, zone
runqlat_latency scheduling latency histogram buckets:
zone0, 0~10ms
zone1, 10-20ms
zone2, 20-50ms
zone3, 50+ms		 count Host eBPF host, region, zone

SoftIRQ

SoftIRQ response latency on different CPUs (currently only NET_RX and NET_TX are collected).

# HELP huatuo_bamai_softirq_latency softirq latency
# TYPE huatuo_bamai_softirq_latency gauge
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_RX",zone="0"} 125
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_RX",zone="1"} 2
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_RX",zone="2"} 0
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_RX",zone="3"} 0
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_TX",zone="0"} 0
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_TX",zone="1"} 0
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_TX",zone="2"} 0
huatuo_bamai_softirq_latency{cpuid="0",host="hostname",region="dev",type="NET_TX",zone="3"} 0
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_RX",zone="0"} 110
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_RX",zone="1"} 0
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_RX",zone="2"} 1
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_RX",zone="3"} 0
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_TX",zone="0"} 0
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_TX",zone="1"} 0
huatuo_bamai_softirq_latency{cpuid="1",host="hostname",region="dev",type="NET_TX",zone="2"} 0
Metric Description Unit Target Source Labels
softirq_latency SoftIRQ response latency histogram buckets:
zone0, 0-10us
zone1, 10-100us
zone2, 100-1000us
zone3, 1+ms		 count Host eBPF cpuid, host, region, type, zone

Utilization

Metrics showing CPU usage on hosts and containers (Prometheus format):

# HELP huatuo_bamai_cpu_util_sys cpu sys for the host
# TYPE huatuo_bamai_cpu_util_sys gauge
huatuo_bamai_cpu_util_sys{host="hostname",region="dev"} 6.268857848549965e-06
# HELP huatuo_bamai_cpu_util_total cpu total for the host
# TYPE huatuo_bamai_cpu_util_total gauge
huatuo_bamai_cpu_util_total{host="hostname",region="dev"} 1.7736934944144352e-05
# HELP huatuo_bamai_cpu_util_usr cpu usr for the host
# TYPE huatuo_bamai_cpu_util_usr gauge
huatuo_bamai_cpu_util_usr{host="hostname",region="dev"} 1.1468077095594387e-05

# HELP huatuo_bamai_cpu_util_container_sys cpu sys for the containers
# TYPE huatuo_bamai_cpu_util_container_sys gauge
huatuo_bamai_cpu_util_container_sys{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1.6708593420881415e-07
# HELP huatuo_bamai_cpu_util_container_total cpu total for the containers
# TYPE huatuo_bamai_cpu_util_container_total gauge
huatuo_bamai_cpu_util_container_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 3.379584661890774e-07
# HELP huatuo_bamai_cpu_util_container_usr cpu usr for the containers
# TYPE huatuo_bamai_cpu_util_container_usr gauge
huatuo_bamai_cpu_util_container_usr{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1.7087253017325962e-07
Metric Description Unit Target Labels
cpu_util_sys CPU system (kernel) time % % Host host, region
cpu_util_usr CPU user time % % Host host, region
cpu_util_total CPU total utilization % % Host host, region
cpu_util_container_sys Container CPU system time % % Container container_host,container_hostnamespace,container_level,container_name,container_type,host,region
cpu_util_container_usr Container CPU user time % % Container container_host,container_hostnamespace,container_level,container_name,container_type,host,region
cpu_util_container_total Container CPU total % % Container container_host,container_hostnamespace,container_level,container_name,container_type,host,region

Allocation

Container CPU resource configuration:

# HELP huatuo_bamai_cpu_util_container_cores cpu core number for the containers
# TYPE huatuo_bamai_cpu_util_container_cores gauge
huatuo_bamai_cpu_util_container_cores{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="Burstable",container_name="coredns",container_type="Normal",host="hostname",region="dev"} 6
Metric Description Unit Target Labels
cpu_util_container_cores Number of CPU cores cores Container (same as above)

Contention

Metrics reflecting container throttling and contention:

# HELP huatuo_bamai_cpu_stat_container_nr_throttled throttle nr for the containers
# TYPE huatuo_bamai_cpu_stat_container_nr_throttled gauge
huatuo_bamai_cpu_stat_container_nr_throttled{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_cpu_stat_container_throttled_time throttle time for the containers
# TYPE huatuo_bamai_cpu_stat_container_throttled_time gauge
huatuo_bamai_cpu_stat_container_throttled_time{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
Metric Description Unit Target Labels
cpu_stat_container_nr_throttled Number of times the cgroup was throttled count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
cpu_stat_container_throttled_time Total time the cgroup was throttled nanoseconds Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Ref:

The following metric is available when the kernel exports wait_sum:

# HELP huatuo_bamai_cpu_stat_container_wait_sum_percent percentage of CFS cgroup schedulable time spent waiting on the parent runqueue (requires kernel.sched_schedstats=1)
# TYPE huatuo_bamai_cpu_stat_container_wait_sum_percent gauge
huatuo_bamai_cpu_stat_container_wait_sum_percent{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0

Burst Behavior

Metrics showing burst usage beyond quota:

# HELP huatuo_bamai_cpu_stat_container_nr_bursts burst nr for the containers
# TYPE huatuo_bamai_cpu_stat_container_nr_bursts gauge
huatuo_bamai_cpu_stat_container_nr_bursts{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
huatuo_bamai_cpu_stat_container_nr_bursts{container_host="coredns-855c4dd65d-mnpqf",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_cpu_stat_container_burst_time burst time for the containers
# TYPE huatuo_bamai_cpu_stat_container_burst_time gauge
huatuo_bamai_cpu_stat_container_burst_time{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
huatuo_bamai_cpu_stat_container_burst_time{container_host="coredns-855c4dd65d-mnpqf",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
Metric Description Unit Target Labels
cpu_stat_container_burst_time Cumulative wall-clock time spent above quota across all periods nanoseconds Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
cpu_stat_container_nr_bursts Number of periods in which usage exceeded quota count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Load

Load average and runnable/uninterruptible task counts:

# HELP huatuo_bamai_loadavg_load1 system load average, 1 minute
# TYPE huatuo_bamai_loadavg_load1 gauge
huatuo_bamai_loadavg_load1{host="hostname",region="dev"} 0.3
# HELP huatuo_bamai_loadavg_load15 system load average, 15 minutes
# TYPE huatuo_bamai_loadavg_load15 gauge
huatuo_bamai_loadavg_load15{host="hostname",region="dev"} 0.22
# HELP huatuo_bamai_loadavg_load5 system load average, 5 minutes
# TYPE huatuo_bamai_loadavg_load5 gauge
huatuo_bamai_loadavg_load5{host="hostname",region="dev"} 0.2
# HELP huatuo_bamai_loadavg_container_nr_running nr_running of container
# TYPE huatuo_bamai_loadavg_container_nr_running gauge
huatuo_bamai_loadavg_container_nr_running{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_loadavg_container_nr_uninterruptible nr_uninterruptible of container
# TYPE huatuo_bamai_loadavg_container_nr_uninterruptible gauge
huatuo_bamai_loadavg_container_nr_uninterruptible{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
Metric Description Unit Target Labels
loadavg_load1 1-minute system load average count Host host, region
loadavg_load5 5-minute system load average count Host host, region
loadavg_load15 15-minute system load average count Host host, region
loadavg_container_container_nr_running Number of running tasks in container count Container host, region cgroup v1 only
loadavg_container_container_nr_uninterruptible Number of uninterruptible tasks in container count Container host, region cgroup v1 only

Memory System

Reclaim

Metrics showing time spent stalled due to memory reclaim/compaction:

# HELP huatuo_bamai_memory_free_allocpages_stall time stalled in alloc pages
# TYPE huatuo_bamai_memory_free_allocpages_stall gauge
huatuo_bamai_memory_free_allocpages_stall{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_free_compaction_stall time stalled in memory compaction
# TYPE huatuo_bamai_memory_free_compaction_stall gauge
huatuo_bamai_memory_free_compaction_stall{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_reclaim_container_directstall counter of cgroup reclaim when try_charge
# TYPE huatuo_bamai_memory_reclaim_container_directstall gauge
huatuo_bamai_memory_reclaim_container_directstall{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
Metric Description Unit Target Source Labels
memory_free_allocpages_stall Time stalled waiting for page allocation nanoseconds Host eBPF host, region
memory_free_compaction_stall Time stalled in memory compaction nanoseconds Host eBPF host, region
memory_reclaim_container_directstall Number of direct reclaim events in container count Container eBPF container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Note: The memory_others_container_directstall_time, memory_others_container_asyncreclaim_time, and memory_others_container_local_direct_reclaim_time metrics read memory cgroup extension interfaces provided by the Didi Cloud custom kernel (memory.directstall_stat, memory.asynreclaim_stat, memory.local_direct_reclaim_time). Mainline and common distribution kernels do not expose these interfaces, so these metrics are simply not emitted there — this is expected, and no extra kernel module can provide them. To observe container direct reclaim behavior on standard kernels, use the eBPF-based memory_reclaim_container_directstall listed above.

State

From cgroup memory.stat:

# HELP huatuo_bamai_memory_vmstat_container_active_anon cgroup memory.stat active_anon
# TYPE huatuo_bamai_memory_vmstat_container_active_anon gauge
huatuo_bamai_memory_vmstat_container_active_anon{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1.47456e+07
# HELP huatuo_bamai_memory_vmstat_container_active_file cgroup memory.stat active_file
# TYPE huatuo_bamai_memory_vmstat_container_active_file gauge
huatuo_bamai_memory_vmstat_container_active_file{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 2.3617536e+07
# HELP huatuo_bamai_memory_vmstat_container_file_dirty cgroup memory.stat file_dirty
# TYPE huatuo_bamai_memory_vmstat_container_file_dirty gauge
huatuo_bamai_memory_vmstat_container_file_dirty{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_file_writeback cgroup memory.stat file_writeback
# TYPE huatuo_bamai_memory_vmstat_container_file_writeback gauge
huatuo_bamai_memory_vmstat_container_file_writeback{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_inactive_anon cgroup memory.stat inactive_anon
# TYPE huatuo_bamai_memory_vmstat_container_inactive_anon gauge
huatuo_bamai_memory_vmstat_container_inactive_anon{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_inactive_file cgroup memory.stat inactive_file
# TYPE huatuo_bamai_memory_vmstat_container_inactive_file gauge
huatuo_bamai_memory_vmstat_container_inactive_file{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 65536
# HELP huatuo_bamai_memory_vmstat_container_pgdeactivate cgroup memory.stat pgdeactivate
# TYPE huatuo_bamai_memory_vmstat_container_pgdeactivate gauge
huatuo_bamai_memory_vmstat_container_pgdeactivate{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_pgrefill cgroup memory.stat pgrefill
# TYPE huatuo_bamai_memory_vmstat_container_pgrefill gauge
huatuo_bamai_memory_vmstat_container_pgrefill{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_pgscan_direct cgroup memory.stat pgscan_direct
# TYPE huatuo_bamai_memory_vmstat_container_pgscan_direct gauge
huatuo_bamai_memory_vmstat_container_pgscan_direct{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_pgscan_kswapd cgroup memory.stat pgscan_kswapd
# TYPE huatuo_bamai_memory_vmstat_container_pgscan_kswapd gauge
huatuo_bamai_memory_vmstat_container_pgscan_kswapd{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_pgsteal_direct cgroup memory.stat pgsteal_direct
# TYPE huatuo_bamai_memory_vmstat_container_pgsteal_direct gauge
huatuo_bamai_memory_vmstat_container_pgsteal_direct{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_pgsteal_kswapd cgroup memory.stat pgsteal_kswapd
# TYPE huatuo_bamai_memory_vmstat_container_pgsteal_kswapd gauge
huatuo_bamai_memory_vmstat_container_pgsteal_kswapd{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_shmem cgroup memory.stat shmem
# TYPE huatuo_bamai_memory_vmstat_container_shmem gauge
huatuo_bamai_memory_vmstat_container_shmem{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_shmem_thp cgroup memory.stat shmem_thp
# TYPE huatuo_bamai_memory_vmstat_container_shmem_thp gauge
huatuo_bamai_memory_vmstat_container_shmem_thp{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_container_unevictable cgroup memory.stat unevictable
# TYPE huatuo_bamai_memory_vmstat_container_unevictable gauge
huatuo_bamai_memory_vmstat_container_unevictable{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
Metric Description Unit Target Labels
memory_vmstat_container_active_file Active file-backed memory Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_vmstat_container_active_anon Active anonymous memory Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_vmstat_container_inactive_file Inactive file-backed memory Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_vmstat_container_inactive_anon Inactive anonymous memory Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_vmstat_container_file_dirty Dirty file pages not yet written back Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_vmstat_container_file_writeback File pages currently being written back Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_vmstat_container_unevictable Unevictable pages (mlocked, hugetlbfs, etc.) Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
… (pgscan_direct, pgsteal_kswapd, etc.) Standard vmstat reclaim / scanning counters Bytes Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Host memory state.

# HELP huatuo_bamai_memory_vmstat_allocstall_device /proc/vmstat allocstall_device
# TYPE huatuo_bamai_memory_vmstat_allocstall_device gauge
huatuo_bamai_memory_vmstat_allocstall_device{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_allocstall_dma /proc/vmstat allocstall_dma
# TYPE huatuo_bamai_memory_vmstat_allocstall_dma gauge
huatuo_bamai_memory_vmstat_allocstall_dma{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_allocstall_dma32 /proc/vmstat allocstall_dma32
# TYPE huatuo_bamai_memory_vmstat_allocstall_dma32 gauge
huatuo_bamai_memory_vmstat_allocstall_dma32{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_allocstall_movable /proc/vmstat allocstall_movable
# TYPE huatuo_bamai_memory_vmstat_allocstall_movable gauge
huatuo_bamai_memory_vmstat_allocstall_movable{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_allocstall_normal /proc/vmstat allocstall_normal
# TYPE huatuo_bamai_memory_vmstat_allocstall_normal gauge
huatuo_bamai_memory_vmstat_allocstall_normal{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_nr_active_anon /proc/vmstat nr_active_anon
# TYPE huatuo_bamai_memory_vmstat_nr_active_anon gauge
huatuo_bamai_memory_vmstat_nr_active_anon{host="hostname",region="dev"} 155449
# HELP huatuo_bamai_memory_vmstat_nr_active_file /proc/vmstat nr_active_file
# TYPE huatuo_bamai_memory_vmstat_nr_active_file gauge
huatuo_bamai_memory_vmstat_nr_active_file{host="hostname",region="dev"} 212425
# HELP huatuo_bamai_memory_vmstat_nr_dirty /proc/vmstat nr_dirty
# TYPE huatuo_bamai_memory_vmstat_nr_dirty gauge
huatuo_bamai_memory_vmstat_nr_dirty{host="hostname",region="dev"} 19047
# HELP huatuo_bamai_memory_vmstat_nr_dirty_background_threshold /proc/vmstat nr_dirty_background_threshold
# TYPE huatuo_bamai_memory_vmstat_nr_dirty_background_threshold gauge
huatuo_bamai_memory_vmstat_nr_dirty_background_threshold{host="hostname",region="dev"} 379858
# HELP huatuo_bamai_memory_vmstat_nr_dirty_threshold /proc/vmstat nr_dirty_threshold
# TYPE huatuo_bamai_memory_vmstat_nr_dirty_threshold gauge
huatuo_bamai_memory_vmstat_nr_dirty_threshold{host="hostname",region="dev"} 760646
# HELP huatuo_bamai_memory_vmstat_nr_free_pages /proc/vmstat nr_free_pages
# TYPE huatuo_bamai_memory_vmstat_nr_free_pages gauge
huatuo_bamai_memory_vmstat_nr_free_pages{host="hostname",region="dev"} 3.20535e+06
# HELP huatuo_bamai_memory_vmstat_nr_inactive_anon /proc/vmstat nr_inactive_anon
# TYPE huatuo_bamai_memory_vmstat_nr_inactive_anon gauge
huatuo_bamai_memory_vmstat_nr_inactive_anon{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_nr_inactive_file /proc/vmstat nr_inactive_file
# TYPE huatuo_bamai_memory_vmstat_nr_inactive_file gauge
huatuo_bamai_memory_vmstat_nr_inactive_file{host="hostname",region="dev"} 428518
# HELP huatuo_bamai_memory_vmstat_nr_mlock /proc/vmstat nr_mlock
# TYPE huatuo_bamai_memory_vmstat_nr_mlock gauge
huatuo_bamai_memory_vmstat_nr_mlock{host="hostname",region="dev"} 6821
# HELP huatuo_bamai_memory_vmstat_nr_shmem /proc/vmstat nr_shmem
# TYPE huatuo_bamai_memory_vmstat_nr_shmem gauge
huatuo_bamai_memory_vmstat_nr_shmem{host="hostname",region="dev"} 541
# HELP huatuo_bamai_memory_vmstat_nr_shmem_hugepages /proc/vmstat nr_shmem_hugepages
# TYPE huatuo_bamai_memory_vmstat_nr_shmem_hugepages gauge
huatuo_bamai_memory_vmstat_nr_shmem_hugepages{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_nr_shmem_pmdmapped /proc/vmstat nr_shmem_pmdmapped
# TYPE huatuo_bamai_memory_vmstat_nr_shmem_pmdmapped gauge
huatuo_bamai_memory_vmstat_nr_shmem_pmdmapped{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_nr_slab_reclaimable /proc/vmstat nr_slab_reclaimable
# TYPE huatuo_bamai_memory_vmstat_nr_slab_reclaimable gauge
huatuo_bamai_memory_vmstat_nr_slab_reclaimable{host="hostname",region="dev"} 22322
# HELP huatuo_bamai_memory_vmstat_nr_slab_unreclaimable /proc/vmstat nr_slab_unreclaimable
# TYPE huatuo_bamai_memory_vmstat_nr_slab_unreclaimable gauge
huatuo_bamai_memory_vmstat_nr_slab_unreclaimable{host="hostname",region="dev"} 24168
# HELP huatuo_bamai_memory_vmstat_nr_unevictable /proc/vmstat nr_unevictable
# TYPE huatuo_bamai_memory_vmstat_nr_unevictable gauge
huatuo_bamai_memory_vmstat_nr_unevictable{host="hostname",region="dev"} 6839
# HELP huatuo_bamai_memory_vmstat_nr_writeback /proc/vmstat nr_writeback
# TYPE huatuo_bamai_memory_vmstat_nr_writeback gauge
huatuo_bamai_memory_vmstat_nr_writeback{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_nr_writeback_temp /proc/vmstat nr_writeback_temp
# TYPE huatuo_bamai_memory_vmstat_nr_writeback_temp gauge
huatuo_bamai_memory_vmstat_nr_writeback_temp{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_numa_pages_migrated /proc/vmstat numa_pages_migrated
# TYPE huatuo_bamai_memory_vmstat_numa_pages_migrated gauge
huatuo_bamai_memory_vmstat_numa_pages_migrated{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgdeactivate /proc/vmstat pgdeactivate
# TYPE huatuo_bamai_memory_vmstat_pgdeactivate gauge
huatuo_bamai_memory_vmstat_pgdeactivate{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgrefill /proc/vmstat pgrefill
# TYPE huatuo_bamai_memory_vmstat_pgrefill gauge
huatuo_bamai_memory_vmstat_pgrefill{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgscan_direct /proc/vmstat pgscan_direct
# TYPE huatuo_bamai_memory_vmstat_pgscan_direct gauge
huatuo_bamai_memory_vmstat_pgscan_direct{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgscan_direct_throttle /proc/vmstat pgscan_direct_throttle
# TYPE huatuo_bamai_memory_vmstat_pgscan_direct_throttle gauge
huatuo_bamai_memory_vmstat_pgscan_direct_throttle{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgscan_kswapd /proc/vmstat pgscan_kswapd
# TYPE huatuo_bamai_memory_vmstat_pgscan_kswapd gauge
huatuo_bamai_memory_vmstat_pgscan_kswapd{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgsteal_direct /proc/vmstat pgsteal_direct
# TYPE huatuo_bamai_memory_vmstat_pgsteal_direct gauge
huatuo_bamai_memory_vmstat_pgsteal_direct{host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_vmstat_pgsteal_kswapd /proc/vmstat pgsteal_kswapd
# TYPE huatuo_bamai_memory_vmstat_pgsteal_kswapd gauge
huatuo_bamai_memory_vmstat_pgsteal_kswapd{host="hostname",region="dev"} 0

Standard kernel vmstat counters (see kernel documentation for full details):

  • nr_free_pages: total free pages in buddy allocator
  • nr_active_anon / nr_inactive_anon: active / inactive anonymous pages
  • nr_active_file / nr_inactive_file: active / inactive file pages
  • nr_dirty / nr_writeback: dirty / under writeback pages
  • nr_dirty_threshold / nr_dirty_background_threshold: dirty page writeback thresholds
  • pgscan_kswapd / pgsteal_kswapd / … : reclaim & scanning statistics
  • allocstall_*: stalls due to allocation failure in different zones
  • numa_hit / numa_miss / numa_foreign / numa_local / numa_other: NUMA allocation statistics

Ref:

Events

From memory.events:

# HELP huatuo_bamai_memory_events_container_high memory events high
# TYPE huatuo_bamai_memory_events_container_high gauge
huatuo_bamai_memory_events_container_high{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_events_container_low memory events low
# TYPE huatuo_bamai_memory_events_container_low gauge
huatuo_bamai_memory_events_container_low{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_events_container_max memory events max
# TYPE huatuo_bamai_memory_events_container_max gauge
huatuo_bamai_memory_events_container_max{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_events_container_oom memory events oom
# TYPE huatuo_bamai_memory_events_container_oom gauge
huatuo_bamai_memory_events_container_oom{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_events_container_oom_group_kill memory events oom_group_kill
# TYPE huatuo_bamai_memory_events_container_oom_group_kill gauge
huatuo_bamai_memory_events_container_oom_group_kill{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_memory_events_container_oom_kill memory events oom_kill
# TYPE huatuo_bamai_memory_events_container_oom_kill gauge
huatuo_bamai_memory_events_container_oom_kill{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
Metric Description Unit Target Labels
memory_events_container_low Pages reclaimed below memory.low due to system pressure count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_events_container_high Times usage exceeded memory.high (throttling / direct reclaim triggered) count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_events_container_max Times approaching or hitting memory.max count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_events_container_oom Times OOM path entered due to memory.max count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_events_container_oom_kill Number of processes killed by OOM killer in cgroup count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
memory_events_container_oom_group_kill Number of times entire cgroup killed by OOM count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Buddyinfo

Free page block distribution per node/zone/order (from /proc/buddyinfo):

# HELP huatuo_bamai_memory_buddyinfo_blocks buddy info
# TYPE huatuo_bamai_memory_buddyinfo_blocks gauge
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="0",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="0",region="dev",zone="DMA32"} 3
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="0",region="dev",zone="Normal"} 7
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="1",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="1",region="dev",zone="DMA32"} 1
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="1",region="dev",zone="Normal"} 36
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="10",region="dev",zone="DMA"} 2
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="10",region="dev",zone="DMA32"} 743
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="10",region="dev",zone="Normal"} 2265
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="2",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="2",region="dev",zone="DMA32"} 3
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="2",region="dev",zone="Normal"} 10
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="3",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="3",region="dev",zone="DMA32"} 2
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="3",region="dev",zone="Normal"} 224
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="4",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="4",region="dev",zone="DMA32"} 1
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="4",region="dev",zone="Normal"} 376
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="5",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="5",region="dev",zone="DMA32"} 1
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="5",region="dev",zone="Normal"} 165
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="6",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="6",region="dev",zone="DMA32"} 3
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="6",region="dev",zone="Normal"} 118
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="7",region="dev",zone="DMA"} 0
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="7",region="dev",zone="DMA32"} 4
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="7",region="dev",zone="Normal"} 172
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="8",region="dev",zone="DMA"} 1
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="8",region="dev",zone="DMA32"} 4
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="8",region="dev",zone="Normal"} 35
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="9",region="dev",zone="DMA"} 2
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="9",region="dev",zone="DMA32"} 4
huatuo_bamai_memory_buddyinfo_blocks{host="hostname",node="0",order="9",region="dev",zone="Normal"} 25
Metric Description Unit Target Labels
memory_buddyinfo_blocks Shows number of free blocks of each order (2^order pages) in each zone. count Host procfs

Network

ARP

# HELP huatuo_bamai_arp_container_entries arp entries in container netns
# TYPE huatuo_bamai_arp_container_entries gauge
huatuo_bamai_arp_container_entries{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_arp_entries host init namespace
# TYPE huatuo_bamai_arp_entries gauge
huatuo_bamai_arp_entries{host="hostname",region="dev"} 5
# HELP huatuo_bamai_arp_total all entries in arp_cache for containers and host netns
# TYPE huatuo_bamai_arp_total gauge
huatuo_bamai_arp_total{host="hostname",region="dev"} 12
Metric Description Unit Scope Labels
arp_entries Number of ARP entries in the host’s network namespace count Host namespace host, region
arp_total Total number of ARP entries across all network namespaces on the host count Host host, region
arp_container_entries Number of ARP entries in the container’s network namespace count Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Qdisc

Qdisc (Queueing Discipline) is a key module in the Linux kernel networking subsystem. Monitoring this module provides clear visibility into network packet processing and latency behavior.

# HELP huatuo_bamai_netdev_qdisc_backlog Number of bytes currently in queue to be sent.
# TYPE huatuo_bamai_netdev_qdisc_backlog gauge
huatuo_bamai_netdev_qdisc_backlog{device="ens2",host="hostname",kind="fq_codel",region="dev"} 0
# HELP huatuo_bamai_netdev_qdisc_bytes_total Number of bytes sent.
# TYPE huatuo_bamai_netdev_qdisc_bytes_total counter
huatuo_bamai_netdev_qdisc_bytes_total{device="ens2",host="hostname",kind="fq_codel",region="dev"} 2.578235443e+09
# HELP huatuo_bamai_netdev_qdisc_current_queue_length Number of packets currently in queue to be sent.
# TYPE huatuo_bamai_netdev_qdisc_current_queue_length gauge
huatuo_bamai_netdev_qdisc_current_queue_length{device="ens2",host="hostname",kind="fq_codel",region="dev"} 0
# HELP huatuo_bamai_netdev_qdisc_drops_total Number of packet drops.
# TYPE huatuo_bamai_netdev_qdisc_drops_total counter
huatuo_bamai_netdev_qdisc_drops_total{device="ens2",host="hostname",kind="fq_codel",region="dev"} 0
# HELP huatuo_bamai_netdev_qdisc_overlimits_total Number of packet overlimits.
# TYPE huatuo_bamai_netdev_qdisc_overlimits_total counter
huatuo_bamai_netdev_qdisc_overlimits_total{device="ens2",host="hostname",kind="fq_codel",region="dev"} 0
# HELP huatuo_bamai_netdev_qdisc_packets_total Number of packets sent.
# TYPE huatuo_bamai_netdev_qdisc_packets_total counter
huatuo_bamai_netdev_qdisc_packets_total{device="ens2",host="hostname",kind="fq_codel",region="dev"} 6.867714e+06
# HELP huatuo_bamai_netdev_qdisc_requeues_total Number of packets dequeued, not transmitted, and requeued.
# TYPE huatuo_bamai_netdev_qdisc_requeues_total counter
huatuo_bamai_netdev_qdisc_requeues_total{device="ens2",host="hostname",kind="fq_codel",region="dev"} 0
Metric Description Unit Scope Labels
qdisc_backlog Bytes of packets currently queued for transmission (backlog) Bytes Host device, host, kind, region
qdisc_current_queue_length Number of packets currently queued count Host device, host, kind, region
qdisc_overlimits_total Total number of times the queue limit was exceeded count Host device, host, kind, region
qdisc_requeues_total Number of times packets were requeued due to temporary inability of the NIC/driver to transmit count Host device, host, kind, region
qdisc_drops_total Total number of packets actively dropped count Host device, host, kind, region
qdisc_bytes_total Total bytes transmitted Bytes Host device, host, kind, region
qdisc_packets_total Total number of packets transmitted count Host device, host, kind, region

Hardware

This metric tracks packets dropped by the network interface card (NIC) hardware in the receive (RX) path, typically due to buffer overflow, CRC errors, or other hardware-level issues.

# HELP huatuo_bamai_netdev_hw_rx_dropped count of packets dropped at hardware level
# TYPE huatuo_bamai_netdev_hw_rx_dropped gauge
huatuo_bamai_netdev_hw_rx_dropped{device="eth0",driver="mlx5_core",host="hostname",region="dev"} 0
Metric Description Unit Scope Labels
netdev_hw_rx_dropped Number of packets dropped by NIC hardware in the receive direction count Host eBPF

Netdev

# HELP huatuo_bamai_netdev_container_receive_bytes_total Network device statistic receive_bytes.
# TYPE huatuo_bamai_netdev_container_receive_bytes_total counter
huatuo_bamai_netdev_container_receive_bytes_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 6.4400018e+07
# HELP huatuo_bamai_netdev_container_receive_compressed_total Network device statistic receive_compressed.
# TYPE huatuo_bamai_netdev_container_receive_compressed_total counter
huatuo_bamai_netdev_container_receive_compressed_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_receive_dropped_total Network device statistic receive_dropped.
# TYPE huatuo_bamai_netdev_container_receive_dropped_total counter
huatuo_bamai_netdev_container_receive_dropped_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_receive_errors_total Network device statistic receive_errors.
# TYPE huatuo_bamai_netdev_container_receive_errors_total counter
huatuo_bamai_netdev_container_receive_errors_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_receive_fifo_total Network device statistic receive_fifo.
# TYPE huatuo_bamai_netdev_container_receive_fifo_total counter
huatuo_bamai_netdev_container_receive_fifo_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_receive_frame_total Network device statistic receive_frame.
# TYPE huatuo_bamai_netdev_container_receive_frame_total counter
huatuo_bamai_netdev_container_receive_frame_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_receive_multicast_total Network device statistic receive_multicast.
# TYPE huatuo_bamai_netdev_container_receive_multicast_total counter
huatuo_bamai_netdev_container_receive_multicast_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_receive_packets_total Network device statistic receive_packets.
# TYPE huatuo_bamai_netdev_container_receive_packets_total counter
huatuo_bamai_netdev_container_receive_packets_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 693155
# HELP huatuo_bamai_netdev_container_transmit_bytes_total Network device statistic transmit_bytes.
# TYPE huatuo_bamai_netdev_container_transmit_bytes_total counter
huatuo_bamai_netdev_container_transmit_bytes_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 6.2347911e+07
# HELP huatuo_bamai_netdev_container_transmit_carrier_total Network device statistic transmit_carrier.
# TYPE huatuo_bamai_netdev_container_transmit_carrier_total counter
huatuo_bamai_netdev_container_transmit_carrier_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_transmit_colls_total Network device statistic transmit_colls.
# TYPE huatuo_bamai_netdev_container_transmit_colls_total counter
huatuo_bamai_netdev_container_transmit_colls_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_transmit_compressed_total Network device statistic transmit_compressed.
# TYPE huatuo_bamai_netdev_container_transmit_compressed_total counter
huatuo_bamai_netdev_container_transmit_compressed_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_transmit_dropped_total Network device statistic transmit_dropped.
# TYPE huatuo_bamai_netdev_container_transmit_dropped_total counter
huatuo_bamai_netdev_container_transmit_dropped_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_transmit_errors_total Network device statistic transmit_errors.
# TYPE huatuo_bamai_netdev_container_transmit_errors_total counter
huatuo_bamai_netdev_container_transmit_errors_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_transmit_fifo_total Network device statistic transmit_fifo.
# TYPE huatuo_bamai_netdev_container_transmit_fifo_total counter
huatuo_bamai_netdev_container_transmit_fifo_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netdev_container_transmit_packets_total Network device statistic transmit_packets.
# TYPE huatuo_bamai_netdev_container_transmit_packets_total counter
huatuo_bamai_netdev_container_transmit_packets_total{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",device="eth0",host="hostname",region="dev"} 660218
Metric Description Unit Scope Labels
netdev_receive_bytes_total Total number of bytes successfully received count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_receive_packets_total Total number of packets successfully received count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_receive_compressed_total Number of compressed packets received count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_receive_frame_total Number of frame alignment errors on receive count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_receive_errors_total Total number of receive errors count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_receive_dropped_total Number of received packets dropped by kernel or driver (various reasons) count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_receive_fifo_total Number of receive FIFO/ring buffer overflow errors count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_bytes_total Total number of bytes successfully transmitted count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_packets_total Total number of packets successfully transmitted count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_errors_total Total number of transmit errors count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_dropped_total Number of packets dropped during transmission (queue full, policy, etc.) count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_fifo_total Number of transmit FIFO/ring buffer errors count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_carrier_total Number of carrier errors (link down or cable issues during transmission) count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region
netdev_transmit_compressed_total Number of compressed packets transmitted count Host, Container container_host, container_hostnamespace, container_level, container_name, container_type, host, region

Tcp Memory

From /proc/net/netstat

# HELP huatuo_bamai_tcp_memory_limit_pages tcp memory pages limit
# TYPE huatuo_bamai_tcp_memory_limit_pages gauge
huatuo_bamai_tcp_memory_limit_pages{host="hostname",region="dev"} 380526
# HELP huatuo_bamai_tcp_memory_usage_bytes tcp memory bytes usage
# TYPE huatuo_bamai_tcp_memory_usage_bytes gauge
huatuo_bamai_tcp_memory_usage_bytes{host="hostname",region="dev"} 0
# HELP huatuo_bamai_tcp_memory_usage_pages tcp memory pages usage
# TYPE huatuo_bamai_tcp_memory_usage_pages gauge
huatuo_bamai_tcp_memory_usage_pages{host="hostname",region="dev"} 0
# HELP huatuo_bamai_tcp_memory_usage_percent tcp memory usage percent
# TYPE huatuo_bamai_tcp_memory_usage_percent gauge
huatuo_bamai_tcp_memory_usage_percent{host="hostname",region="dev"} 0

TcpExt

Linux-specific TCP extended statistics (see kernel Documentation/networking/snmp_counter.rst):

  • TcpExtListenDrops / ListenOverflows: drops due to full listen queue
  • TcpExtSyncookiesSent / Recv / Failed: SYN cookies handling
  • TcpExtTCPRcvCoalesce: packets coalesced in receive path
  • TcpExtTCPAutoCorking: packets corked automatically
  • TcpExtTCPOrigDataSent: original data bytes sent (excluding retransmits)
  • TcpExtTCPLossProbes / TCPLossProbeRecovery: tail loss probe statistics
  • TcpExtTCPAbortOn*: various abort reasons
  • … (many more – refer to kernel snmp_counter documentation for complete list)
# HELP huatuo_bamai_netstat_container_TcpExt_ArpFilter statistic TcpExtArpFilter.
# TYPE huatuo_bamai_netstat_container_TcpExt_ArpFilter gauge
huatuo_bamai_netstat_container_TcpExt_ArpFilter{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_BusyPollRxPackets statistic TcpExtBusyPollRxPackets.
# TYPE huatuo_bamai_netstat_container_TcpExt_BusyPollRxPackets gauge
huatuo_bamai_netstat_container_TcpExt_BusyPollRxPackets{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_DelayedACKLocked statistic TcpExtDelayedACKLocked.
# TYPE huatuo_bamai_netstat_container_TcpExt_DelayedACKLocked gauge
huatuo_bamai_netstat_container_TcpExt_DelayedACKLocked{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_DelayedACKLost statistic TcpExtDelayedACKLost.
# TYPE huatuo_bamai_netstat_container_TcpExt_DelayedACKLost gauge
huatuo_bamai_netstat_container_TcpExt_DelayedACKLost{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_DelayedACKs statistic TcpExtDelayedACKs.
# TYPE huatuo_bamai_netstat_container_TcpExt_DelayedACKs gauge
huatuo_bamai_netstat_container_TcpExt_DelayedACKs{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 4650
# HELP huatuo_bamai_netstat_container_TcpExt_EmbryonicRsts statistic TcpExtEmbryonicRsts.
# TYPE huatuo_bamai_netstat_container_TcpExt_EmbryonicRsts gauge
huatuo_bamai_netstat_container_TcpExt_EmbryonicRsts{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_IPReversePathFilter statistic TcpExtIPReversePathFilter.
# TYPE huatuo_bamai_netstat_container_TcpExt_IPReversePathFilter gauge
huatuo_bamai_netstat_container_TcpExt_IPReversePathFilter{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_ListenDrops statistic TcpExtListenDrops.
# TYPE huatuo_bamai_netstat_container_TcpExt_ListenDrops gauge
huatuo_bamai_netstat_container_TcpExt_ListenDrops{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_ListenOverflows statistic TcpExtListenOverflows.
# TYPE huatuo_bamai_netstat_container_TcpExt_ListenOverflows gauge
huatuo_bamai_netstat_container_TcpExt_ListenOverflows{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_LockDroppedIcmps statistic TcpExtLockDroppedIcmps.
# TYPE huatuo_bamai_netstat_container_TcpExt_LockDroppedIcmps gauge
huatuo_bamai_netstat_container_TcpExt_LockDroppedIcmps{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_OfoPruned statistic TcpExtOfoPruned.
# TYPE huatuo_bamai_netstat_container_TcpExt_OfoPruned gauge
huatuo_bamai_netstat_container_TcpExt_OfoPruned{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_OutOfWindowIcmps statistic TcpExtOutOfWindowIcmps.
# TYPE huatuo_bamai_netstat_container_TcpExt_OutOfWindowIcmps gauge
huatuo_bamai_netstat_container_TcpExt_OutOfWindowIcmps{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_PAWSActive statistic TcpExtPAWSActive.
# TYPE huatuo_bamai_netstat_container_TcpExt_PAWSActive gauge
huatuo_bamai_netstat_container_TcpExt_PAWSActive{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_PAWSEstab statistic TcpExtPAWSEstab.
# TYPE huatuo_bamai_netstat_container_TcpExt_PAWSEstab gauge
huatuo_bamai_netstat_container_TcpExt_PAWSEstab{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_PFMemallocDrop statistic TcpExtPFMemallocDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_PFMemallocDrop gauge
huatuo_bamai_netstat_container_TcpExt_PFMemallocDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_PruneCalled statistic TcpExtPruneCalled.
# TYPE huatuo_bamai_netstat_container_TcpExt_PruneCalled gauge
huatuo_bamai_netstat_container_TcpExt_PruneCalled{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_RcvPruned statistic TcpExtRcvPruned.
# TYPE huatuo_bamai_netstat_container_TcpExt_RcvPruned gauge
huatuo_bamai_netstat_container_TcpExt_RcvPruned{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_SyncookiesFailed statistic TcpExtSyncookiesFailed.
# TYPE huatuo_bamai_netstat_container_TcpExt_SyncookiesFailed gauge
huatuo_bamai_netstat_container_TcpExt_SyncookiesFailed{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_SyncookiesRecv statistic TcpExtSyncookiesRecv.
# TYPE huatuo_bamai_netstat_container_TcpExt_SyncookiesRecv gauge
huatuo_bamai_netstat_container_TcpExt_SyncookiesRecv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_SyncookiesSent statistic TcpExtSyncookiesSent.
# TYPE huatuo_bamai_netstat_container_TcpExt_SyncookiesSent gauge
huatuo_bamai_netstat_container_TcpExt_SyncookiesSent{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedChallenge statistic TcpExtTCPACKSkippedChallenge.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedChallenge gauge
huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedChallenge{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedFinWait2 statistic TcpExtTCPACKSkippedFinWait2.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedFinWait2 gauge
huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedFinWait2{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedPAWS statistic TcpExtTCPACKSkippedPAWS.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedPAWS gauge
huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedPAWS{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedSeq statistic TcpExtTCPACKSkippedSeq.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedSeq gauge
huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedSeq{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedSynRecv statistic TcpExtTCPACKSkippedSynRecv.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedSynRecv gauge
huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedSynRecv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedTimeWait statistic TcpExtTCPACKSkippedTimeWait.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedTimeWait gauge
huatuo_bamai_netstat_container_TcpExt_TCPACKSkippedTimeWait{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAOBad statistic TcpExtTCPAOBad.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAOBad gauge
huatuo_bamai_netstat_container_TcpExt_TCPAOBad{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAODroppedIcmps statistic TcpExtTCPAODroppedIcmps.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAODroppedIcmps gauge
huatuo_bamai_netstat_container_TcpExt_TCPAODroppedIcmps{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAOGood statistic TcpExtTCPAOGood.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAOGood gauge
huatuo_bamai_netstat_container_TcpExt_TCPAOGood{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAOKeyNotFound statistic TcpExtTCPAOKeyNotFound.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAOKeyNotFound gauge
huatuo_bamai_netstat_container_TcpExt_TCPAOKeyNotFound{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAORequired statistic TcpExtTCPAORequired.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAORequired gauge
huatuo_bamai_netstat_container_TcpExt_TCPAORequired{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAbortFailed statistic TcpExtTCPAbortFailed.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAbortFailed gauge
huatuo_bamai_netstat_container_TcpExt_TCPAbortFailed{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAbortOnClose statistic TcpExtTCPAbortOnClose.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAbortOnClose gauge
huatuo_bamai_netstat_container_TcpExt_TCPAbortOnClose{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAbortOnData statistic TcpExtTCPAbortOnData.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAbortOnData gauge
huatuo_bamai_netstat_container_TcpExt_TCPAbortOnData{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAbortOnLinger statistic TcpExtTCPAbortOnLinger.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAbortOnLinger gauge
huatuo_bamai_netstat_container_TcpExt_TCPAbortOnLinger{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAbortOnMemory statistic TcpExtTCPAbortOnMemory.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAbortOnMemory gauge
huatuo_bamai_netstat_container_TcpExt_TCPAbortOnMemory{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAbortOnTimeout statistic TcpExtTCPAbortOnTimeout.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAbortOnTimeout gauge
huatuo_bamai_netstat_container_TcpExt_TCPAbortOnTimeout{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAckCompressed statistic TcpExtTCPAckCompressed.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAckCompressed gauge
huatuo_bamai_netstat_container_TcpExt_TCPAckCompressed{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPAutoCorking statistic TcpExtTCPAutoCorking.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPAutoCorking gauge
huatuo_bamai_netstat_container_TcpExt_TCPAutoCorking{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPBacklogCoalesce statistic TcpExtTCPBacklogCoalesce.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPBacklogCoalesce gauge
huatuo_bamai_netstat_container_TcpExt_TCPBacklogCoalesce{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 3
# HELP huatuo_bamai_netstat_container_TcpExt_TCPBacklogDrop statistic TcpExtTCPBacklogDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPBacklogDrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPBacklogDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPChallengeACK statistic TcpExtTCPChallengeACK.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPChallengeACK gauge
huatuo_bamai_netstat_container_TcpExt_TCPChallengeACK{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredDubious statistic TcpExtTCPDSACKIgnoredDubious.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredDubious gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredDubious{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredNoUndo statistic TcpExtTCPDSACKIgnoredNoUndo.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredNoUndo gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredNoUndo{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredOld statistic TcpExtTCPDSACKIgnoredOld.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredOld gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKIgnoredOld{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKOfoRecv statistic TcpExtTCPDSACKOfoRecv.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKOfoRecv gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKOfoRecv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKOfoSent statistic TcpExtTCPDSACKOfoSent.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKOfoSent gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKOfoSent{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKOldSent statistic TcpExtTCPDSACKOldSent.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKOldSent gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKOldSent{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKRecv statistic TcpExtTCPDSACKRecv.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKRecv gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKRecv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKRecvSegs statistic TcpExtTCPDSACKRecvSegs.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKRecvSegs gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKRecvSegs{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDSACKUndo statistic TcpExtTCPDSACKUndo.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDSACKUndo gauge
huatuo_bamai_netstat_container_TcpExt_TCPDSACKUndo{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDeferAcceptDrop statistic TcpExtTCPDeferAcceptDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDeferAcceptDrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPDeferAcceptDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDelivered statistic TcpExtTCPDelivered.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDelivered gauge
huatuo_bamai_netstat_container_TcpExt_TCPDelivered{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 3.28098e+06
# HELP huatuo_bamai_netstat_container_TcpExt_TCPDeliveredCE statistic TcpExtTCPDeliveredCE.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPDeliveredCE gauge
huatuo_bamai_netstat_container_TcpExt_TCPDeliveredCE{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenActive statistic TcpExtTCPFastOpenActive.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenActive gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenActive{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenActiveFail statistic TcpExtTCPFastOpenActiveFail.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenActiveFail gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenActiveFail{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenBlackhole statistic TcpExtTCPFastOpenBlackhole.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenBlackhole gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenBlackhole{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenCookieReqd statistic TcpExtTCPFastOpenCookieReqd.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenCookieReqd gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenCookieReqd{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenListenOverflow statistic TcpExtTCPFastOpenListenOverflow.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenListenOverflow gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenListenOverflow{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassive statistic TcpExtTCPFastOpenPassive.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassive gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassive{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassiveAltKey statistic TcpExtTCPFastOpenPassiveAltKey.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassiveAltKey gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassiveAltKey{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassiveFail statistic TcpExtTCPFastOpenPassiveFail.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassiveFail gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastOpenPassiveFail{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFastRetrans statistic TcpExtTCPFastRetrans.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFastRetrans gauge
huatuo_bamai_netstat_container_TcpExt_TCPFastRetrans{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFromZeroWindowAdv statistic TcpExtTCPFromZeroWindowAdv.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFromZeroWindowAdv gauge
huatuo_bamai_netstat_container_TcpExt_TCPFromZeroWindowAdv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPFullUndo statistic TcpExtTCPFullUndo.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPFullUndo gauge
huatuo_bamai_netstat_container_TcpExt_TCPFullUndo{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPHPAcks statistic TcpExtTCPHPAcks.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPHPAcks gauge
huatuo_bamai_netstat_container_TcpExt_TCPHPAcks{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 616667
# HELP huatuo_bamai_netstat_container_TcpExt_TCPHPHits statistic TcpExtTCPHPHits.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPHPHits gauge
huatuo_bamai_netstat_container_TcpExt_TCPHPHits{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 9913
# HELP huatuo_bamai_netstat_container_TcpExt_TCPHystartDelayCwnd statistic TcpExtTCPHystartDelayCwnd.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPHystartDelayCwnd gauge
huatuo_bamai_netstat_container_TcpExt_TCPHystartDelayCwnd{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPHystartDelayDetect statistic TcpExtTCPHystartDelayDetect.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPHystartDelayDetect gauge
huatuo_bamai_netstat_container_TcpExt_TCPHystartDelayDetect{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPHystartTrainCwnd statistic TcpExtTCPHystartTrainCwnd.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPHystartTrainCwnd gauge
huatuo_bamai_netstat_container_TcpExt_TCPHystartTrainCwnd{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPHystartTrainDetect statistic TcpExtTCPHystartTrainDetect.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPHystartTrainDetect gauge
huatuo_bamai_netstat_container_TcpExt_TCPHystartTrainDetect{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPKeepAlive statistic TcpExtTCPKeepAlive.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPKeepAlive gauge
huatuo_bamai_netstat_container_TcpExt_TCPKeepAlive{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 20
# HELP huatuo_bamai_netstat_container_TcpExt_TCPLossFailures statistic TcpExtTCPLossFailures.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPLossFailures gauge
huatuo_bamai_netstat_container_TcpExt_TCPLossFailures{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPLossProbeRecovery statistic TcpExtTCPLossProbeRecovery.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPLossProbeRecovery gauge
huatuo_bamai_netstat_container_TcpExt_TCPLossProbeRecovery{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPLossProbes statistic TcpExtTCPLossProbes.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPLossProbes gauge
huatuo_bamai_netstat_container_TcpExt_TCPLossProbes{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_netstat_container_TcpExt_TCPLossUndo statistic TcpExtTCPLossUndo.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPLossUndo gauge
huatuo_bamai_netstat_container_TcpExt_TCPLossUndo{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPLostRetransmit statistic TcpExtTCPLostRetransmit.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPLostRetransmit gauge
huatuo_bamai_netstat_container_TcpExt_TCPLostRetransmit{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMD5Failure statistic TcpExtTCPMD5Failure.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMD5Failure gauge
huatuo_bamai_netstat_container_TcpExt_TCPMD5Failure{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMD5NotFound statistic TcpExtTCPMD5NotFound.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMD5NotFound gauge
huatuo_bamai_netstat_container_TcpExt_TCPMD5NotFound{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMD5Unexpected statistic TcpExtTCPMD5Unexpected.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMD5Unexpected gauge
huatuo_bamai_netstat_container_TcpExt_TCPMD5Unexpected{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMTUPFail statistic TcpExtTCPMTUPFail.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMTUPFail gauge
huatuo_bamai_netstat_container_TcpExt_TCPMTUPFail{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMTUPSuccess statistic TcpExtTCPMTUPSuccess.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMTUPSuccess gauge
huatuo_bamai_netstat_container_TcpExt_TCPMTUPSuccess{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMemoryPressures statistic TcpExtTCPMemoryPressures.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMemoryPressures gauge
huatuo_bamai_netstat_container_TcpExt_TCPMemoryPressures{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMemoryPressuresChrono statistic TcpExtTCPMemoryPressuresChrono.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMemoryPressuresChrono gauge
huatuo_bamai_netstat_container_TcpExt_TCPMemoryPressuresChrono{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMigrateReqFailure statistic TcpExtTCPMigrateReqFailure.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMigrateReqFailure gauge
huatuo_bamai_netstat_container_TcpExt_TCPMigrateReqFailure{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMigrateReqSuccess statistic TcpExtTCPMigrateReqSuccess.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMigrateReqSuccess gauge
huatuo_bamai_netstat_container_TcpExt_TCPMigrateReqSuccess{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPMinTTLDrop statistic TcpExtTCPMinTTLDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPMinTTLDrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPMinTTLDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPOFODrop statistic TcpExtTCPOFODrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPOFODrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPOFODrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPOFOMerge statistic TcpExtTCPOFOMerge.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPOFOMerge gauge
huatuo_bamai_netstat_container_TcpExt_TCPOFOMerge{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPOFOQueue statistic TcpExtTCPOFOQueue.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPOFOQueue gauge
huatuo_bamai_netstat_container_TcpExt_TCPOFOQueue{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPOrigDataSent statistic TcpExtTCPOrigDataSent.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPOrigDataSent gauge
huatuo_bamai_netstat_container_TcpExt_TCPOrigDataSent{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 2.675557e+06
# HELP huatuo_bamai_netstat_container_TcpExt_TCPPLBRehash statistic TcpExtTCPPLBRehash.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPPLBRehash gauge
huatuo_bamai_netstat_container_TcpExt_TCPPLBRehash{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPPartialUndo statistic TcpExtTCPPartialUndo.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPPartialUndo gauge
huatuo_bamai_netstat_container_TcpExt_TCPPartialUndo{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPPureAcks statistic TcpExtTCPPureAcks.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPPureAcks gauge
huatuo_bamai_netstat_container_TcpExt_TCPPureAcks{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 2.095262e+06
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRcvCoalesce statistic TcpExtTCPRcvCoalesce.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRcvCoalesce gauge
huatuo_bamai_netstat_container_TcpExt_TCPRcvCoalesce{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 3
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRcvCollapsed statistic TcpExtTCPRcvCollapsed.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRcvCollapsed gauge
huatuo_bamai_netstat_container_TcpExt_TCPRcvCollapsed{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRcvQDrop statistic TcpExtTCPRcvQDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRcvQDrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPRcvQDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRenoFailures statistic TcpExtTCPRenoFailures.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRenoFailures gauge
huatuo_bamai_netstat_container_TcpExt_TCPRenoFailures{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRenoRecovery statistic TcpExtTCPRenoRecovery.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRenoRecovery gauge
huatuo_bamai_netstat_container_TcpExt_TCPRenoRecovery{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRenoRecoveryFail statistic TcpExtTCPRenoRecoveryFail.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRenoRecoveryFail gauge
huatuo_bamai_netstat_container_TcpExt_TCPRenoRecoveryFail{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRenoReorder statistic TcpExtTCPRenoReorder.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRenoReorder gauge
huatuo_bamai_netstat_container_TcpExt_TCPRenoReorder{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPReqQFullDoCookies statistic TcpExtTCPReqQFullDoCookies.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPReqQFullDoCookies gauge
huatuo_bamai_netstat_container_TcpExt_TCPReqQFullDoCookies{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPReqQFullDrop statistic TcpExtTCPReqQFullDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPReqQFullDrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPReqQFullDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPRetransFail statistic TcpExtTCPRetransFail.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPRetransFail gauge
huatuo_bamai_netstat_container_TcpExt_TCPRetransFail{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSACKDiscard statistic TcpExtTCPSACKDiscard.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSACKDiscard gauge
huatuo_bamai_netstat_container_TcpExt_TCPSACKDiscard{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSACKReneging statistic TcpExtTCPSACKReneging.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSACKReneging gauge
huatuo_bamai_netstat_container_TcpExt_TCPSACKReneging{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSACKReorder statistic TcpExtTCPSACKReorder.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSACKReorder gauge
huatuo_bamai_netstat_container_TcpExt_TCPSACKReorder{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSYNChallenge statistic TcpExtTCPSYNChallenge.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSYNChallenge gauge
huatuo_bamai_netstat_container_TcpExt_TCPSYNChallenge{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSackFailures statistic TcpExtTCPSackFailures.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSackFailures gauge
huatuo_bamai_netstat_container_TcpExt_TCPSackFailures{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSackMerged statistic TcpExtTCPSackMerged.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSackMerged gauge
huatuo_bamai_netstat_container_TcpExt_TCPSackMerged{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSackRecovery statistic TcpExtTCPSackRecovery.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSackRecovery gauge
huatuo_bamai_netstat_container_TcpExt_TCPSackRecovery{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSackRecoveryFail statistic TcpExtTCPSackRecoveryFail.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSackRecoveryFail gauge
huatuo_bamai_netstat_container_TcpExt_TCPSackRecoveryFail{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSackShiftFallback statistic TcpExtTCPSackShiftFallback.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSackShiftFallback gauge
huatuo_bamai_netstat_container_TcpExt_TCPSackShiftFallback{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSackShifted statistic TcpExtTCPSackShifted.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSackShifted gauge
huatuo_bamai_netstat_container_TcpExt_TCPSackShifted{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSlowStartRetrans statistic TcpExtTCPSlowStartRetrans.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSlowStartRetrans gauge
huatuo_bamai_netstat_container_TcpExt_TCPSlowStartRetrans{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSpuriousRTOs statistic TcpExtTCPSpuriousRTOs.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSpuriousRTOs gauge
huatuo_bamai_netstat_container_TcpExt_TCPSpuriousRTOs{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSpuriousRtxHostQueues statistic TcpExtTCPSpuriousRtxHostQueues.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSpuriousRtxHostQueues gauge
huatuo_bamai_netstat_container_TcpExt_TCPSpuriousRtxHostQueues{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPSynRetrans statistic TcpExtTCPSynRetrans.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPSynRetrans gauge
huatuo_bamai_netstat_container_TcpExt_TCPSynRetrans{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPTSReorder statistic TcpExtTCPTSReorder.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPTSReorder gauge
huatuo_bamai_netstat_container_TcpExt_TCPTSReorder{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPTimeWaitOverflow statistic TcpExtTCPTimeWaitOverflow.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPTimeWaitOverflow gauge
huatuo_bamai_netstat_container_TcpExt_TCPTimeWaitOverflow{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPTimeouts statistic TcpExtTCPTimeouts.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPTimeouts gauge
huatuo_bamai_netstat_container_TcpExt_TCPTimeouts{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPToZeroWindowAdv statistic TcpExtTCPToZeroWindowAdv.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPToZeroWindowAdv gauge
huatuo_bamai_netstat_container_TcpExt_TCPToZeroWindowAdv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPWantZeroWindowAdv statistic TcpExtTCPWantZeroWindowAdv.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPWantZeroWindowAdv gauge
huatuo_bamai_netstat_container_TcpExt_TCPWantZeroWindowAdv{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPWinProbe statistic TcpExtTCPWinProbe.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPWinProbe gauge
huatuo_bamai_netstat_container_TcpExt_TCPWinProbe{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPWqueueTooBig statistic TcpExtTCPWqueueTooBig.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPWqueueTooBig gauge
huatuo_bamai_netstat_container_TcpExt_TCPWqueueTooBig{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TCPZeroWindowDrop statistic TcpExtTCPZeroWindowDrop.
# TYPE huatuo_bamai_netstat_container_TcpExt_TCPZeroWindowDrop gauge
huatuo_bamai_netstat_container_TcpExt_TCPZeroWindowDrop{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TW statistic TcpExtTW.
# TYPE huatuo_bamai_netstat_container_TcpExt_TW gauge
huatuo_bamai_netstat_container_TcpExt_TW{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 720624
# HELP huatuo_bamai_netstat_container_TcpExt_TWKilled statistic TcpExtTWKilled.
# TYPE huatuo_bamai_netstat_container_TcpExt_TWKilled gauge
huatuo_bamai_netstat_container_TcpExt_TWKilled{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TWRecycled statistic TcpExtTWRecycled.
# TYPE huatuo_bamai_netstat_container_TcpExt_TWRecycled gauge
huatuo_bamai_netstat_container_TcpExt_TWRecycled{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 2461
# HELP huatuo_bamai_netstat_container_TcpExt_TcpDuplicateDataRehash statistic TcpExtTcpDuplicateDataRehash.
# TYPE huatuo_bamai_netstat_container_TcpExt_TcpDuplicateDataRehash gauge
huatuo_bamai_netstat_container_TcpExt_TcpDuplicateDataRehash{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_netstat_container_TcpExt_TcpTimeoutRehash statistic TcpExtTcpTimeoutRehash.
# TYPE huatuo_bamai_netstat_container_TcpExt_TcpTimeoutRehash gauge
huatuo_bamai_netstat_container_TcpExt_TcpTimeoutRehash{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0

Ref:

Socket

# HELP huatuo_bamai_sockstat_container_FRAG_inuse Number of FRAG sockets in state inuse.
# TYPE huatuo_bamai_sockstat_container_FRAG_inuse gauge
huatuo_bamai_sockstat_container_FRAG_inuse{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_sockstat_container_FRAG_memory Number of FRAG sockets in state memory.
# TYPE huatuo_bamai_sockstat_container_FRAG_memory gauge
huatuo_bamai_sockstat_container_FRAG_memory{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_sockstat_container_RAW_inuse Number of RAW sockets in state inuse.
# TYPE huatuo_bamai_sockstat_container_RAW_inuse gauge
huatuo_bamai_sockstat_container_RAW_inuse{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_sockstat_container_TCP_alloc Number of TCP sockets in state alloc.
# TYPE huatuo_bamai_sockstat_container_TCP_alloc gauge
huatuo_bamai_sockstat_container_TCP_alloc{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 171
# HELP huatuo_bamai_sockstat_container_TCP_inuse Number of TCP sockets in state inuse.
# TYPE huatuo_bamai_sockstat_container_TCP_inuse gauge
huatuo_bamai_sockstat_container_TCP_inuse{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 1
# HELP huatuo_bamai_sockstat_container_TCP_orphan Number of TCP sockets in state orphan.
# TYPE huatuo_bamai_sockstat_container_TCP_orphan gauge
huatuo_bamai_sockstat_container_TCP_orphan{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_sockstat_container_TCP_tw Number of TCP sockets in state tw.
# TYPE huatuo_bamai_sockstat_container_TCP_tw gauge
huatuo_bamai_sockstat_container_TCP_tw{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 75
# HELP huatuo_bamai_sockstat_container_UDPLITE_inuse Number of UDPLITE sockets in state inuse.
# TYPE huatuo_bamai_sockstat_container_UDPLITE_inuse gauge
huatuo_bamai_sockstat_container_UDPLITE_inuse{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_sockstat_container_UDP_inuse Number of UDP sockets in state inuse.
# TYPE huatuo_bamai_sockstat_container_UDP_inuse gauge
huatuo_bamai_sockstat_container_UDP_inuse{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 0
# HELP huatuo_bamai_sockstat_container_sockets_used Number of IPv4 sockets in use.
# TYPE huatuo_bamai_sockstat_container_sockets_used gauge
huatuo_bamai_sockstat_container_sockets_used{container_host="coredns-855c4dd65d-8v5kg",container_hostnamespace="kube-system",container_level="burstable",container_name="coredns",container_type="normal",host="hostname",region="dev"} 7
# HELP huatuo_bamai_sockstat_sockets_used Number of IPv4 sockets in use.
# TYPE huatuo_bamai_sockstat_sockets_used gauge
huatuo_bamai_sockstat_sockets_used{host="hostname",region="dev"} 409
Metric Description Unit Scope Labels
sockstat_sockets_used Total number of sockets currently in use on the system count Host
sockstat_TCP_inuse Number of TCP sockets in active connection states count Host, Container
sockstat_TCP_orphan Number of TCP sockets without an owning process count Host, Container
sockstat_TCP_tw Number of TCP sockets currently in TIME_WAIT state count Host, Container
sockstat_TCP_alloc Total number of allocated TCP socket objects count Host, Container
sockstat_TCP_mem Number of memory pages currently used by TCP sockets count Host

IO

iolatency tracks disk I/O latency distribution. A simple way to read it is: break one disk request into stages, then count how many requests fall into each latency bucket.

  • q2c: from entering the queue to completion, covering the full I/O lifecycle
  • d2c: from driver dispatch to completion, closer to device-side latency
  • freeze: number of disk freeze events

The current version exposes both host-level and container-level metrics.

Queue

These metrics always include the common labels host and region. Container metrics also always include container_host, container_name, container_type, container_level, and container_hostnamespace.

# HELP huatuo_bamai_iolatency_blkdisk_d2c the disk d2c latency
# TYPE huatuo_bamai_iolatency_blkdisk_d2c gauge
huatuo_bamai_iolatency_blkdisk_d2c{disk="253:1",host="hostname",region="dev",zone="0"} 3
# HELP huatuo_bamai_iolatency_blkdisk_q2c the disk q2c latency
# TYPE huatuo_bamai_iolatency_blkdisk_q2c gauge
huatuo_bamai_iolatency_blkdisk_q2c{disk="253:1",host="hostname",region="dev",zone="0"} 3
# HELP huatuo_bamai_iolatency_container_blkdisk_d2c container blkio d2c latency
# TYPE huatuo_bamai_iolatency_container_blkdisk_d2c gauge
huatuo_bamai_iolatency_container_blkdisk_d2c{container_host="etcd-hostname",container_hostnamespace="kube-system",container_level="burstable",container_name="etcd",container_type="normal",disk="253:1",host="hostname",region="dev",zone="5"} 2
# HELP huatuo_bamai_iolatency_container_blkdisk_q2c container blkio q2c latency
# TYPE huatuo_bamai_iolatency_container_blkdisk_q2c gauge
huatuo_bamai_iolatency_container_blkdisk_q2c{container_host="etcd-hostname",container_hostnamespace="kube-system",container_level="burstable",container_name="etcd",container_type="normal",disk="253:1",host="hostname",region="dev",zone="5"} 2
Metric Description Unit Scope Labels
iolatency_blkdisk_q2c Host disk latency statistics for the full I/O lifecycle, from queueing to completion. Buckets: zone0 20-30ms, zone1 30-50ms, zone2 50-100ms, zone3 100-200ms, zone4 200-400ms, zone5 400ms+ count Host host, region, disk, zone
iolatency_blkdisk_d2c Host disk latency statistics from driver dispatch to completion, closer to device processing time. Buckets: zone0 20-30ms, zone1 30-50ms, zone2 50-100ms, zone3 100-200ms, zone4 200-400ms, zone5 400ms+ count Host host, region, disk, zone
iolatency_container_blkdisk_q2c Container-caused latency statistics for the full I/O lifecycle, from queueing to completion. Buckets: zone0 20-30ms, zone1 30-50ms, zone2 50-100ms, zone3 100-200ms, zone4 200-400ms, zone5 400ms+ count Container host, region, container_host, container_name, container_type, container_level, container_hostnamespace, zone
iolatency_container_blkdisk_d2c Container-caused latency statistics from driver dispatch to completion. Buckets: zone0 20-30ms, zone1 30-50ms, zone2 50-100ms, zone3 100-200ms, zone4 200-400ms, zone5 400ms+ count Container host, region, container_host, container_name, container_type, container_level, container_hostnamespace, zone

Hardware

# HELP huatuo_bamai_iolatency_blkdisk_freeze the disk freeze event count
# TYPE huatuo_bamai_iolatency_blkdisk_freeze gauge
huatuo_bamai_iolatency_blkdisk_freeze{disk="253:1",host="hostname",region="dev"} 0
Metric Description Unit Scope Labels
iolatency_blkdisk_freeze Host disk freeze event count count Host host, region, disk

Disk IO Statistics

diskio collects per-device disk IO metrics and system-wide CPU iowait by reading /proc/diskstats and /proc/stat. Unlike iolatency, diskio is procfs-based rather than eBPF-based, providing cumulative counters that support rate-based latency calculations.

The default configuration disables this collector through BlackList. Remove diskio from BlackList to enable these metrics.

Counter metrics are cumulative; use Prometheus rate() for per-second values (IOPS, throughput). Gauge metrics are point-in-time values. Average latency is computed in PromQL by dividing the I/O time rate by the request rate.

# HELP huatuo_bamai_diskio_read_requests_total Total number of read requests completed successfully.
# TYPE huatuo_bamai_diskio_read_requests_total counter
huatuo_bamai_diskio_read_requests_total{device="sda",host="hostname",region="dev"} 1000
# HELP huatuo_bamai_diskio_write_requests_total Total number of write requests completed successfully.
# TYPE huatuo_bamai_diskio_write_requests_total counter
huatuo_bamai_diskio_write_requests_total{device="sda",host="hostname",region="dev"} 2000
# HELP huatuo_bamai_diskio_read_bytes_total Total number of bytes read from the device.
# TYPE huatuo_bamai_diskio_read_bytes_total counter
huatuo_bamai_diskio_read_bytes_total{device="sda",host="hostname",region="dev"} 2.56e+07
# HELP huatuo_bamai_diskio_written_bytes_total Total number of bytes written to the device.
# TYPE huatuo_bamai_diskio_written_bytes_total counter
huatuo_bamai_diskio_written_bytes_total{device="sda",host="hostname",region="dev"} 4.096e+07
# HELP huatuo_bamai_diskio_io_in_progress Number of I/O requests currently in flight (queue depth).
# TYPE huatuo_bamai_diskio_io_in_progress gauge
huatuo_bamai_diskio_io_in_progress{device="sda",host="hostname",region="dev"} 50
# HELP huatuo_bamai_diskio_read_time_seconds_total Total seconds spent by completed read requests.
# TYPE huatuo_bamai_diskio_read_time_seconds_total counter
huatuo_bamai_diskio_read_time_seconds_total{device="sda",host="hostname",region="dev"} 3
# HELP huatuo_bamai_diskio_write_time_seconds_total Total seconds spent by completed write requests.
# TYPE huatuo_bamai_diskio_write_time_seconds_total counter
huatuo_bamai_diskio_write_time_seconds_total{device="sda",host="hostname",region="dev"} 6
# HELP huatuo_bamai_diskio_disk_iowait_percent CPU time spent waiting for I/O during the collection interval.
# TYPE huatuo_bamai_diskio_disk_iowait_percent gauge
huatuo_bamai_diskio_disk_iowait_percent{host="hostname",region="dev"} 50
Metric Description Unit Scope Labels
read_requests_total Cumulative read requests completed (field 4). Use rate() for read IOPS count Host host, region, device
write_requests_total Cumulative write requests completed (field 8). Use rate() for write IOPS count Host host, region, device
read_bytes_total Cumulative bytes read (field 6 × 512). Use rate() for read throughput bytes Host host, region, device
written_bytes_total Cumulative bytes written (field 10 × 512). Use rate() for write throughput bytes Host host, region, device
read_time_seconds_total Cumulative seconds spent by completed reads (field 7) seconds Host host, region, device
write_time_seconds_total Cumulative seconds spent by completed writes (field 11) seconds Host host, region, device
io_in_progress Current number of I/O requests in flight, i.e. queue depth (field 12) count Host host, region, device
disk_iowait_percent CPU time spent waiting for I/O during the collection interval percent Host host, region

General System

Soft Lockup

# HELP huatuo_bamai_softlockup_total softlockup counter
# TYPE huatuo_bamai_softlockup_total counter
huatuo_bamai_softlockup_total{host="hostname",region="dev"} 0
Metric Description Unit Target Source Labels
softlockup_total Count of soft lockup events count Host BPF

HungTask

# HELP huatuo_bamai_hungtask_total hungtask counter
# TYPE huatuo_bamai_hungtask_total counter
huatuo_bamai_hungtask_total{host="hostname",region="dev"} 0
Metric Description Unit Target Source Labels
hungtask_total Count of hung task events count Host BPF

GPU

  • MetaX
Metric Description Unit Target Source
metax_gpu_sdk_info GPU SDK info. - version sml.GetSDKVersion
metax_gpu_driver_info GPU driver info. - version sml.GetGPUVersion with driver unit
metax_gpu_info GPU info. - gpu, model, uuid, bios_version, bdf, mode, die_count sml.GetGPUInfo
metax_gpu_board_power_watts GPU board power. W gpu sml.ListGPUBoardWayElectricInfos
metax_gpu_pcie_link_speed_gt_per_second GPU PCIe current link speed. GT/s gpu sml.GetGPUPcieLinkInfo
metax_gpu_pcie_link_width_lanes GPU PCIe current link width. lanes gpu sml.GetGPUPcieLinkInfo
metax_gpu_pcie_receive_bytes_per_second GPU PCIe receive throughput. B/s gpu sml.GetGPUPcieThroughputInfo
metax_gpu_pcie_transmit_bytes_per_second GPU PCIe transmit throughput. B/s gpu sml.GetGPUPcieThroughputInfo
metax_gpu_metaxlink_link_speed_gt_per_second GPU MetaXLink current link speed. GT/s gpu, metaxlink sml.ListGPUMetaXLinkLinkInfos
metax_gpu_metaxlink_link_width_lanes GPU MetaXLink current link width. lanes gpu, metaxlink sml.ListGPUMetaXLinkLinkInfos
metax_gpu_metaxlink_receive_bytes_per_second GPU MetaXLink receive throughput. B/s gpu, metaxlink sml.ListGPUMetaXLinkThroughputInfos
metax_gpu_metaxlink_transmit_bytes_per_second GPU MetaXLink transmit throughput. B/s gpu, metaxlink sml.ListGPUMetaXLinkThroughputInfos
metax_gpu_metaxlink_receive_bytes_total GPU MetaXLink receive data size. bytes gpu, metaxlink sml.ListGPUMetaXLinkTrafficStatInfos
metax_gpu_metaxlink_transmit_bytes_total GPU MetaXLink transmit data size. bytes gpu, metaxlink sml.ListGPUMetaXLinkTrafficStatInfos
metax_gpu_metaxlink_aer_errors_total GPU MetaXLink AER errors count. count gpu, metaxlink, error_type sml.ListGPUMetaXLinkAerErrorsInfos
metax_gpu_status GPU status, 0 means normal, other values means abnormal. Check the documentation to see the exceptions corresponding to each value. - gpu, die sml.GetDieStatus
metax_gpu_temperature_celsius GPU temperature. °C gpu, die sml.GetDieTemperature
metax_gpu_utilization_percent GPU utilization, ranging from 0 to 100. % gpu, die, ip sml.GetDieUtilization
metax_gpu_memory_total_bytes Total vram. bytes gpu, die sml.GetDieMemoryInfo
metax_gpu_memory_used_bytes Used vram. bytes gpu, die sml.GetDieMemoryInfo
metax_gpu_clock_mhz GPU clock. MHz gpu, die, ip sml.ListDieClocks
metax_gpu_clocks_throttling Reason(s) for GPU clocks throttling. - gpu, die, reason sml.GetDieClocksThrottleStatus
metax_gpu_dpm_performance_level GPU DPM performance level. - gpu, die, ip sml.GetDieDPMPerformanceLevel
metax_gpu_ecc_memory_errors_total GPU ECC memory errors count. count gpu, die, memory_type, error_type sml.GetDieECCMemoryInfo
metax_gpu_ecc_memory_retired_pages_total GPU ECC memory retired pages count. count gpu, die sml.GetDieECCMemoryInfo

5.2 - Instant Observability

📖 Overview

HUATUO uses eBPF technology to observe anomalous events in real time across core Linux kernel subsystems, including CPU scheduling, memory management, the network protocol stack, and hardware error reporting. When the kernel encounters anomalies such as softlockup, OOM, or hardware MCE errors, eBPF programs hook into kernel functions (kprobes) or kernel tracepoints, capturing process information, kernel call stacks, and network context at the moment the event occurs. The data is passed to user-space handlers via the perf event ring buffer and persisted to Elasticsearch or local disk files.

Compared to traditional kernel log (dmesg/syslog) collection, eBPF-based event observation reduces the risk of data loss from log buffer overflow; it can capture transient anomalies that never appear in kernel logs (such as excessive softirq disable time); and it provides container-level event correlation for precise root-cause analysis in cloud-native environments.

Twelve event types are continuously observed, covering CPU scheduling health (softirq_tracing, softlockup, hungtask), memory pressure (oom, memory_reclaim_events), the network protocol stack (dropwatch, tcp_retransmit, net_rx_latency, netdev_events, netdev_bonding_lacp, netdev_txqueue_timeout), and hardware reliability (ras).

🎯 Use Cases

Kubernetes Container Memory Fault Diagnosis: In scenarios where containers frequently restart due to OOM, the oom event records both the process killed by the OOM Killer (victim) and the process that triggered the OOM (trigger), including their memcg cgroup pointers and container IDs. Combined with time-series data, this enables fast root-cause analysis of containers involved in memory contention, reducing the time spent manually reviewing container logs.

AI Training Cluster Hardware Fault Detection: On GPU training servers, the ras event continuously collects MCE (Machine Check Exception), EDAC memory controller errors, and PCIe AER (Advanced Error Reporting) errors, classifying them by severity (Corrected / UncorrectedRecoverable / UncorrectedFatal). This enables early detection of hardware aging or single-point failures before training jobs are interrupted, reducing training task losses caused by hardware faults.

Network Performance Jitter Analysis: dropwatch observes packet drops in the kernel network stack, tcp_retransmit observes TCP retransmission activity, and net_rx_latency detects end-to-end receive-path latency for individual packets from the network card driver to user space. Separate thresholds are configured per stage (driver to kernel: 5ms, kernel to TCP: 10ms, TCP to user space: 115ms), precisely identifying which network layer causes business timeouts.

Host Scheduling Health Observation: The softirq_tracing (softirq disable time, default threshold 10ms), softlockup (CPU unable to schedule, ~1 second), and hungtask (D-state process hang) events jointly cover anomalies along the CPU scheduling path. When system stalls or response timeouts occur, kernel call stacks and other diagnostic data are automatically preserved, supporting offline analysis after the fault clears.

🚀 Usage

Configuration

All events provide default values and are operational without any configuration. The following parameters can be tuned as needed:

Parameter Default Description
softirq.disabled_threshold 10000000 (10ms, nanoseconds) Softirq disable time trigger threshold
memory_reclaim.blocked_threshold 900000000 (900ms, nanoseconds) Direct memory reclaim time trigger threshold
net_rx_latency.driver2net_rx 5 (ms) Latency threshold from NIC driver to __netif_receive_skb
net_rx_latency.driver2tcp 10 (ms) Latency threshold from NIC driver to tcp_v4_rcv
net_rx_latency.driver2userspace 115 (ms) Latency threshold from NIC driver to user-space copy (skb_copy_datagram_iovec)
net_rx_latency.excluded_host_netnamespace true Whether to exclude the host network namespace (observe containers only by default)
net_rx_latency.excluded_container_qos [] List of container QoS levels to exclude
dropwatch.filter tcp tcpdump-style packet filter applied before dropwatch events are emitted
dropwatch.max_events_per_second 100 Maximum dropwatch events emitted per second; 0 disables rate limiting
dropwatch.exclude_containers [] Reserved field; the current dropwatch event path does not apply it
netdev.device_list [] List of network device names to monitor for link state changes
ras.mce_thr_backoff 1800 (seconds) MCE threshold interrupt (THR) event reporting cooldown to suppress interrupt storms
issues_list [] Known-issue suppression rules; matched against net_rx_latency titles and dropwatch kernel call stacks

Supported Events

Event Name (tracer_name) Probe Type Trigger Condition Typical Scenarios
softirq_tracing kprobe Softirq disable time > threshold (default 10ms) System stalls, network latency, scheduling delays
softlockup kprobe CPU unable to schedule for extended time (~1 second) Soft lockup, response anomalies
hungtask kprobe D-state process task hang Transient mass D-state processes, IO blocking
oom kprobe OOM Killer triggered Container/host memory exhaustion
memory_reclaim_events kprobe Container process direct reclaim time > threshold (default 900ms) Business stalls caused by memory pressure
ras tracepoint CPU/MEM/PCIe hardware errors Hardware fault detection
dropwatch tracepoint Kernel network stack packet drop Business jitter caused by protocol stack drops
tcp_retransmit tracepoint; optional kprobe for TLP TCP retransmission or Tail Loss Probe TCP loss, reordering, congestion, and latency diagnosis
net_rx_latency kprobe Protocol stack receive latency exceeds per-stage threshold Business timeouts caused by receive latency
netdev_events netlink NIC link state change Physical NIC link failures
netdev_bonding_lacp kprobe LACP protocol state change (IEEE 802.3ad mode only) Fault boundary between physical machines and switches
netdev_txqueue_timeout kprobe NIC transmit queue timeout NIC transmit queue hardware failure

For tcp_retransmit usage, fields, classification, and drop correlation, refer to the tcpshark documentation.

Fields

All event records include the following common fields:

  • hostname: Physical machine hostname
  • region: Availability zone where the physical machine is located
  • uploaded_time: Data upload time
  • container_id: Container ID if the event is associated with a container
  • container_hostname: Container hostname if the event is associated with a container
  • container_host_namespace: Kubernetes namespace of the container if the event is associated with a container
  • container_type: Container type, e.g., normal for regular containers, sidecar for sidecar containers
  • container_qos: Container QoS level
  • tracer_name: Event name (e.g., softirq_tracing, oom)
  • tracer_id: Tracing ID for this event
  • tracer_time: Time when the tracing was triggered
  • tracer_type: Trigger type — manual or automatic
  • tracer_data: Event-specific private data (see individual event descriptions below)

1. softirq_tracing

Description Triggered when the kernel disables softirqs for longer than the configured threshold. Records the kernel call stack during the disable period and current process information to help analyze interrupt-related latency issues. The filter automatically excludes noise events from ksoftirqd and swapper processes.

Data Storage Event data is automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "uploaded_time": "2025-06-11T16:05:16.251152703+08:00",
    "hostname": "***",
    "tracer_data": {
        "offtime": 237328905,
        "threshold": 10000000,
        "comm": "***-agent",
        "pid": 688073,
        "cpu": 1,
        "now": 5532940660025295,
        "stack": "scheduler_tick/..."
    },
    "tracer_time": "2025-06-11 16:05:16.251 +0800",
    "tracer_type": "auto",
    "time": "2025-06-11 16:05:16.251 +0800",
    "region": "***",
    "tracer_name": "softirq_tracing"
}

Fields

  • comm: Name of the process that triggered the event
  • stack: Kernel call stack during the softirq disable period
  • now: Monotonic clock timestamp at the time of the event (nanoseconds)
  • offtime: Duration that softirqs were disabled (nanoseconds)
  • cpu: CPU number where the event occurred
  • threshold: Trigger threshold (nanoseconds); events are recorded when this is exceeded
  • pid: Process ID that triggered the event

2. dropwatch

Description Detects packet drop behavior in the kernel network protocol stack. Outputs the kernel call stack, network 5-tuple, and TCP state at the time of the drop. Optional call-stack filters can suppress locally validated noise patterns. The type field is reserved for TCP drop-type compatibility and is currently unset.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "observed_timestamp": "2026-07-23T02:14:40.304775546Z",
        "drop_reason": "SKB_DROP_REASON_NOT_SPECIFIED",
        "source": "events",
        "comm": "kubelet",
        "pid": 1687046,
        "net_namespace_cookie": 123456789,
        "net_namespace_inum": 402653184,
        "netdev_queue_mapping": 3,
        "netdev_linkstatus": ["linkStatusUp"],
        "netdev_name": "eth0",
        "netdev_ifindex": 2,
        "packet_eth_proto": "0x0800",
        "packet_len": 1460,
        "layers": {
            "label": "IPv4/TCP",
            "ipv4": {
                "saddr": "10.79.68.62",
                "daddr": "10.134.72.4",
                "protocol": "TCP"
            },
            "tcp": {
                "sport": 8080,
                "dport": 49000,
                "seq": 1009085774,
                "ack_seq": 689410995,
                "flags": "ACK",
                "sk_state": "ESTABLISHED"
            }
        },
        "stack": "kfree_skb/..."
    }
}

Fields

  • type: Reserved drop type, currently unset and omitted from JSON; reserved codes are 1 (common drop), 2 (SYN flood), 3 (SYN queue overflow), and 4 (accept queue overflow)
  • drop_reason: Kernel packet-drop reason
  • source: Event source (tools for standalone dropwatch or events when launched by huatuo-bamai)
  • comm: Name of the process that triggered the packet drop
  • pid: Process ID
  • net_namespace_cookie / net_namespace_inum: Network namespace values used for container resolution
  • netdev_queue_mapping: NIC queue index
  • netdev_linkstatus: List of NIC link status flags
  • netdev_name: Network device name
  • netdev_ifindex: Network interface index
  • packet_len: Packet length (bytes)
  • layers.ipv4.saddr / layers.ipv4.daddr: Source and destination IP addresses
  • layers.tcp.sport / layers.tcp.dport: Source and destination ports
  • layers.tcp.seq / layers.tcp.ack_seq: TCP sequence and acknowledgment sequence numbers
  • layers.tcp.sk_state: TCP connection state at the time of the drop
  • stack: Kernel call stack at the time of the drop

3. net_rx_latency

Description Detects latency events on the protocol stack receive path (NIC driver → kernel protocol stack → user-space receive). Three observation points are set along the receive path; when the latency of any stage exceeds the corresponding threshold (defaults: driver to kernel 5ms, kernel to TCP 10ms, TCP to user space 115ms), the event is recorded with the network 5-tuple, TCP sequence number, latency stage, and latency duration. All TCP states are observed, not limited to ESTABLISHED—receive latency events in SYN, FIN, TIME_WAIT, and other non-ESTABLISHED states are also captured. The host network namespace is excluded by default, observing only container network traffic.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "comm": "nginx",
        "pid": 2921092,
        "lat_stage": "RX_STAGE_USERCOPY",
        "lat_ms": 95973,
        "tcp_state": "ESTABLISHED",
        "tcp_saddr": "10.156.248.76",
        "tcp_daddr": "10.134.72.4",
        "tcp_sport": 9213,
        "tcp_dport": 49000,
        "tcp_seq": 1009085774,
        "tcp_ack_seq": 689410995,
        "net_namespace_cookie": 123456789,
        "net_namespace_inum": 402653184,
        "pkt_len": 26064
    }
}

Fields

  • comm: Name of the process that triggered the event
  • pid: Process ID that triggered the event
  • lat_stage: Stage where latency occurred (RX_STAGE_NETIF driver-to-kernel / RX_STAGE_TCPV4 kernel-to-TCP / RX_STAGE_USERCOPY TCP-to-user-space)
  • lat_ms: Actual latency (milliseconds)
  • tcp_state: TCP connection state (all states are supported, e.g., ESTABLISHED, SYN_SENT, FIN_WAIT, TIME_WAIT)
  • tcp_saddr / tcp_daddr: Source IP / Destination IP address
  • tcp_sport / tcp_dport: Source port / Destination port
  • tcp_seq / tcp_ack_seq: TCP sequence number / Acknowledgment sequence number
  • net_namespace_cookie: Network namespace cookie (available on kernel ≥ 5.14, used for efficient container association)
  • net_namespace_inum: Network namespace inum
  • pkt_len: Packet length (bytes)

4. oom

Description Detects OOM (Out of Memory) events on the host or inside containers. Records information about the process killed by the OOM Killer (victim) and the process that triggered the OOM (trigger), along with the corresponding container and memory cgroup details, providing a complete fault snapshot. Host-level and per-container OOM count metrics are also maintained.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "trigger_memcg_css": "0xff4b8d8be3818000",
        "trigger_container_id": "***",
        "trigger_container_hostname": "***.docker",
        "trigger_pid": 3218804,
        "trigger_process_name": "java",
        "victim_memcg_css": "0xff4b8d8be3818000",
        "victim_container_id": "***",
        "victim_container_hostname": "***.docker",
        "victim_pid": 3218745,
        "victim_process_name": "java",
        "cgroup_memory_limit": 2147483648,
        "cgroup_memory_usage": 2143289344,
        "memory_snapshot": {
            "top_processes": [
                {
                    "pid": 3218745,
                    "process_name": "java",
                    "vm_rss": 1604321280,
                    "rss_anon": 1509949440,
                    "rss_file": 83886080,
                    "rss_shmem": 0,
                    "vm_swap": 0,
                    "total": 1593835520
                }
            ],
            "host_meminfo": {
                "MemAvailable": 3355443200,
                "Cached": 1073741824,
                "Slab": 268435456
            },
            "victim_cgroup": {
                "container_id": "***",
                "cgroup_path": "kubepods.slice/...",
                "current": 2143289344,
                "max": 2147483648,
                "stat": {
                    "anon": 1509949440,
                    "file": 83886080
                },
                "events": {
                    "oom": 1,
                    "oom_kill": 1
                }
            }
        }
    }
}

Fields

  • victim_process_name / victim_pid: Name and PID of the process killed by the OOM Killer
  • victim_container_hostname / victim_container_id: Hostname and container ID where the killed process resided
  • victim_memcg_css: Memory cgroup pointer (hex) of the killed process
  • trigger_process_name / trigger_pid: Name and PID of the process that triggered OOM
  • trigger_container_hostname / trigger_container_id: Hostname and container ID where the triggering process resided
  • trigger_memcg_css: Memory cgroup pointer (hex) of the triggering process
  • cgroup_memory_limit / cgroup_memory_usage: Memory limit and usage reported by the kernel event
  • memory_snapshot.top_processes: Top processes by RSS/swap at the OOM moment, including RssAnon, RssFile, RssShmem, VmRSS, and VmSwap
  • memory_snapshot.host_meminfo: Key host /proc/meminfo values, such as MemAvailable, Cached, Slab, swap, and anon/file activity
  • memory_snapshot.trigger_cgroup / victim_cgroup: Trigger/victim container cgroup path, current/max memory, memory.stat, and memory.events

5. softlockup

Description Detects softlockup events (CPU unable to be scheduled for an extended period, approximately 1 second). Provides information about the target process causing the lockup, the CPU where it occurred, and NMI backtrace information for all CPUs. A backoff strategy is applied: the reporting interval increases from 10 minutes up to a maximum of 3 hours during an event storm to prevent duplicate reports. A softlockup occurrence counter metric is also maintained.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "cpu": 15,
        "pid": 12345,
        "comm": "kworker/15:0",
        "cpus_stack": "2025-06-10 14:30:22 sysrq: Show backtrace of all active CPUs\nNMI backtrace for cpu 15\n..."
    }
}

Fields

  • cpu: CPU number where the softlockup occurred
  • pid: PID of the process that triggered the softlockup
  • comm: Name of the process that triggered the softlockup
  • cpus_stack: NMI backtrace for all CPUs (multi-line text containing timestamps and call stacks)

6. hungtask

Description Detects hungtask events. Captures the kernel stacks of all processes in D state (uninterruptible sleep) and NMI backtrace for all CPUs to preserve the fault scene. A backoff strategy is applied: the reporting interval increases from 10 minutes up to a maximum of 3 hours during an event storm. A hungtask occurrence counter metric is also maintained. Note: some Linux distributions (e.g., Fedora 42) disable hungtask detection by default, in which case this observer will not start.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "pid": 2567042,
        "comm": "kworker/u48:2",
        "cpus_stack": "2025-06-10 09:57:14 sysrq: Show backtrace of all active CPUs\nNMI backtrace for cpu 33\n...",
        "blocked_processes_stack": "task:java            state:D stack:    0 pid: 12345 ..."
    }
}

Fields

  • pid: PID of the process that triggered the hungtask detection
  • comm: Name of the process that triggered the hungtask detection
  • cpus_stack: NMI backtrace for all CPUs (multi-line text containing timestamps and call stacks)
  • blocked_processes_stack: Kernel stack information of D-state processes

7. memory_reclaim_events

Description Detects direct memory reclaim events for container processes. Triggered when the direct reclaim time of the same process within 1 second exceeds the configured threshold (default 900ms). Records the reclaim duration, process, and container information. Note: this observer only records events for container processes; host process events are filtered out.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "pid": 1896137,
        "comm": "java",
        "deltatime": 1412702917
    }
}

Fields

  • comm: Name of the process that triggered direct memory reclaim
  • pid: PID of the triggering process
  • deltatime: Direct reclaim duration (nanoseconds)

8. ras

Description Detects hardware errors from CPU, memory, and PCIe subsystems via kernel tracepoints. Supports five hardware error sources: MCE (Machine Check Exception), EDAC (memory controller), ACPI/GHES (non-standard hardware errors), PCIe AER (Advanced Error Reporting), and MCE threshold interrupts (THR). Errors are classified by severity: Corrected, UncorrectedRecoverable, UncorrectedDeferred, and UncorrectedFatal. MCE threshold interrupt events use a cooldown period (default 30 minutes) to suppress interrupt storm-driven duplicate reports.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

MCE Sample Data

{
    "tracer_data": {
        "dev": "CPU/MEM",
        "event": "MCE",
        "type": "UncorrectedRecoverable",
        "timestamp": 1749600000000000000,
        "info": "{\"mcg_cpu_cap\":4096,\"banks_msr_status\":9295429630892703744,\"cpu\":2,\"socketid\":0,\"bank\":5}"
    }
}

PCIe AER Sample Data

{
    "tracer_data": {
        "dev": "PCIe 0000:3b:00.0",
        "event": "AER",
        "type": "UncorrectedRecoverable",
        "timestamp": 1749600000000000000,
        "info": "{\"dev_name\":\"0000:3b:00.0\",\"err_type\":\"UncorrectedRecoverable\",\"err_reason\":\"Completion Timeout\",\"tlp_header\":\"not available\"}"
    }
}

Fields

  • dev: Hardware device where the error occurred (e.g., CPU/MEM, PCIe 0000:3b:00.0)
  • event: Error type (MCE / EDAC / NON_STANDARD / AER / MCE_THRESHOLD)
  • type: Error severity (Corrected / UncorrectedRecoverable / UncorrectedDeferred / UncorrectedFatal / Info)
  • timestamp: Timestamp when the hardware error occurred
  • info: JSON-formatted detailed error information; content varies by event type

9. netdev_events

Description Detects NIC link state change events by subscribing to kernel netlink RTM_NEWLINK messages. Captures events including down/up transitions, MTU changes, AdminDown, and CarrierDown, along with interface name, link status, MAC address, and driver information. At startup, the observer scans the current state of all devices in device_list as a baseline; only state changes are reported thereafter.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "ifname": "eth1",
        "index": 3,
        "linkstatus": "linkStatusAdminDown, linkStatusCarrierDown",
        "mac": "5c:6f:69:34:dc:72",
        "start": false,
        "driver": "ixgbe",
        "driver_version": "5.1.0-k",
        "firmware_version": "3.25 0x80000421 1.2163.0"
    }
}

Fields

  • ifname: Network interface name (e.g., eth1)
  • index: Interface index number
  • linkstatus: Link state change description (may contain multiple states)
  • mac: NIC MAC address
  • start: Whether this is a baseline event scanned at startup (true: startup scan, false: real-time change event)
  • driver: NIC driver name
  • driver_version: NIC driver version
  • firmware_version: NIC firmware version

10. netdev_bonding_lacp

Description Detects LACP (Link Aggregation Control Protocol, IEEE 802.3ad) protocol state changes in bonding mode. Reads and records the complete status of all bonding interfaces under /proc/net/bonding/, including mode, MII status, Actor/Partner negotiation parameters, and slave link states. This observer is only activated automatically when an IEEE 802.3ad bonding interface is present on the system.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "content": "/proc/net/bonding/bond0\nEthernet Channel Bonding Driver: v4.18.0...\nBonding Mode: IEEE 802.3ad Dynamic link aggregation\nMII Status: down\n..."
    }
}

Fields

  • content: Complete bonding interface status information (multi-line text containing LACP negotiation details for all slaves, equivalent to the /proc/net/bonding/bondX file content)

11. netdev_txqueue_timeout

Description Detects NIC transmit queue timeout (TX queue timeout) events. Records the queue index, device name, and driver name where the timeout occurred, used to identify hardware failures on the NIC transmit path.

Data Storage Automatically stored in Elasticsearch or as files on the physical machine disk.

Sample Data

{
    "tracer_data": {
        "queue_index": 3,
        "device_name": "eth0",
        "driver_name": "ixgbe"
    }
}

Fields

  • queue_index: Index of the transmit queue where the timeout occurred
  • device_name: Network device name
  • driver_name: NIC driver name

⚙️ How It Works

Architecture

HUATUO’s anomalous event observation is built on eBPF technology. Event data is collected in kernel space with minimal performance overhead, and processed by user-space daemons for formatting, filtering, container association, and persistent storage.

graph TB
    subgraph "Linux Kernel"
        direction TB
        K1["kprobe hooks\n(softirq_tracing / softlockup / hungtask\n oom / memory_reclaim_events\n net_rx_latency / netdev_txqueue_timeout\n tcp_retransmit TLP, optional)"]
        K2["tracepoint hooks\n(ras: MCE / EDAC / AER / ACPI\n dropwatch: skb/kfree_skb\n tcp_retransmit:\n tcp/tcp_retransmit_skb /\n tcp/tcp_retransmit_synack)"]
        K3["netlink subscription\n(netdev_events: RTM_NEWLINK)"]
        K4["kprobe hooks\n(netdev_bonding_lacp: 802.3ad)"]
        PEB["Perf Event Ring Buffer\n(8192 pages)"]
    end

    subgraph "HUATUO User Space"
        direction TB
        EH["Go event handler goroutines\n(one per event type)"]
        CF["Filters\n(threshold / noise reduction / known-issue filtering)"]
        CM["Container association\n(CSS → ContainerID\n NetNS → ContainerID)"]
    end

    subgraph "Storage"
        ES["Elasticsearch"]
        DISK["Local disk files"]
    end

    K1 --> PEB
    K2 --> PEB
    K4 --> PEB
    PEB --> EH
    K3 --> EH
    EH --> CF
    CF --> CM
    CM --> ES
    CM --> DISK

Event Processing Flow

sequenceDiagram
    participant K as Linux Kernel
    participant B as eBPF Program
    participant P as Perf Event Buffer
    participant H as Go Event Handler
    participant F as Filter
    participant S as Storage

    K->>B: kprobe / tracepoint fires
    B->>B: Collect event context<br/>(process info / kernel stack / network context)
    B->>P: Write to perf event ring buffer
    H->>P: Read event data (blocking)
    H->>F: Format and apply filters<br/>(threshold / noise / known issues)
    F->>H: Events that passed filtering
    H->>H: Associate container information<br/>(CSS / NetNS mapping)
    H->>S: Persist to storage<br/>(Elasticsearch / local files)

5.3 - AutoTracing

📖 Overview

AutoTracing is an event-driven automatic diagnosis mechanism. When a host or container shows performance anomalies — such as CPU spikes, accumulation of D-state processes, saturated disk IO, or sudden memory allocation — the system triggers on-site data collection automatically based on preset thresholds, with no manual intervention required.

Collected artifacts include eBPF flame graphs (system-wide or container-scoped CPU call stack samples via perf), D-state process kernel call stacks, disk IO call stacks, and process memory usage rankings. Each event type has a built-in cooldown period (30 minutes by default) to prevent redundant data from continuous triggers.

Five event types are supported: cpusys (host CPU sys spike), cpuidle (container CPU usage spike), dload (container D-state load spike), iotracing (disk IO anomaly), and memburst (memory burst allocation).

🎯 Use Cases

CPU Hotspot Analysis for AI Training Jobs: In GPU training clusters, intermittent training stalls are often caused by sudden increases in kernel-mode CPU usage (cpusys). When sys utilization exceeds the threshold, AutoTracing immediately triggers a system-wide perf flame graph collection, persisting kernel call stack hotspots as structured flame graph data (flamedata) for offline analysis after the anomaly has passed.

Container CPU Jitter Analysis in Kubernetes: In microservice architectures, brief container CPU spikes (cpuidle) may cause response timeouts, but the issue often recovers before alert responders can act. When container CPU exceeds the threshold, AutoTracing triggers container-scoped perf sampling and generates a flame graph scoped to the container’s cgroup, identifying hotspot functions and reducing time spent on log-based investigation.

D-State Process Accumulation in Cloud-Native Environments: Under high IO load or storage jitter, containers may accumulate large numbers of D-state (uninterruptible sleep) processes, causing system stalls. The dload event applies an exponential weighted moving average (EMA) to the container’s uninterruptible process load. When the EMA exceeds the threshold, kernel call stacks are collected for all D-state processes inside the container and on the host, pinpointing the blocking root cause.

Disk IO Bottleneck Root Cause Analysis: In data-intensive or log-heavy workloads, saturated disk IO utilization or write bandwidth causes application request backlog. iotracing continuously polls /proc/diskstats and triggers when any IO metric exceeds its threshold for two consecutive samples. It then collects a list of high-IO processes (with per-process read/write byte counts and open file details) and kernel call stacks of processes waiting in IO scheduling, narrowing down the processes responsible for high disk IO consumption.

🚀 Usage

Configuration

All events provide default values and work without configuration:

Parameter Default Description
cpuidle.user_threshold 75 (%) Container CPU user utilization trigger threshold
cpuidle.sys_threshold 45 (%) Container CPU sys utilization trigger threshold
cpuidle.usage_threshold 90 (%) Container total CPU utilization trigger threshold
cpuidle.delta_user_threshold 45 (%) Container CPU user utilization delta trigger threshold
cpuidle.delta_sys_threshold 20 (%) Container CPU sys utilization delta trigger threshold
cpuidle.delta_usage_threshold 55 (%) Container total CPU utilization delta trigger threshold
cpuidle.interval 10 (s) Detection interval
cpuidle.interval_tracing 1800 (s) Per-container cooldown period between triggers
cpuidle.run_tracing_tool_timeout 10 (s) perf flame graph collection timeout
cpusys.sys_threshold 45 (%) Host CPU sys utilization trigger threshold
cpusys.delta_sys_threshold 20 (%) Host CPU sys utilization delta trigger threshold
cpusys.interval 10 (s) Detection interval
cpusys.interval_tracing 1800 (s) Global cooldown period between triggers
cpusys.run_tracing_tool_timeout 10 (s) perf flame graph collection timeout
dload.threshold_load 5 Container D-state process load EMA trigger threshold
dload.interval 10 (s) Detection interval
dload.interval_tracing 1800 (s) Per-container cooldown period between triggers
iotracing.rbps_threshold 2000 (MB/s) Disk read throughput trigger threshold
iotracing.wbps_threshold 1500 (MB/s) Disk write throughput trigger threshold
iotracing.util_threshold 90 (%) Disk IO utilization trigger threshold
iotracing.await_threshold 100 (ms) Disk IO average wait time trigger threshold
iotracing.run_tracing_tool_timeout 10 (s) IO call stack collection timeout
iotracing.max_proc_dump 10 Maximum number of high-IO processes to collect
iotracing.max_files_per_proc_dump 5 Maximum open files to collect per process
memburst.delta_memory_burst 100 (%) Anonymous memory growth rate threshold relative to the oldest sample in the sliding window (100% means ≥ 2× triggers)
memburst.delta_anon_threshold 70 (%) Anonymous memory as a percentage of total host memory threshold
memburst.interval 10 (s) Detection interval
memburst.interval_tracing 1800 (s) Cooldown period between triggers
memburst.sliding_window_length 60 Sliding window sample count (corresponding to 600 seconds of history)
memburst.dump_process_max_num 10 Maximum number of top memory-consuming processes to collect

Event List

Event Name (tracer_name) Target Trigger Condition Typical Scenario
cpusys Host sys > 45% and delta_sys > 20% Kernel-mode CPU spike, syscall hotspot
cpuidle Container (user>75% and delta_user>45%) or (sys>45% and delta_sys>20%) or (total>90% and delta_total>55%) Container CPU spike, hotspot function analysis
dload Container D-state process load EMA > 5 D-state process accumulation, IO blocking
iotracing Host Any IO metric exceeds threshold for two consecutive samples Saturated disk IO, high IO wait latency
memburst Host Anonymous memory ≥ 2× oldest window sample and ≥ 70% of total memory Memory burst allocation, OOM precursor

Fields

All event records include the following common fields:

  • hostname: Physical host hostname
  • region: Availability zone of the physical host
  • uploaded_time: Data upload timestamp
  • container_id: Container ID if the event is associated with a container
  • container_hostname: Container hostname if the event is associated with a container
  • container_host_namespace: Kubernetes namespace of the container
  • container_type: Container type (e.g., normal, sidecar)
  • container_qos: Container QoS level
  • tracer_name: Event name (e.g., cpusys, memburst)
  • tracer_id: Tracing session ID
  • tracer_time: Time when the tracing was triggered
  • tracer_type: Trigger type (manual or automatic)
  • tracer_data: Event-specific private data (see individual event descriptions below)

1. cpusys

Description Periodically reads /proc/stat to calculate host CPU sys utilization and the delta between consecutive samples. When sys utilization exceeds the threshold (default 45%) and the delta exceeds its threshold (default 20%), a system-wide perf sampling run is triggered to generate a full-host CPU flame graph. A 30-minute global cooldown prevents repeated triggers.

Storage Event data is automatically stored in Elasticsearch or a local disk file.

Sample Data

{
    "tracer_name": "cpusys",
    "tracer_data": {
        "system_percent": 52,
        "system_percent_threshold": 45,
        "system_percent_delta": 25,
        "system_percent_delta_threshold": 20,
        "flamedata": [
            {"level": 0, "value": 1000, "self": 0, "label": "all"},
            {"level": 1, "value": 350, "self": 350, "label": "do_syscall_64"}
        ]
    }
}

Field Descriptions

  • system_percent: Host CPU sys utilization at trigger time (%)
  • system_percent_threshold: sys utilization trigger threshold (%)
  • system_percent_delta: sys utilization delta between consecutive samples (%)
  • system_percent_delta_threshold: sys delta trigger threshold (%)
  • flamedata: Flame graph frame data from perf sampling. Each frame contains:
    • level: Call stack depth level
    • value: Sample count for this frame including descendant frames
    • self: Sample count for this frame excluding descendant frames
    • label: Function or process name label

2. cpuidle

Description Periodically reads container cgroup CPU statistics to calculate container CPU user, sys, and total utilization along with their inter-sample deltas. A trigger fires if any of the following conditions holds: (user>75% and delta_user>45%), or (sys>45% and delta_sys>20%), or (total>90% and delta_total>55%). Container-scoped perf sampling is then run to generate a flame graph. A 30-minute per-container cooldown prevents repeated triggers. Specific containers can be excluded via the filter configuration.

Storage Event data is automatically stored in Elasticsearch or a local disk file.

Sample Data

{
    "tracer_name": "cpuidle",
    "tracer_data": {
        "user_percent": 80,
        "user_percent_threshold": 75,
        "user_percent_delta": 48,
        "user_percent_delta_threshold": 45,
        "system_percent": 12,
        "system_percent_threshold": 45,
        "system_percent_delta": 5,
        "system_percent_delta_threshold": 20,
        "total_percent": 92,
        "total_percent_threshold": 90,
        "total_percent_delta": 53,
        "total_percent_delta_threshold": 55,
        "flamedata": [
            {"level": 0, "value": 1000, "self": 0, "label": "all"},
            {"level": 1, "value": 800, "self": 800, "label": "java/com.example.App.main"}
        ]
    }
}

Field Descriptions

  • user_percent / user_percent_threshold: Container CPU user utilization at trigger time (%) and its threshold
  • user_percent_delta / user_percent_delta_threshold: User utilization inter-sample delta (%) and its threshold
  • system_percent / system_percent_threshold: Container CPU system utilization at trigger time (%) and its threshold
  • system_percent_delta / system_percent_delta_threshold: System utilization inter-sample delta (%) and its threshold
  • total_percent / total_percent_threshold: Container total CPU utilization at trigger time (%) and its threshold
  • total_percent_delta / total_percent_delta_threshold: Total utilization inter-sample delta (%) and its threshold
  • flamedata: Container-scoped perf flame graph frame data; field meanings same as cpusys

3. dload

Description Reads container process states via netlink and cgroup, then computes an exponential weighted moving average (EMA) of the load contribution from uninterruptible (D-state) processes per container. When the EMA exceeds the threshold (default 5), kernel call stacks are collected for all D-state processes inside the container and on the host. Known-issue filtering (issues_list) reduces false positives. A 30-minute per-container cooldown applies.

Storage Event data is automatically stored in Elasticsearch or a local disk file.

Sample Data

{
    "tracer_name": "dload",
    "tracer_data": {
        "threshold": 5,
        "nr_sleeping": 120,
        "nr_running": 4,
        "nr_stopped": 0,
        "nr_uninterruptible": 8,
        "nr_iowait": 3,
        "load_avg": 7.23,
        "dload_avg": 6.81,
        "known_issue": "",
        "stack": "task:java            state:D stack:    0 pid: 12345 tgid: 12345 ...\n  io_schedule+0x18/0x40\n  ext4_file_write_iter+0x..."
    }
}

Field Descriptions

  • threshold: D-state load EMA trigger threshold
  • nr_sleeping: Number of sleeping processes in the container
  • nr_running: Number of running processes in the container
  • nr_stopped: Number of stopped processes in the container
  • nr_uninterruptible: Number of uninterruptible (D-state) processes in the container
  • nr_iowait: Number of IO-waiting processes in the container
  • load_avg: Container load average at trigger time
  • dload_avg: Container D-state load EMA value at trigger time
  • known_issue: Matched known issue description (empty if none matched)
  • stack: Kernel call stacks of D-state processes (multi-process, multi-line text)

4. iotracing

Description Polls /proc/diskstats at 5-second intervals to calculate per-disk read/write throughput, IO utilization, and IO wait time. md devices are excluded automatically. A trigger fires when any metric exceeds its threshold for two consecutive samples. On trigger, the system collects a list of high-IO processes (with per-process read/write byte counts and open file details) and kernel call stacks of processes waiting in IO scheduling.

Storage Event data is automatically stored in Elasticsearch or a local disk file.

Sample Data

{
    "tracer_name": "iotracing",
    "tracer_data": {
        "reason_snapshot": {
            "type": "ioutil",
            "device": "sda",
            "iostatus": {
                "read_bps": 120,
                "read_iops": 450,
                "read_await": 12,
                "write_bps": 2100,
                "write_iops": 890,
                "write_await": 145,
                "io_util": 95,
                "queue_size": 32
            }
        },
        "process_io_data": [
            {
                "pid": 12345,
                "comm": "java",
                "container_hostname": "app-pod-xxx",
                "fs_read": 0,
                "fs_write": 52428800,
                "disk_read": 0,
                "disk_write": 49152000,
                "file_stat": ["/data/logs/app.log"],
                "file_count": 1
            }
        ],
        "timeout_io_stack": [
            {
                "pid": 12345,
                "comm": "java",
                "container_hostname": "app-pod-xxx",
                "latency_us": 250000,
                "stack": {
                    "back_trace": [
                        "io_schedule+0x18/0x40",
                        "ext4_file_write_iter+0x2a0/0x4c0"
                    ]
                }
            }
        ]
    }
}

Field Descriptions

  • reason_snapshot: Snapshot of the condition that triggered IO collection
    • type: Trigger type (ioutil IO utilization / read_bps read throughput / write_bps write throughput / read_await read wait time / write_await write wait time)
    • device: Name of the disk device that exceeded the threshold
    • iostatus: Disk IO metric snapshot at trigger time (read_bps/write_bps in MB/s, read_await/write_await in ms, io_util in %, queue_size is queue depth)
  • process_io_data: List of high-IO processes. Each record contains:
    • pid / comm: Process PID and name
    • container_hostname: Container hostname of the process (empty for host processes)
    • fs_read / fs_write: Bytes read/written at the filesystem layer
    • disk_read / disk_write: Bytes actually read/written at the disk layer
    • file_stat: List of file paths currently open by the process
    • file_count: Total number of files open by the process
  • timeout_io_stack: Call stacks of processes waiting in IO scheduling. Each record contains:
    • pid / comm: Process PID and name
    • container_hostname: Container hostname of the process
    • latency_us: IO wait duration (microseconds)
    • stack.back_trace: List of kernel call stack frames

5. memburst

Description Periodically samples host anonymous memory usage and maintains a sliding window of 60 samples (corresponding to 600 seconds). A trigger fires when current anonymous memory is ≥ 2× the oldest sample in the window and anonymous memory accounts for ≥ 70% of total host memory. On trigger, the top N processes by memory consumption (default 10) are collected, recording their PID, process name, and RSS memory size. A 30-minute cooldown applies.

Storage Event data is automatically stored in Elasticsearch or a local disk file.

Sample Data

{
    "tracer_name": "memburst",
    "tracer_data": {
        "top_memory_usage": [
            {
                "pid": 3456,
                "process_name": "java",
                "memory_size": 8589934592
            },
            {
                "pid": 3789,
                "process_name": "python3",
                "memory_size": 2147483648
            }
        ]
    }
}

Field Descriptions

  • top_memory_usage: List of top memory-consuming processes sorted by RSS in descending order. Each record contains:
    • pid: Process PID
    • process_name: Process name
    • memory_size: Process RSS memory usage (bytes)

⚙️ Principle

Architecture

AutoTracing is built on periodic polling, combined with eBPF call stack collection and perf flame graph generation, to collect anomaly diagnostic data at the kernel level with low overhead.

graph TB
    subgraph "Data Sources"
        P1["/proc/stat\n(Host CPU utilization)"]
        P2["cgroup CPU stats\n(Container CPU utilization)"]
        P3["netlink / cgroup\n(Container process states / load average)"]
        P4["/proc/diskstats\n(Disk IO metrics)"]
        P5["/proc/meminfo\n+ cgroup memory stats"]
    end

    subgraph "HUATUO AutoTracing"
        DT["Threshold Detection\n(sliding window / EMA / two consecutive breaches)"]
        BO["Cooldown\n(30-minute backoff)"]
        PERF["perf Flame Graph\n(system-wide / container-scoped)"]
        BPF["eBPF kprobe\n(IO scheduling latency tracing)"]
        CM["Container Correlation\n(cgroup → ContainerID)"]
    end

    subgraph "Storage"
        ES["Elasticsearch"]
        DISK["Local Disk File"]
    end

    P1 --> DT
    P2 --> DT
    P3 --> DT
    P4 --> DT
    P5 --> DT
    DT --> BO
    BO --> PERF
    BO --> BPF
    PERF --> CM
    BPF --> CM
    CM --> ES
    CM --> DISK

Event Processing Flow

sequenceDiagram
    participant M as Periodic Metric Collection
    participant D as Threshold Detector
    participant B as Cooldown (backoff)
    participant C as On-site Data Collector
    participant S as Storage

    M->>D: Push metrics (every 10s)
    D->>D: Evaluate threshold (sliding window / EMA / consecutive)
    alt Threshold exceeded
        D->>B: Check cooldown state
        alt Trigger allowed
            B->>C: Trigger collection<br/>(perf flame graph / D-state stacks / IO process list)
            C->>C: Correlate container info (cgroup → ContainerID)
            C->>S: Persist data (Elasticsearch / local file)
        else In cooldown
            B-->>D: Skip this trigger
        end
    end

5.4 - Continuous Profiling

🚀 Quick Start

This guide uses build/docker/docker-compose.yml to start all services, create a host CPU profiling job, and view the flame graph in Grafana.

1. Start Services

First, configure Elasticsearch credentials so that huatuo-bamai and huatuo-apiserver can persist profile data. The config files are volume-mounted into the containers, so edit them directly in the project root.

In huatuo-bamai.conf:

[Storage]
    [Storage.Elasticsearch]
        Address = "http://127.0.0.1:9200"
        Index = "huatuo_bamai"
        Username = "elastic"
        Password = "huatuo-bamai"

In huatuo-apiserver.conf:

[Elasticsearch]
    Address = "http://127.0.0.1:9200"
    Username = "elastic"
    Password = "huatuo-bamai"
    Index = "huatuo_bamai"

[Auth]
    [[Auth.Users]]
        ID = "administrator"
        BearerToken = "REPLACE_WITH_RANDOM_HEX"
        Admin = true

Then start all services from the project root:

docker compose --project-directory ./build/docker up

Run without -d to observe startup logs. Add -d for background mode.

Service Role Default Port
huatuo-bamai Agent, runs profiler sampling 19704
huatuo-apiserver API entry point, creates and dispatches jobs 12740
elasticsearch Stores profile data (index: huatuo_bamai) 9200
grafana Flame graph visualization 3000

2. Verify Services

In a new terminal, confirm all services are ready:

# Agent health check
$ curl -s http://localhost:19704/version | jq .data.name

"huatuo-bamai"

# API Server health check
$ curl -s http://localhost:12740/version | jq .data.name

"huatuo-apiserver"

# ES index status
$ curl -s -u elastic:huatuo-bamai "http://localhost:9200/_cat/indices/huatuo_bamai?v"

health status index        uuid                   pri rep docs.count docs.deleted store.size pri.store.size dataset.size
yellow open   huatuo_bamai 147fzHJhQ820GjCKFLh5ZQ   1   1         42            0    297.8kb        297.8kb      297.8kb

Set environment variables for subsequent API calls:

API_BASE="http://127.0.0.1:12740"
API_TOKEN="REPLACE_WITH_RANDOM_HEX"

3. Create a Host CPU Profiling Job

Use c language (native, covers C/C++/Go) to sample the entire host for 30 seconds:

# Use the actual hostname of the node
HOSTNAME=$(hostname)

JOB_ID=$(curl -s -X POST \
  -H "Authorization: Bearer ${API_TOKEN}" \
  -H "Content-Type: application/json" \
  -d "{
    \"type\": \"cpu\",
    \"language\": \"c\",
    \"duration_seconds\": 30,
    \"hostname\": \"${HOSTNAME}\"
  }" \
  "${API_BASE}/v1/profiles" | jq -r .data.id)

echo "Job ID: $JOB_ID"

4. Verify Data in Elasticsearch

Each aggregation window is 10 seconds. A 30-second job produces approximately 3 profile documents. Wait for completion, then verify:

$ curl -s -u elastic:huatuo-bamai "http://localhost:9200/huatuo_bamai/_count" \
  -H "Content-Type: application/json" \
  -d '{"query":{"exists":{"field":"tracer_data.flamedata"}}}' | jq .count

3

5. View the Flame Graph in Grafana

Open the Continuous Profiling (host) dashboard:

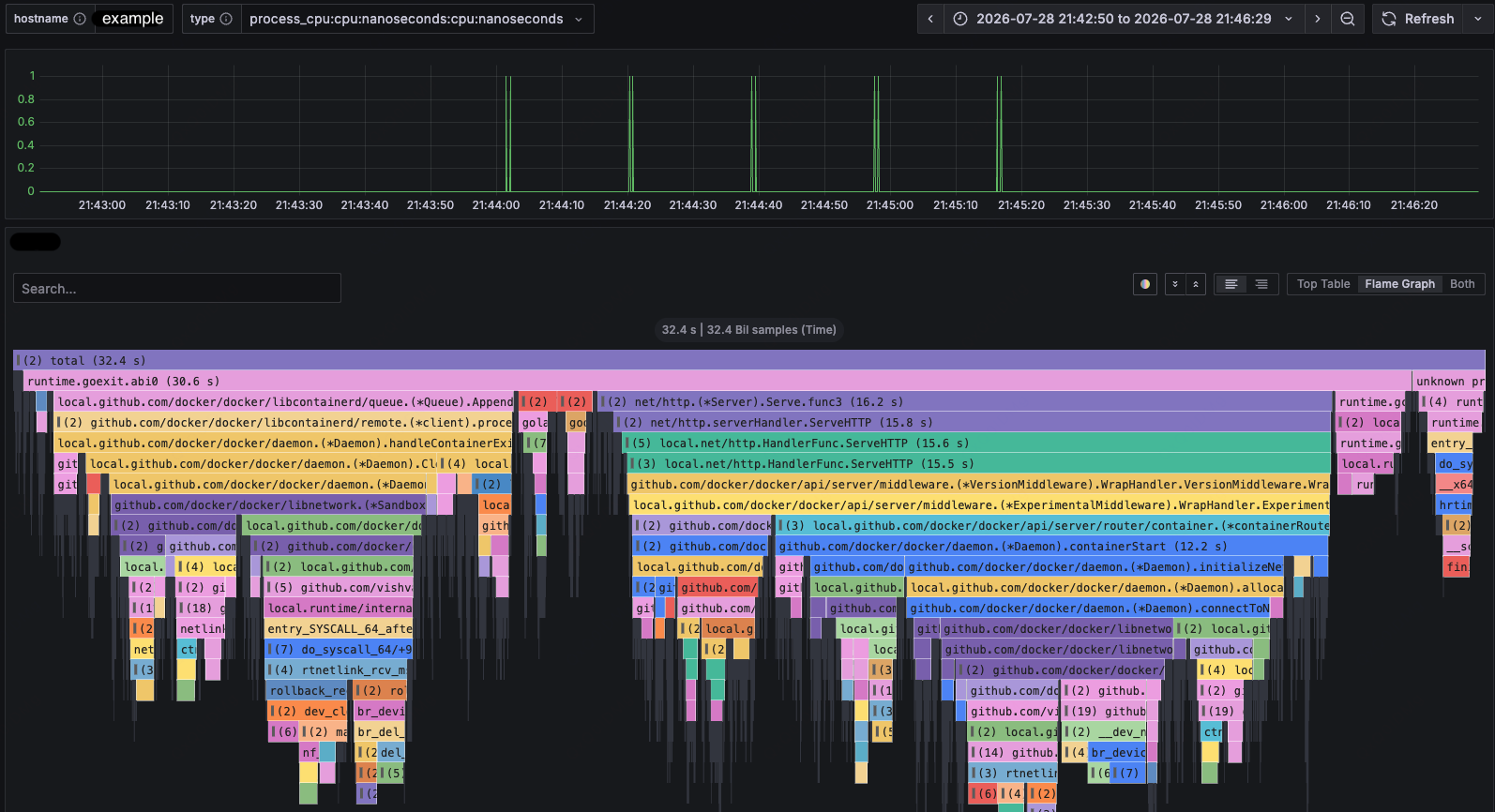

Steps:

  1. Select a time range covering the profiling period
  2. Choose your hostname and set type to process_cpu:cpu:nanoseconds:cpu:nanoseconds
  3. The flame graph loads aggregated call stacks for the selected time range and updates dynamically
  4. Click a frame to zoom in; use the top table for symbol sorting, filtering, and statistics


For more profiling dimensions, see the Profiles API section below.

🌐 Profiles API

huatuo-apiserver exposes /v1/profiles for service-based continuous profiling. Clients can create CPU or memory profiling jobs, query job status and results, and stop or delete jobs. huatuo-apiserver schedules each job on the HUATUO Agent running on the specified node. Profiling results are available through the returned Grafana URL or the raw data endpoint.

1. Request Conventions

By default, huatuo-apiserver listens on :12740. The following examples use environment variables for the server address and bearer token:

API_BASE="http://127.0.0.1:12740"
API_TOKEN="REPLACE_WITH_RANDOM_HEX"

Every request must pass the configured bearer token:

Authorization: Bearer REPLACE_WITH_RANDOM_HEX

A non-administrator user requires both /v1/profiles and /v1/profiles/** permissions. Permissions may include an HTTP method, such as GET /v1/profiles/**. The API uses the following common JSON response envelope:

{
  "code": 0,
  "message": "success",
  "data": {}
}

2. Query Profiling Capabilities

Before creating a job, query the profiling types, languages, CPU modes, memory modes, and runtime settings supported by the server:

curl -sS \
  -H "Authorization: Bearer ${API_TOKEN}" \
  "${API_BASE}/v1/profiles/capabilities"

The data object contains these fields:

Field Description
types Supported profiling types: cpu and memory
cpu_languages Languages supported by CPU profiling
cpu_modes CPU profiling modes grouped by language
memory_languages Languages supported by memory profiling
memory_modes Memory profiling modes grouped by language; values are accepted by job creation
aggregation_interval_seconds Server-side data aggregation interval
max_concurrent_profilers Maximum number of concurrent profiler processes; 0 disables the limit

CPU profiling supports oncpu and offcpu for c, c++, and go; java and python support only oncpu. Memory profiling supports these combinations:

Language memory_mode Description
c, c++, go virtual_alloc Virtual address-space allocation
c, c++, go physical_alloc Physical page allocation
c, c++, go physical_usage Current physical page residency
java object_alloc JVM object allocation
java object_usage JVM live objects

3. Create a Profiling Job

POST /v1/profiles accepts the following JSON fields:

Field Required Description
type Yes Profiling type: cpu or memory
language Yes Target process language; it must support the selected profiling type
duration_seconds Yes Profiling duration in seconds
hostname Yes Hostname of the node running the target process; used for job scheduling
container_id No Target container ID; omit it to profile the host
binary_match_path No Executable path matcher for Java/Python CPU profiling; native profiling does not support it
memory_mode For memory profiling Memory profiling mode; it must be supported by language

duration_seconds must cover at least two aggregation_interval_seconds periods, and their sum must be less than 3600 seconds. If the same user already has a running profiling job on the same node, the server returns 409 Conflict.

Create a Go CPU profiling job on a host:

curl -sS -i \
  -X POST \
  -H "Authorization: Bearer ${API_TOKEN}" \
  -H "Content-Type: application/json" \
  -d '{
    "type": "cpu",
    "language": "go",
    "duration_seconds": 60,
    "hostname": "node-01"
  }' \
  "${API_BASE}/v1/profiles"

Create a Java live-object profiling job in a container:

curl -sS -i \
  -X POST \
  -H "Authorization: Bearer ${API_TOKEN}" \
  -H "Content-Type: application/json" \
  -d '{
    "type": "memory",
    "language": "java",
    "memory_mode": "object_usage",
    "duration_seconds": 60,
    "container_id": "9f4c2f1a8b7d",
    "hostname": "node-01"
  }' \
  "${API_BASE}/v1/profiles"

A successful request returns 201 Created. The Location response header identifies the new job, and the response body contains the job ID used by subsequent requests:

{
  "code": 0,
  "message": "success",
  "data": {
    "id": "<profile-job-id>"
  }
}

JOB_ID="<profile-job-id>"

4. List Profiling Jobs

GET /v1/profiles supports these query parameters:

Parameter Default Description
container_id None Exact container ID filter (containerID remains accepted for compatibility)
hostname None Exact node hostname filter
status None pending, running, completed, failed, stopped, or timeout
type None cpu or memory; omit it to return both types
limit 50 Page size; must be greater than 0 and is capped at 500
offset 0 Starting offset; must be greater than or equal to 0
sort -created_at created_at, finished_at, hostname, container_id, id, status, or type; prefix with - for descending order

List the 20 most recent running CPU profiling jobs on node-01:

curl -sS -G \
  -H "Authorization: Bearer ${API_TOKEN}" \
  --data-urlencode "hostname=node-01" \
  --data-urlencode "status=running" \
  --data-urlencode "type=cpu" \
  --data-urlencode "limit=20" \
  --data-urlencode "offset=0" \
  --data-urlencode "sort=-created_at" \
  "${API_BASE}/v1/profiles"

data.items contains the job array. data.total is the number of matching jobs before pagination, while data.limit and data.offset are the effective pagination parameters. Non-administrator users can list only jobs they created.

5. Get a Profiling Job

curl -sS \
  -H "Authorization: Bearer ${API_TOKEN}" \
  "${API_BASE}/v1/profiles/${JOB_ID}"

The data object contains the job details:

Field Description
id Profiles API job ID
container_id Target container ID; omitted for host jobs
hostname Target node hostname
type cpu or memory
language Target process language
memory_mode Memory profiling mode; omitted for CPU jobs
binary_match_path Executable path matcher; omitted when unused
status Current job status
duration_seconds Requested profiling duration in seconds
created_at Job creation time
finished_at Terminal status time; null while the job is active
result_url Grafana URL for the result; null until available
status_reason Terminal status details; null when no explanation is needed

Profiling jobs use these statuses:

Status Description
pending The job has been created and is waiting for the Agent
running The Agent is collecting profiling data
completed The job completed successfully
stopped The user or job manager stopped the job
failed The job failed; inspect status_reason for the cause
timeout The job exceeded its allowed execution time

6. Get Raw Profiling Data

GET /v1/profiles/:id/raw returns the raw profiling windows associated with the job. The response can be large, so it can be written directly to a file:

curl -sS \
  -H "Authorization: Bearer ${API_TOKEN}" \
  -o profile-raw.json \
  "${API_BASE}/v1/profiles/${JOB_ID}/raw?limit=100&offset=0"

The profiling windows are in data.items; data.limit, data.offset, and data.has_more describe the page. Each item contains uploaded_at, captured_at, profile_type, and the pprof-compatible profile payload.

7. Stop a Profiling Job

Only jobs in pending or running status can be stopped. The PATCH request accepts only stopped as the status value:

curl -sS \
  -X PATCH \
  -H "Authorization: Bearer ${API_TOKEN}" \
  -H "Content-Type: application/json" \
  -d '{"status":"stopped"}' \
  "${API_BASE}/v1/profiles/${JOB_ID}"

A successful stop returns 200 OK. A job that has already ended returns 400 Bad Request.

8. Delete a Profiling Job

Deletion removes only the job record. Jobs in pending or running status cannot be deleted directly and must be stopped first:

curl -sS -i \
  -X DELETE \
  -H "Authorization: Bearer ${API_TOKEN}" \
  "${API_BASE}/v1/profiles/${JOB_ID}"

A successful deletion returns 204 No Content with no response body. If the job is still active, the endpoint returns 409 Conflict.

📖 profiler CLI Overview

profiler is HUATUO’s standalone performance profiling CLI. It samples host processes or processes inside containers without requiring huatuo-apiserver, Elasticsearch, or Grafana. The tool supports C, C++, Go, Java, and Python processes and writes call stacks as folded stacks or SVG flame graphs.

C, C++, and Go use the eBPF-based native collector to observe on-CPU usage, off-CPU blocking and scheduling delay, virtual memory allocation, physical memory allocation, and physical memory residency. Java uses async-profiler to observe CPU usage, object allocation, and live objects. Python uses py-spy to observe CPU usage. The results can be used to locate hot functions, attribute memory growth, analyze processes inside containers, and preserve performance data for later diagnosis.

The remainder of this section covers standalone use of _output/bin/profiler. For service-based continuous profiling, see the Profiles API section above.

🎯 Use Cases

1. Locate CPU Hotspots and Call Paths

Sample the call stacks of C, C++, Go, Java, or Python processes at a fixed frequency and use stack width to identify the primary consumers of CPU time. The native collector can also limit sampling to selected CPUs with --cpuid, which is useful for analyzing CPU-pinned workloads or per-CPU hotspots.

2. Attribute Native Process Memory

Observe virtual address-space allocation, physical page allocation, and current physical page residency for C, C++, and Go processes. These modes distinguish between how much address space was requested, how much physical memory was allocated, and how much physical memory remains resident. They help locate call paths responsible for mmap activity, page-fault allocation, and resident memory growth.

3. Analyze JVM Object Allocation and Live Objects

Use async-profiler to collect Java object allocation or live-object call stacks. Object allocation profiles help locate high allocation rates and sources of GC pressure. Live-object profiles help identify objects that remain referenced during the collection window and the paths where they were allocated.

4. Analyze Containers and Multi-process Workloads

Use a container ID to resolve and profile target processes inside Docker or containerd workloads. Java and Python also accept comma-separated PID lists and can limit the number of concurrently running collector subprocesses, which is useful for service replicas and parent-child process groups.

🚀 Usage

1. Build and Runtime Requirements

Build all artifacts from the repository root:

make all

The resulting executable is _output/bin/profiler. Native profiling depends on Linux eBPF, perf events, and the BPF objects built from this repository. It generally requires root privileges and a kernel.perf_event_paranoid setting that permits sampling. Java profiling requires async-profiler; --tool-path must point to a directory containing bin/asprof and lib/libasyncProfiler.so. Python profiling requires py-spy; --tool-path must point to a directory containing the py-spy executable.

Display the complete help for the current version:

_output/bin/profiler --help

The basic command structure is:

sudo _output/bin/profiler \
  --type <cpu|memory> \
  --language <c|c++|go|java|python> \
  --pid <pid> \
  --duration 30 \
  --aggr-interval 10 \
  --output-format flamegraph \
  --output-path ./profiles

--type and --language are required. Java, Python, and native memory profiling require exactly one target specified with either --pid or --container-id. Native CPU profiling can sample the entire host when neither target is specified.

2. General CLI Options

Option Default Scope Description
--type, -t None All Profile type: cpu or memory; required
--language, -l None All Target language: c, c++, go, java, or python; required
--pid, -p None All Target PID; Java and Python accept comma-separated PIDs, while native profiling accepts at most one PID
--container-id None All Target container ID; mutually exclusive with --pid
--duration, -d 10 All Total profiling duration in seconds; minimum 1
--aggr-interval 10 All Aggregation interval in seconds; must not exceed the duration
--freq, -F 99 CPU Samples collected per second; maximum 1000 for Java
--output-path . Local output Output directory, not an output file name
--output-format collapsed All collapsed, flamegraph, svg, or remote
--output-storage /var/run/huatuo-toolstream.sock remote Unix socket used for remote upload
--max-concurrent-procs 0 Java, Python Maximum concurrent collector subprocesses; 0 means unlimited
--tool-path None Java, Python Third-party profiler root directory; required
--binary-match-path None Java, Python Executable path used to match target processes
--huatuo-api-address 127.0.0.1:19704 Container targets HUATUO API address used to resolve container metadata
--tracer-id Empty; generated internally for local output All; required for remote Stable profiling task ID used by toolstream and remote storage
--enable-pprof false Profiler itself Expose Go pprof endpoints for the profiler process on :6000
--version-format text Version query Output format for --version: text, json, or short
--help, -h - All Display command help
--version, -v - All Display version and build information

Native profiling options:

Option Default Scope Description
--memory-mode None Native memory, Java memory Memory profiling mode; required with --type memory
--cpuid All CPUs Native CPU Comma-separated CPU list or ranges; off-CPU samples use the task’s switch-out CPU
--cpu-mode oncpu Native CPU oncpu for frequency sampling or offcpu for blocked/runqueue time attribution
--require-hardware-pmu false Native on-CPU Require hardware PMU sampling; fail instead of falling back to the software CPU clock
--offcpu-phase all Native off-CPU Accumulate all, blocked, or runqueue time
--offcpu-min-duration-us 1000 Native off-CPU Discard phases shorter than this duration in microseconds
--offcpu-stats false Native off-CPU Collect BPF diagnostic statistics; adds overhead to error and cleanup paths
--thread-group false Native Also profile other threads in the target PID’s thread group
--physical-memory-probability 100 Native physical memory Physical memory event sampling probability from 1 to 100
--log-bpf-debug false Native Emit BPF debug events; not recommended for normal profiling

Logging options:

Option Default Description
--log-level error trace, debug, info, warn, or error
--log-file stdout Log file path, or stdout
--log-size 100 Log rotation size in MB; 0 disables rotation; applies only to file output
--verbose false Equivalent to --log-level debug --log-file stdout and overrides both explicit logging options

3. Observing C, C++, and Go

C, C++, and Go use the same native eBPF collector; only the --language value changes. CPU mode counts call-stack samples and includes user-space and kernel-space stacks when symbols can be resolved.

sudo _output/bin/profiler \
  --type cpu \
  --language go \
  --pid 12345 \
  --duration 30 \
  --aggr-interval 10 \
  --freq 99 \
  --output-format flamegraph \
  --output-path ./profiles/go-cpu

Add --thread-group to include worker threads in the same process. Add --cpuid 2,4-7 to limit collection to selected CPUs. Native CPU profiling also supports container-level and host-level collection:

Native on-CPU profiling first uses hardware CPU-cycle events and falls back to the software CPU clock when the hardware PMU is unavailable. --freq remains samples per second for either source. Use --require-hardware-pmu when software clock fallback would hide IRQ-disabled CPU time.

# Profile a specific container
sudo _output/bin/profiler \
  --type cpu --language c --container-id <container-id> \
  --duration 30 --aggr-interval 10 \
  --output-format collapsed --output-path ./profiles/container

# Profile the host without specifying a PID or container
sudo _output/bin/profiler \
  --type cpu --language c \
  --duration 30 --aggr-interval 10 \
  --output-format flamegraph --output-path ./profiles/host

To attribute time spent outside the CPU to the call path that descheduled, select off-CPU mode:

sudo _output/bin/profiler \
  --type cpu --language go --pid 12345 --thread-group \
  --cpu-mode offcpu --offcpu-phase all \
  --cpuid 2,4-7 \
  --offcpu-min-duration-us 1000 \
  --duration 30 --aggr-interval 10 \
  --output-format flamegraph --output-path ./profiles/go-offcpu

Off-CPU output is event-driven, so --freq does not apply. With --cpuid, an interval is collected only when the task switches out from a selected CPU; later wakeup or switch-in on another CPU does not change that attribution. Flame graphs use nanoseconds directly and add roots such as off-CPU blocked, scheduling delay (preempted), and scheduling delay (yielded). The all phase includes blocked and runqueue time but keeps them separated by these roots. A single stable BPF stack map is used so a long sleep cannot be resolved against a later rotating stack-map generation.

Native memory profiling supports these dimensions:

--memory-mode Measurement Suitable for
virtual_alloc Virtual address-space allocation and its call stacks Excessive mmap activity and address-space growth
physical_alloc Physical memory newly allocated during the collection window Physical page allocation triggered by page faults and allocation-rate analysis
physical_usage Physical memory still resident at collection time Sources of resident memory and paths retaining physical pages
sudo _output/bin/profiler \
  --type memory \
  --language c++ \
  --memory-mode physical_usage \
  --pid 12345 \
  --thread-group \
  --physical-memory-probability 100 \
  --duration 30 \
  --aggr-interval 10 \
  --output-format flamegraph \
  --output-path ./profiles/native-memory

--physical-memory-probability applies only to physical_alloc and physical_usage. Lowering it reduces processing for high-frequency memory events, but flame-graph values are then estimates based on sampled events rather than counts of every event.

4. Observing Java

Java CPU profiling depends on async-profiler. It supports a single PID, a container, or multiple PIDs:

_output/bin/profiler \
  --type cpu \
  --language java \
  --pid 12345,12346 \
  --tool-path /opt/async-profiler \
  --max-concurrent-procs 2 \
  --duration 30 \
  --aggr-interval 10 \
  --freq 99 \
  --output-format flamegraph \
  --output-path ./profiles/java-cpu

Java memory profiling supports two dimensions:

--memory-mode Measurement Suitable for
object_alloc Objects allocated during the collection window and their allocation call stacks High allocation rates, short-lived objects, and sources of GC pressure
object_usage Live objects and their allocation call stacks Long-lived objects, sources of heap usage, and suspected memory leaks
_output/bin/profiler \
  --type memory \
  --language java \
  --memory-mode object_usage \
  --pid 12345 \
  --tool-path /opt/async-profiler \
  --duration 30 \
  --aggr-interval 10 \
  --output-format flamegraph \
  --output-path ./profiles/java-memory

To target a container, replace --pid with --container-id <container-id>. If a container has multiple candidate processes, use --binary-match-path to select the target executable path.

5. Observing Python

Python currently supports CPU profiling only. --aggr-interval must equal --duration, so one collection produces one aggregation window. --tool-path must point to the directory containing py-spy.

_output/bin/profiler \
  --type cpu \
  --language python \
  --pid 12345,12346 \
  --tool-path /opt/py-spy \
  --max-concurrent-procs 2 \
  --duration 30 \
  --aggr-interval 30 \
  --freq 99 \
  --output-format flamegraph \
  --output-path ./profiles/python-cpu

Python does not support --type memory. Use a separate memory analysis tool for Python memory profiling; the current profiler command does not invoke memray to generate Python memory profiles.

6. Choosing a Flame Graph and Output Format

Format Output When to use it
collapsed perf_<Unix timestamp>.folded; each line contains a semicolon-separated call stack followed by a count Scripted searches, result comparison, or rendering later with another flame-graph tool
flamegraph flamegraph_<Unix timestamp>.svg; an SVG with embedded interaction scripts Default format for manual analysis; supports searching, zooming, and inspecting frame values in a browser
svg The same interactive SVG as flamegraph Compatibility with callers that explicitly request SVG; currently equivalent to flamegraph
remote No local flame graph; uploads pprof-compatible data through a Unix socket Integration with the HUATUO storage pipeline; not suitable for offline viewing

A flame graph shows the call direction from bottom to top. Rectangle width represents the cumulative value for that call stack in the selected profiling mode. For CPU profiles, width represents the proportion of CPU time derived from sample counts. For memory profiles, it represents virtual allocation, physical allocation, physical residency, Java object allocation, or live-object volume, depending on the selected mode. Horizontal position does not represent chronological order.

Example folded stacks:

main;handleRequest;parsePayload 428
main;handleRequest;writeResponse 172

Choose collapsed when you need to retain raw data and later render it with different colors or filters. Choose flamegraph when you want to inspect hotspots directly. remote depends on the HUATUO toolstream Unix socket, requires a non-empty --tracer-id, and should not be selected for standalone offline use.

7. Reproducing Integration Test Examples

The repository’s integration tests provide executable end-to-end examples. Each test creates a target process, runs profiler, and verifies the expected call stack in the output:

# Native CPU
sudo ./integration/run.sh test_profiler_native_cpu.sh

# Native off-CPU blocking and scheduling delay
sudo ./integration/run.sh test_profiler_native_cpu_offcpu.sh

# Native virtual and physical memory
sudo ./integration/run.sh test_profiler_native_mem_virtual_alloc.sh
sudo ./integration/run.sh test_profiler_native_mem_physical_usage.sh

# Java CPU and memory
sudo ./integration/run.sh test_profiler_java_cpu_multi_pid.sh
sudo ./integration/run.sh test_profiler_java_memory_usage_alloc.sh

# Python multi-process CPU
sudo ./integration/run.sh test_profiler_python_cpu_multi_pid.sh

Container, thread-group, and CPU-selection examples are available in test_profiler_native_cpu_container.sh, test_profiler_native_cpu_thread_group.sh, and test_profiler_native_cpu_cpuid.sh, respectively. Run make all first and configure the Java or Python profiler path in integration/env.sh as needed.

⚙️ How It Works

profiler first selects a collector based on the language and profile type. The native on-CPU collector attaches eBPF programs to perf events; off-CPU mode attaches scheduler switch, wakeup, exit, and task-free tracepoints. Native memory collectors record allocation and release paths through kernel events. The Java and Python collectors start async-profiler and py-spy subprocesses, respectively. Collected records enter a common aggregation pipeline, which merges counts by call stack and then writes a local file or uploads the result to remote storage.

flowchart LR
    CLI[profiler CLI options] --> Select{Language and profile type}
    Select -->|C/C++/Go| Native[Native eBPF collector]
    Select -->|Java| Java[async-profiler]
    Select -->|Python| Python[py-spy]
    Native --> Queue[Sample record queue]
    Java --> Queue
    Python --> Queue
    Queue --> Aggregate[Aggregate by call stack]
    Aggregate --> Folded[Collapsed stacks]
    Aggregate --> SVG[Interactive SVG flame graph]
    Aggregate --> Remote[Remote upload through Unix socket]

--duration controls the collection lifetime, while --aggr-interval controls the snapshot interval for remote uploads. Local collapsed, flamegraph, and svg modes write the final aggregate when collection ends. remote creates and uploads snapshots at the aggregation interval. The queue decouples collection from symbolization, aggregation, and output so file rendering does not block the sampling path.

🌟 Conclusion

5.5 - Hardware Events

Overview

HUATUO monitors Linux kernel hardware error events with zero instrumentation overhead and minimal runtime cost. Structured fault records are persisted to storage and exposed as Prometheus counters for use by alerting and visualization systems.

Use Cases

  • General-Purpose Computing

    In large-scale server clusters, memory ECC correctable errors (CE) are common low-severity fault signals. A single CE is automatically corrected by hardware. If the CE rate on a given DIMM rises persistently, however, it indicates impending memory failure. HUATUO detects such events in real time via EDAC/MCE tracepoints, enabling operations teams to perform preventive replacements before complete memory failure and unplanned downtime occur.

  • AI Computing

    AI training workloads require high hardware reliability. A single faulty PCIe device can cause an entire training job to fail. HUATUO supports PCIe AER event monitoring and reports link-layer errors on GPUs, NVLink bridges, and RDMA NICs (such as InfiniBand HCAs) — including Data Link Protocol Errors and ECRC Errors — in real time. This data provides hardware health status to AI cluster schedulers, supporting rapid fault node isolation and workload migration.

  • Storage Services

    Storage servers typically host large numbers of PCIe NVMe SSDs and HBA cards. PCIe AER errors such as Completion Timeout and Malformed TLP are early indicators of storage device performance degradation or drive dropout. HUATUO monitoring data can be correlated with storage I/O latency metrics to support root cause analysis.

  • Security and Compliance

    Industries with strict compliance requirements — such as finance and government — must maintain a complete history of all hardware faults. Structured event records (including timestamps, device identifiers, error types, and raw register values) can serve directly as compliance evidence for hardware health logs.

How It Works

HUATUO observes the kernel’s MCE, EDAC, ACPI GHES, and PCIe AER subsystems via eBPF. When an eBPF tracepoint fires, the raw event is written to a BPF Perf Event Buffer. A user-space process reads the event, parses the struct fields, generates a structured record, and persists it locally or to a remote store. The overall architecture is shown below:

RAS Architecture

The Linux kernel’s RAS framework consists of several loosely coupled subsystems. Together, they cover the full hardware fault spectrum — from CPU internal errors to PCIe link errors.

graph TB
    subgraph HW["Hardware Layer"]
        CPU["CPU\nx86 / x86-64"]
        MEM["Memory\nDDR4/DDR5 DIMM ECC"]
        Platform["Platform Hardware\nSoC / PCH"]
        PCIeDev["PCIe Devices\nGPU / NVMe / HCA / FPGA"]
    end

    subgraph FW["Firmware Layer"]
        BIOS["BIOS / UEFI\nCPER Buffer (APEI)"]
    end

    subgraph Kernel["Linux Kernel RAS Subsystems"]
        MCE["MCE Subsystem\narch/x86/kernel/cpu/mce"]
        EDAC["EDAC Subsystem\ndrivers/edac"]
        GHES["ACPI GHES Subsystem\ndrivers/acpi/apei"]
        AER["PCIe AER Subsystem\ndrivers/pci/pcie/aer"]
    end

    subgraph TP["Kernel Tracepoints"]
        TP1["tracepoint/mce/mce_record"]
        TP2["tracepoint/ras/mc_event"]
        TP3["tracepoint/ras/non_standard_event"]
        TP4["tracepoint/ras/aer_event"]
    end

    CPU -->|"MCE Exception (#MC) + THR Interrupt"| MCE
    MEM -->|ECC Error| EDAC
    Platform -->|APEI Error Record| BIOS
    BIOS -->|CPER Buffer| GHES
    PCIeDev -->|AER Interrupt| AER

    MCE --> TP1
    EDAC --> TP2
    GHES --> TP3
    AER --> TP4

  • MCE

    MCE (Machine Check Architecture) is a hardware fault-tolerance mechanism built into the processor, defined by Intel and AMD in their respective architecture specifications. The processor contains a set of Machine Check Banks, each corresponding to a class of hardware resource (e.g., L1 cache, L2 cache, memory controller, TLB). When a hardware error is detected, the MSRs of the corresponding bank (MCi_STATUS, MCi_ADDR, MCi_MISC) are populated with error information, and an MCE exception is raised.

  • MCE THR

    MCE supports a threshold interrupt mechanism. When the count of a given class of correctable errors exceeds a configured threshold, a dedicated APIC interrupt (THR) is triggered instead of escalating to a full MCE exception. This allows the operating system to issue an early alert when the error rate rises abnormally, rather than waiting until the error becomes uncorrectable.

  • EDAC

    EDAC (Error Detection And Correction) is the Linux kernel subsystem dedicated to handling memory and hardware ECC errors. Its stated goal is “to detect and report errors occurring in the computer hardware running under Linux.” EDAC drivers communicate directly with the memory controller and parse the physical location of ECC errors — including memory controller index, channel, slot, and row/column address.

  • ACPI GHES

    ACPI GHES (Generic Hardware Error Source) is a platform-agnostic hardware error reporting mechanism defined by the BIOS/UEFI through the APEI (ACPI Platform Error Interface) specification. The BIOS firmware writes hardware errors that cannot be handled by a specific driver — such as SoC-internal errors or platform-specific memory errors — into CPER (Common Platform Error Record) buffers described in the GHES descriptor. The Linux kernel reads these CPER records and reports the “non-standard” error sections that cannot be parsed by a standard subsystem.

  • PCIe AER

    PCIe AER (Advanced Error Reporting) is an error reporting mechanism defined in the PCIe specification. It enables PCIe devices to report link-layer and transaction-layer errors to the operating system with precision.

Metrics Reference

  • RAS Metrics

    # HELP huatuo_bamai_ras_hw_total total RAS hardware error events by source type
# TYPE huatuo_bamai_ras_hw_total counter
huatuo_bamai_ras_hw_total{host="hostname",region="dev",type="acpi"} 0
huatuo_bamai_ras_hw_total{host="hostname",region="dev",type="aer"} 0
huatuo_bamai_ras_hw_total{host="hostname",region="dev",type="edac"} 0
huatuo_bamai_ras_hw_total{host="hostname",region="dev",type="mce"} 0
huatuo_bamai_ras_hw_total{host="hostname",region="dev",type="thr"} 0

  • NIC Packet Drop

    huatuo_bamai_netdev_hw_rx_dropped_total{host="hostname",region="dev",device="eth0",driver="ixgbe"} 0

  • RDMA PFC

    # HELP huatuo_bamai_netdev_dcb_pfc_received_total count of the received pfc frames
# TYPE huatuo_bamai_netdev_dcb_pfc_received_total counter
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="0",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="1",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="2",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="3",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="4",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="5",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="6",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_received_total{device="enp6s0f0np0",host="hostname",prio="7",region="dev"} 0
# HELP huatuo_bamai_netdev_dcb_pfc_send_total count of the sent pfc frames
# TYPE huatuo_bamai_netdev_dcb_pfc_send_total counter
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="0",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="1",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="2",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="3",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="4",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="5",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="6",region="dev"} 0
huatuo_bamai_netdev_dcb_pfc_send_total{device="enp6s0f0np0",host="hostname",prio="7",region="dev"} 0

  • Storage

    Every hardware error event is persisted in structured form — either to the local huatuo-local directory or to a remote store such as Elasticsearch or OpenSearch. All records share the following common fields:

    {
    "hostname": "hostname",
    "region": "dev",
    "uploaded_time": "2026-03-05T18:28:39.153438921+08:00",
    "time": "2026-03-05 18:28:39.153 +0800",
    "tracer_name": "netdev_event",
    "tracer_time": "2026-03-05 18:28:39.153 +0800",
    "tracer_type": "auto",
    "tracer_data": {
        "ifname": "eth0",
        "index": 2,
        "linkstatus": "linkstatus_admindown",
        "mac": "5c:6f:11:11:11:11",
        "start": false
    }
}

    The linkstatus field takes the following values:

    • linkstatus_adminup — brought up by an administrator, e.g., ip link set dev eth0 up
    • linkstatus_admindown — brought down by an administrator, e.g., ip link set dev eth0 down
    • linkstatus_carrierup — physical link restored
    • linkstatus_carrierdown — physical link failure
    {
    "hostname": "localhost",
    "region": "xxx",
    "uploaded_time": "2026-05-11T16:58:47.328548319+08:00",
    "time": "2026-05-11 16:58:47.328 +0800",
    "tracer_name": "ras",
    "tracer_time": "2026-05-11 16:58:47.328 +0800",
    "tracer_type": "auto",
    "tracer_data": {
        "dev": "MEM",
        "event": "EDAC",
        "type": "Corrected",
        "timestamp": 537792166031,
        "info": "{\"err_count\":0,\"err_type\":\"Corrected\",\"err_msg\":\"memory read error\",\"label\":\"CPU_SrcID#0_Ha#0_Chan#0_DIMM#0\",\"mc_index\":0,\"top_layer\":0,\"mid_layer\":0,\"low_layer\":-1,\"addr\":7860269056,\"grain\":128,\"syndrome\":0,\"driver\":\" area:DRAM err_code:0000:009f socket:0 ha:0 channel_mask:1 rank:0\"}"
    }
}
    Field Description
    Device Identifier of the hardware component where the error occurred (e.g., CPU/MEM, MEM, ACPI, PCIe 0000:01:00.0)
    Event Event subtype (MCE, EDAC, APIC, AER)
    ErrType Error severity level (see table below)
    Timestamp Timestamp
    Info Detailed fields for the specific event
    Error Type Description Typical Sources
    Corrected Automatically corrected by hardware; transparent to the OS MCE CE, EDAC CE, ACPI Sev=1, AER Severity=2
    UncorrectedRecoverable Not corrected by hardware, but recoverable by system software MCE UE, EDAC UE, ACPI Sev=2, AER Severity=0
    UncorrectedDeferred Not corrected by hardware; requires deferred handling MCE MCI_STATUS_DEFERRED, EDAC HW_EVENT_ERR_DEFERRED
    UncorrectedFatal Fatal hardware error; requires immediate reboot EDAC FATAL, ACPI Sev=3, AER Severity=0
    Info Error type for which the system is expected to log informational records EDAC HW_EVENT_ERR_INFO, ACPI Sev=0

Field Reference

  • MCE

    Monitored components: CPU cores, L1/L2/L3 cache, TLB, memory controller (IMC), and interconnect buses (QPI/UPI/Infinity Fabric).

    Field MSR Source Description
    mcg_cpu_cap MCG_CAP Machine Check Global Capability Register. The lower 8 bits (Count) indicate the number of MC Banks in the system.
    mcg_msr_status MCG_STATUS Machine Check Global Status Register.
    banks_msr_status MCi_STATUS Bank Status Register (primary field). The lower 16 bits contain the MCA error code, classifying the error type (e.g., memory hierarchy error, bus error). The upper bits include control flags: UC (uncorrectable), EN (enabled), MISCV (MISC valid), ADDRV (ADDR valid), and PCC (processor context corrupt).
    banks_msr_addr MCi_ADDR Physical memory address where the error occurred (valid only when MCi_STATUS.ADDRV=1). Used to identify the faulty DIMM or cache line.
    banks_msr_misc MCi_MISC Supplementary information register (valid only when MCi_STATUS.MISCV=1).
    mca_synd_msr MCA_SYND Syndrome register (AMD-specific).
    mca_ipid_msr MCA_IPID Instance ID register (AMD-specific).
    instr_pointer RIP register Instruction pointer at the time of the MCE (reliable only when MCG_STATUS.EIPV=1).
    tsc_timestamp TSC CPU timestamp counter value at the time of the error (can be converted to absolute time using the kernel clock).
    walltime Kernel time Unix timestamp (in seconds) at the time of the error.
    cpu — Logical CPU number where the MCE occurred.
    cpuid CPUID CPUID value of the CPU where the MCE occurred (includes Family, Model, and Stepping).
    apicid APIC ID APIC ID of the CPU where the MCE occurred (can be mapped to a physical core or hyperthread).
    socketid — CPU socket number (Socket ID). Used to identify physical CPUs in multi-socket servers.
    code_seg CS register Code segment register value at the time of the MCE (used to determine privilege level).
    bank — Bank number (typically: Bank 0 = L1I, Bank 1 = L1D, Bank 2 = L2, Bank 4+ = memory controller; numbering varies by platform).
    cpuvendor — CPU vendor identifier: 0 = Intel, 1 = Unknown, 2 = AMD.

  • EDAC

    Monitored components: memory ECC errors.

    Field Description
    err_count Cumulative error count for this event.
    err_type Error severity level.
    err_msg Human-readable error description string (e.g., "CE memory read error on CPU#0Channel#0_DIMM#0 (channel:0 slot:0 page:0x12345 offset:0x0 grain:8 syndrome:0x0)").
    label Physical DIMM location label (e.g., "CPU_SrcID#0_Ha#0_Chan#0_DIMM#0"). Generated by the EDAC driver based on DIMM topology; maps directly to a physical memory slot in the system.
    mc_index Memory controller index (0-based). Distinguishes between IMCs on servers with multiple memory controllers.
    top_layer Top-layer index in the memory hierarchy (typically the channel number; -1 indicates invalid).
    mid_layer Middle-layer index in the memory hierarchy (typically the slot or rank number; -1 indicates invalid).
    low_layer Bottom-layer index in the memory hierarchy (typically the bank or row number; -1 indicates invalid).
    addr Physical memory address where the error occurred (64-bit unsigned integer; 0 indicates an invalid address).
    grain Error granularity (grain size, in bytes). Represents the smallest memory unit that may be affected. Computed as 1 << GrainBits. For example, grain=8 means the error is localized to an 8-byte unit (a cache line sub-block).
    syndrome ECC syndrome value.
    driver EDAC driver name (e.g., "amd64_edac", "sb_edac").

  • ACPI GHES

    Monitored components: platform-specific hardware errors.

    Field Description
    severity Raw ACPI/CPER error severity value.
    sec_type Error section type GUID (16 bytes, hexadecimal string). Defined by the UEFI specification and hardware vendors. Identifies the hardware category of the error record (e.g., memory error section, PCIe error section, ARM processor error section).
    fru_id FRU (Field Replaceable Unit) identifier GUID (16 bytes, hexadecimal string). Uniquely identifies the replaceable hardware component where the error occurred (e.g., a specific DIMM or PCIe card).
    fru_text Human-readable FRU description string (e.g., "CPU0_DIMM_A1").
    data_len Raw error data payload length (in bytes).
    raw_data Hexadecimal dump of raw error data (space-separated bytes). Used for in-depth diagnostics; must be interpreted with the relevant hardware vendor documentation.

  • PCIe AER

    Monitored devices include GPUs, NVMe SSDs, RDMA NICs/HCAs, FPGA accelerator cards, and PCIe switches.

    Field Description
    dev_name PCIe device name (BDF format), e.g., "0000:03:00.0" (Domain:Bus:Device.Function).
    err_type Error severity level (Corrected / Uncorrected / Fatal).
    err_reason Error reason description string. Decoded from the bits of the AER status register (see the tables below).
    tlp_header TLP (Transaction Layer Packet) header quad-word that triggered the error (format: {dword0, dword1, dword2, dword3}, hexadecimal). The TLP header contains the transaction type, address, and requester ID — key data for root cause analysis. Displays "not available" when TlpHeaderValid=0.

  • PCIe Correctable Error Types

    Bitmask Description
    0x00000001 Receiver Error. The physical layer received a data symbol that does not conform to the specification. Typically caused by signal integrity issues such as excessive cable length or impedance mismatch.
    0x00000040 Bad TLP. The LCRC (link-layer CRC) check on a TLP failed, indicating bit flips during transmission. The PCIe link layer automatically retransmits the TLP.
    0x00000080 Bad DLLP. A link-layer control packet (such as ACK/NAK or flow control update) failed its CRC check.
    0x00000100 Replay Number Rollover. The REPLAY_NUM field tracks retransmit count. This error indicates too many retransmissions since the last ACK, typically signaling sustained poor link quality.
    0x00001000 Replay Timer Timeout. The sender did not receive an ACK within the allowed time, triggering TLP retransmission. Persistent occurrence indicates abnormal link latency or insufficient receiver processing capacity.
    0x00002000 Advisory Non-Fatal Error. An uncorrectable error that software has downgraded to correctable (requires the ANFE feature in the AER capability). Commonly seen when an Unsupported Request Completion is received.
    0x00004000 Corrected Internal Error. An internal ECC or parity error that the device corrected autonomously.
    0x00008000 Header Log Overflow. The AER header log register is full. TLP headers for subsequent errors cannot be recorded, though errors are still counted.

  • PCIe Uncorrectable Error Types

    Bitmask Description
    0x00000001 Undefined. A reserved bit was set, typically indicating non-compliant firmware or hardware behavior.
    0x00000010 Data Link Protocol Error. A packet that violates the DLLP protocol specification was received. This is a severe link-layer fault.
    0x00000020 Surprise Down Error. The physical link disconnected without a Hot-Plug notification (e.g., due to unexpected power loss or poor contact). This is a high-severity error in hot-plug environments.
    0x00001000 Poisoned TLP. A TLP was received with the Error Poisoning (EP) bit set to 1, indicating that the upstream sender was aware of data corruption. This mechanism propagates and isolates errors to prevent silent data corruption.
    0x00002000 Flow Control Protocol Error. A packet that violates PCIe flow control credit rules was received. This is a severe protocol violation.
    0x00004000 Completion Timeout. The requester sent a non-posted transaction (e.g., Memory Read) but did not receive a Completion within the required timeout. Commonly caused by NVMe firmware issues, RDMA NIC driver bugs, or PCIe link interruptions.
    0x00008000 Completer Abort. The completer returned an explicit CA (Completer Abort) status, indicating that the request was rejected.
    0x00010000 Unexpected Completion. A Completion was received that could not be matched to any outstanding request (tag mismatch). Typically caused by device firmware bugs or data path errors.
    0x00020000 Receiver Overflow. The receiver’s flow control credits indicated available buffer space, but an overflow occurred. This is a severe flow control violation.
    0x00040000 Malformed TLP. The packet header contains fields that violate the specification (e.g., illegal length, reserved bits set, invalid address range). Typically indicates a severe firmware defect.
    0x00080000 ECRC Error. The ECRC check on the TLP trailer failed (requires ECRC support on both endpoints). Indicates data corruption across the entire transmission path, including internal PCIe switch fabric. A key metric in high-reliability environments.
    0x00100000 Unsupported Request. The completer returned a UR (Unsupported Request) status, indicating that the transaction type or address range is not supported by the device.
    0x00200000 ACS Violation. PCIe ACS (Access Control Services) prevents peer-to-peer DMA between PCIe devices from bypassing the IOMMU. This error indicates a data access that violates the ACS policy. Requires attention in virtualization security environments.
    0x00400000 Uncorrectable Internal Error. An internal ECC or parity error occurred that the device could not self-correct (e.g., SRAM double-bit error). Typically indicates hardware damage.
    0x00800000 MC Blocked TLP. A PCIe Multicast TLP was blocked by ACS or the Multicast control mechanism.
    0x01000000 AtomicOp Egress Blocked. An AtomicOp request (FetchAdd, Swap, or CAS) was blocked from egressing by ACS. Commonly seen in RDMA or GPU direct-connect configurations.
    0x02000000 TLP Prefix Blocked. A packet with an End-End TLP Prefix was blocked from forwarding by ACS or another mechanism.

Summary

Deploy HUATUO in production to enable hardware error monitoring and proactive operations.

6 - Best Practice

6.1 - Storage Service

📖 Overview

HUATUO supports persisting Linux kernel events collected by the Tracer and AutoTracing data to external storage backends. Both Elasticsearch and OpenSearch are supported.

After serialization to JSON, collected events are written concurrently to the local node directory (huatuo-local/) and the configured remote storage backend. The local directory retains a local copy of events; the remote backend provides durable storage and structured query capabilities.

This document covers configuration and verification for both Elasticsearch and OpenSearch. Examples use Docker deployments. In production, replace the addresses with your actual service endpoints — the configuration format is the same.

🎯 Use Cases

Kubernetes Cloud-Native Fault Tracing

In containerized environments, kernel events such as Pod OOM and node Hung Task are transient — logs are often purged shortly after the event occurs. By writing events to Elasticsearch or OpenSearch, operations teams can query the historical timeline of anomalies by time range and precisely identify the root cause of intermittent failures during post-incident reviews.

AI Compute Cluster Stability Auditing

During long-running GPU training workloads, the historical distribution of events such as ras hardware errors and iotracing I/O latency is critical for capacity planning and hardware health assessment. Persisting collected data enables aggregate queries to establish node stability baselines and supports proactive maintenance decisions.

Compliance and Event Retention

Security compliance standards require that system anomaly events be traceable. Writing HUATUO-captured kernel events to OpenSearch and configuring an index lifecycle policy satisfies compliance requirements for event retention periods and query capabilities.

Observability Platform Integration

Both Elasticsearch and OpenSearch provide native data source integrations with Grafana. Once HUATUO events are written to storage, you can build kernel event trend dashboards in Grafana, overlaid with application-layer metrics for historical analysis and alert review.

💎 Value

Dimension Local Storage Only With External Storage Backend
Data Durability Limited by node disk capacity; may be lost on restart Persisted to distributed storage; supports long-term retention
Query Capability No structured queries; relies on file search Full-text search, field filtering, time-range aggregation
Visualization Not supported Direct integration with Grafana, Kibana, and similar platforms
Multi-node Aggregation Data scattered across individual nodes Centralized storage; supports cross-node queries
Compliance Retention Difficult to meet retention requirements Configurable index lifecycle policies; meets compliance retention requirements

🚀 Usage

OpenSearch V2

1. Deploy OpenSearch

docker pull opensearchproject/opensearch:2.6.0
docker run -d --name opensearch --network host \
  -e "discovery.type=single-node" \
  opensearchproject/opensearch:2.6.0

2. Verify Service Status

curl -k -u admin:admin https://localhost:9200

Example response:

{
  "name" : "22ca72df78c0",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "yxb3foceQVKzXXO6bHpPHQ",
  "version" : {
    "distribution" : "opensearch",
    "number" : "2.6.0",
    "build_type" : "tar",
    "build_hash" : "7203a5af21a8a009aece1474446b437a3c674db6",
    "build_date" : "2023-02-24T18:57:04.388618985Z",
    "build_snapshot" : false,
    "lucene_version" : "9.5.0",
    "minimum_wire_compatibility_version" : "7.10.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "The OpenSearch Project: https://opensearch.org/"
}

If verification fails, check the container logs:

docker logs opensearch

3. Configure huatuo-bamai

Add the following configuration to huatuo-bamai.conf. The default username and password for the OpenSearch container image are both admin. For a full description of storage configuration options, see the Configuration Guide.

[Storage.Elasticsearch]
    Address = "https://127.0.0.1:9200"
    Index = "huatuo_bamai"
    Username = "admin"
    Password = "admin"

4. Start huatuo-bamai

Use --config-dir to specify the directory containing the configuration file:

./_output/bin/huatuo-bamai --region dev --config-dir .

When files (e.g., net_rx_latency) appear in the local storage directory huatuo-local/, kernel events have been successfully captured. Query data from OpenSearch with:

curl -k -u admin:admin \
  -X GET "https://localhost:9200/huatuo_bamai/_search?pretty" \
  -H "Content-Type: application/json" \
  -d '{"query": {"match_all": {}}}'

Example response:

{
    "_index" : "huatuo_bamai",
    "_id" : "yjPG_50Bu_OF-hukxKR7",
    "_score" : 1.0,
    "_source" : {
      "hostname" : "hostname",
      "region" : "dev",
      "uploaded_time" : "2026-05-07T00:11:49.753166222Z",
      "time" : "2026-05-07 00:11:49.753 +0000",
      "tracer_name" : "net_rx_latency",
      "tracer_time" : "2026-05-07 00:11:49.753 +0000",
      "tracer_type" : "auto",
      "tracer_data" : {
        "comm" : "<nil>",
        "pid" : 0,
        "where" : "RX_STAGE_NETIF",
        "latency_ms" : 1776078133565,
        "saddr" : "127.0.0.1",
        "daddr" : "127.0.0.1",
        "sport" : 37736,
        "dport" : 9200,
        "seq" : 1080592402,
        "ack_seq" : 2465063876,
        "pkt_len" : 781
      }
    }
}

To get the total document count without listing individual records:

curl -k -u admin:admin -X GET "https://localhost:9200/huatuo_bamai/_count?pretty"

Example response: the count value equals the total number of written records.

{
  "count" : 2680,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  }
}

Elasticsearch V8

1. Deploy Elasticsearch

docker pull docker.elastic.co/elasticsearch/elasticsearch:8.15.5
docker run -d --name elasticsearch --network host \
  -e "discovery.type=single-node" \
  -e "ES_JAVA_OPTS=-Xms1g -Xmx1g" \
  -e "ELASTIC_PASSWORD=123456" \
  docker.elastic.co/elasticsearch/elasticsearch:8.15.5

2. Verify Service Status

curl -k -u elastic:123456 https://localhost:9200

Example response:

{
  "name" : "ab0b562f8dbd",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "aVfOVgJTQXuhZ3HGotK3ww",
  "version" : {
    "number" : "8.15.5",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "b10896bcfe167cce44a84ba2771d101fb596d40d",
    "build_date" : "2024-11-21T22:06:13.985834967Z",
    "build_snapshot" : false,
    "lucene_version" : "9.11.1",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

3. Configure huatuo-bamai

Add the following configuration to huatuo-bamai.conf. The default username for the Elasticsearch container image is elastic; the password is set via the ELASTIC_PASSWORD environment variable. For a full description of storage configuration options, see the Configuration Guide.

[Storage.Elasticsearch]
    Address = "https://127.0.0.1:9200"
    Index = "huatuo_bamai"
    Username = "elastic"
    Password = "123456"

4. Start huatuo-bamai

Use --config-dir to specify the directory containing the configuration file:

./_output/bin/huatuo-bamai --region dev --config-dir .

When files (e.g., net_rx_latency) appear in the local storage directory huatuo-local/, kernel events have been successfully captured. Query data from Elasticsearch with:

curl -k -u elastic:123456 \
  -X GET "https://localhost:9200/huatuo_bamai/_search?pretty" \
  -H "Content-Type: application/json" \
  -d '{"query": {"match_all": {}}}'

Example response:

{
    "_index" : "huatuo_bamai",
    "_id" : "WtNZAJ4BQ8x-thPHEY1i",
    "_score" : 1.0,
    "_source" : {
      "hostname" : "hostname",
      "region" : "dev",
      "uploaded_time" : "2026-05-07T02:51:37.696263325Z",
      "time" : "2026-05-07 02:51:37.696 +0000",
      "tracer_name" : "net_rx_latency",
      "tracer_time" : "2026-05-07 02:51:37.696 +0000",
      "tracer_type" : "auto",
      "tracer_data" : {
        "comm" : "<nil>",
        "pid" : 0,
        "where" : "RX_STAGE_NETIF",
        "latency_ms" : 1776078133565,
        "saddr" : "127.0.0.1",
        "daddr" : "127.0.0.1",
        "sport" : 2379,
        "dport" : 36706,
        "seq" : 950542706,
        "ack_seq" : 1960972383,
        "pkt_len" : 91
      }
    }
}

To get the total document count without listing individual records:

curl -k -u elastic:123456 -X GET "https://localhost:9200/huatuo_bamai/_count?pretty"

Example response: the count value equals the total number of written records.

{
  "count" : 2680,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  }
}

Elasticsearch V7

Elasticsearch V7 uses HTTP by default. Replace https with http in all commands.

1. Deploy Elasticsearch

docker pull docker.elastic.co/elasticsearch/elasticsearch:7.10.1
docker run -d --name elasticsearch --network host \
  -e "discovery.type=single-node" \
  -e "ES_JAVA_OPTS=-Xms1g -Xmx1g" \
  -e "ELASTIC_PASSWORD=123456" \
  docker.elastic.co/elasticsearch/elasticsearch:7.10.1

2. Verify Service Status

curl -k -u elastic:123456 http://localhost:9200

Example response:

{
  "name" : "d88c9e8df48b",
  "cluster_name" : "docker-cluster",
  "cluster_uuid" : "_ZZefWx4SniAc255t_lIVg",
  "version" : {
    "number" : "7.10.1",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "1c34507e66d7db1211f66f3513706fdf548736aa",
    "build_date" : "2020-12-05T01:00:33.671820Z",
    "build_snapshot" : false,
    "lucene_version" : "8.7.0",
    "minimum_wire_compatibility_version" : "6.8.0",
    "minimum_index_compatibility_version" : "6.0.0-beta1"
  },
  "tagline" : "You Know, for Search"
}

3. Configure huatuo-bamai

[Storage.Elasticsearch]
    Address = "http://127.0.0.1:9200"
    Index = "huatuo_bamai"
    Username = "elastic"
    Password = "123456"

4. Start huatuo-bamai

Use --config-dir to specify the directory containing the configuration file:

./_output/bin/huatuo-bamai --region dev --config-dir .

When files (e.g., net_rx_latency) appear in the local storage directory huatuo-local/, kernel events have been successfully captured. Query data from Elasticsearch with:

curl -k -u elastic:123456 \
  -X GET "http://localhost:9200/huatuo_bamai/_search?pretty" \
  -H "Content-Type: application/json" \
  -d '{"query": {"match_all": {}}}'

To get the total document count:

curl -k -u elastic:123456 -X GET "http://localhost:9200/huatuo_bamai/_count?pretty"

⚙️ How It Works

System Architecture

The HUATUO Storage module runs on each node. It writes kernel events captured by the Tracer to the local directory and to Elasticsearch or OpenSearch. Both backends share the same [Storage.Elasticsearch] configuration interface and are differentiated by address.

The remote write path uses the ES/OpenSearch Bulk API (_bulk): events are queued in an in-memory buffer and submitted in batches by background workers based on size and time thresholds, with transport-layer retries on transient failures.

graph TB
    subgraph kernel["Linux Kernel"]
        K1[Kernel Events]
        K2[AutoTracing]
    end

    subgraph huatuo["HUATUO Agent (node-level)"]
        T["Tracer Layer"]
        L["Local Directory\nhuatuo-local/"]
        S["Storage Module\nBulkIndexer Buffer"]
    end

    subgraph backends["Storage Backends"]
        ES[Elasticsearch]
        OS[OpenSearch]
    end

    kernel --> T
    T --> L
    T --> S
    S -->|Bulk API + auto retry| ES
    S -->|Bulk API + auto retry| OS

Write Flow

Save returns immediately after the event is buffered. Background workers flush the buffer to the remote backend when any of the following triggers fire: byte threshold, time threshold, or process shutdown. The local directory write is synchronous and independent of the remote Bulk path.

sequenceDiagram
    participant T as Tracer Layer
    participant L as Local Directory (huatuo-local/)
    participant S as Storage Module (BulkIndexer)
    participant B as ES / OpenSearch

    T->>S: Kernel event captured, serialized to JSON
    par Local path (sync)
        S->>L: Write to local file
    and Remote path (async batch)
        S->>S: Enqueue into bulk buffer, return immediately
        Note over S: Flush on 5 MB / 1 s / shutdown
        S->>B: POST /_bulk (multiple records)
        B-->>S: 200 OK + per-item results
        Note over S: Failed items reported via OnFailure callback
    end

Bulk Write Mechanism

Buffering and Flush Triggers

Parameter Value Meaning
FlushBytes 5 MB Flush when accumulated bytes reach the threshold
FlushInterval 1 s Force-flush 1 second after the previous flush
NumWorkers 4 Concurrent workers submitting Bulk requests
Process shutdown Close(ctx) SIGTERM/SIGINT triggers a 10 s bounded drain

Two-Tier Retry Policy

Bulk failures are split into two layers with different retry semantics:

Layer Trigger Behavior Retried?
Whole-batch retry Transport error (connect / timeout / TLS)
HTTP status: 429 / 502 / 503 / 504		 Client retries with exponential backoff: 100 ms → 200 ms → 400 ms → 800 ms, up to 3 attempts ✅ auto
Whole-batch reject HTTP status: 400 / 401 / 403 / 404 / 413, etc. Not retried; all records in the batch are dropped, an error is logged via OnError ❌ drop
Per-item failure 200 OK with per-item error: version conflict, mapping error, document too large Not retried; only the failed item is dropped, OnFailure logs index/id/status/type/reason ❌ drop
Per-item success 200 OK with per-item success Considered durably indexed —

Why this design: 429/5xx and transport errors signal transient remote unavailability where retries are effective; 4xx (except 429) and per-item errors are client-side semantic issues (data shape, permissions) where retries would only amplify the failure — they should be surfaced via logs for human investigation.

Data-Loss Scenarios

In all three scenarios below, Save returns nil but the event never reaches the index:

  1. Abnormal process exit: SIGKILL or host power loss drops whatever is still buffered in the BulkIndexer (the local directory still keeps a copy).
    • Mitigation: SIGTERM/SIGINT trigger graceful shutdown; Close force-flushes the buffer with a 10 s deadline.
  2. Whole-batch permanent rejection: 4xx (non-429) errors discard every record in the batch. Common causes: disabled index, expired credentials, document exceeding the cluster’s http.max_content_length.
    • Diagnosis: OnError log includes ES’s type and reason.
  3. Permanent per-item failure: mapping conflict, version conflict, malformed document.
    • Diagnosis: OnFailure log identifies the record by index/id.

The local directory is always a fallback: even if remote writes are lost, events remain available in huatuo-local/ as the eventual-consistency safety net.

Problems This Solves

Replacing per-event Index API calls with a buffered BulkIndexer + auto-retry addresses four classes of problems:

Problem Old approach bottleneck Bulk approach improvement
TLS handshake CPU cost One HTTPS handshake per event saturated CPU under FIPS/RSA-PSS Many events share one connection and one handshake; TLS PSK tickets cached
Remote RTT throughput ceiling One round-trip per event capped node-level write rate One Bulk request carries up to 5 MB; throughput scales with batch size
Transient remote jitter / 429 throttle A single failure dropped the event with no retry Client-level retry absorbs short-lived faults
Decoupling tracer layer from backend Slow remote backed pressure into capture, delaying tracing Async buffer decouples capture from network — capture is no longer blocked on remote latency

🌟 Stay Connected

6.2 - Data Source

HUATUO integrates with Prometheus for metrics collection and Elasticsearch for log storage. This document covers data source configuration and dashboard provisioning in Grafana.

Two deployment paths are supported:

  • Docker Compose — recommended for development and testing; all components are pre-configured.
  • Kubernetes — for production clusters; requires manual data source configuration.

Quick Start (Docker Compose)

The build/docker/ directory contains a complete stack. All default credentials and ports listed below match this setup.

cd build/docker
docker compose up -d

This starts four services on the host network:

Service Port Purpose
Elasticsearch 9200 Log storage
Prometheus 9090 Metrics collection
Grafana 3000 Visualization
huatuo-bamai 19704 Agent (metrics + tracing)

Default credentials:

Service Username Password
Elasticsearch elastic huatuo-bamai
Grafana admin admin

Data sources and dashboards are auto-provisioned. Access Grafana at http://<host>:3000.

Verify the Stack

# Elasticsearch
curl -s -u elastic:huatuo-bamai http://localhost:9200/_cluster/health?pretty

# Prometheus — should show huatuo target as "up"
curl -s http://localhost:9090/api/v1/targets | jq '.data.activeTargets[] | {job: .labels.job, health: .health}'

# Grafana
curl -s http://localhost:3000/api/health | jq .version

# HuaTuo metrics
curl -s http://localhost:19704/metrics | head -5

Provisioned Data Sources

The following data sources are created automatically via build/docker/grafana/datasources/:

Name Type UID
huatuo-bamai-prom Prometheus huatuo-bamai-prom
huatuo-bamai-es Elasticsearch huatuo-bamai-es
huatuo-bamai-infinity Infinity huatuo-bamai-infinity-auto-flamegraph

Provisioned Dashboards

Six dashboards are loaded from build/docker/grafana/dashboards/:

  • Metric Dashboard — Host View
  • Metric Dashboard — Container View
  • HuaTuo Root Cause Analysis AutoTracing
  • Continuous Profiling (Host)
  • Continuous Profiling (Container)
  • AutoTracing Flame Redirect

No manual import is needed when using Docker Compose.

Metrics Collection (Kubernetes)

1. Verify Metrics Endpoint

After deploying huatuo-bamai to Kubernetes, expose the metrics endpoint:

kubectl port-forward -n default --address=0.0.0.0 pod/huatuo-XXXX 19704:19704

Verify:

curl http://localhost:19704/metrics

Metrics output confirms the agent is running correctly.

2. Configure Prometheus Scraping

Option A: Pod Annotations

Add annotations to the Pod template metadata. This requires a Prometheus setup with Kubernetes pod service discovery enabled (e.g., kubernetes_sd_configs with role: pod).

template:
    metadata:
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "19704"
        prometheus.io/path: "/metrics"

Option B: ServiceMonitor

Requires Prometheus Operator. Create two resources:

huatuo-service.yaml:

apiVersion: v1
kind: Service
metadata:
  name: huatuo
  labels:
    app: huatuo
spec:
  clusterIP: None
  ports:
    - name: metrics
      port: 19704
      targetPort: 19704
      protocol: TCP
  selector:
    app: huatuo

huatuo-servicemonitor.yaml:

apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: huatuo
  namespace: default
  labels:
    release: prometheus
spec:
  namespaceSelector:
    matchNames:
      - default
  selector:
    matchLabels:
      app: huatuo
  endpoints:
    - port: metrics
      path: /metrics
      interval: 30s
      scrapeTimeout: 10s

3. Query Metrics in Prometheus

huatuo_*

If results are returned, metrics collection is working properly.

Log Collection (Kubernetes)

Query logs from Elasticsearch:

curl -u elastic:<password> "http://<es-host>:9200/huatuo_bamai/_search?pretty"

Replace <password> and <es-host> with your Elasticsearch credentials and address.

Manual Grafana Data Source Configuration

When not using Docker Compose (e.g., external Grafana), configure data sources manually.

Prometheus Data Source

Refer to build/docker/grafana/datasources/prometheus.yaml for the provisioning file, or configure via Grafana UI:

  • URL: http://<prometheus-host>:9090
  • Access: Server (proxy)

Elasticsearch Data Source

Configure via Grafana UI or provisioning:

  • URL: http://<es-host>:9200
  • Authentication: Basic Authentication
  • Username: elastic
  • Password: <your-elasticsearch-password>
  • Index name: huatuo_bamai
  • Time field name: uploaded_time

Dashboard Import

When using Docker Compose, dashboards are provisioned automatically. To import additional dashboards from the HUAUO console:

  1. Access http://console.huatuo.tech/dashboards (Username: huatuo, Password: huatuo1024)
  2. Select the desired dashboard
  3. Click Export -> Export as JSON
  4. Check “Export the dashboard to use in another instance”
  5. Click Copy to clipboard

Then in your Grafana instance:

  1. Navigate to Dashboards -> Import
  2. Paste the JSON content
  3. Click Load
  4. Select the correct data sources and click Import

Troubleshooting

“datasource not found” when importing dashboard

This occurs when the dashboard JSON references a datasource UID that does not exist in your Grafana instance.

Solution:

  1. Find your Elasticsearch datasource UID from the Grafana UI URL: http://<grafana-host>:3000/connections/datasources/edit/<uid>
  2. In the dashboard JSON, replace all occurrences of "uid": "${DS_HUATUO-BAMAI-ES}" with your actual UID
  3. Re-import the dashboard

Prometheus target shows “down”

  • Verify huatuo-bamai is running: curl http://<host>:19704/metrics
  • Check Prometheus configuration matches the agent’s address and port
  • For Kubernetes: ensure pod annotations are correct or ServiceMonitor selector matches

Elasticsearch index is empty

  • Verify Elasticsearch is reachable: curl -u elastic:<password> http://<host>:9200/_cat/indices
  • Check huatuo-bamai config [Storage.ES] section has correct Address, Username, Password
  • Default index name is huatuo_bamai

“socket path already exists” on startup

This occurs when a previous huatuo-bamai process was not cleanly stopped.

Solution:

rm -f /var/run/huatuo-toolstream.sock

6.3 - Events Watch

📖 Overview

/v1/events/watch is HUATUO’s real-time kernel event subscription endpoint. A single HTTP POST long-lived connection streams kernel anomaly events from the node continuously. Events are wrapped in the CloudEvents 1.0 specification and delivered via the Server-Sent Events (SSE) protocol.

🎯 Use Cases

Kernel event subscription surfaces OS-level anomaly signals directly to higher-level systems, eliminating the latency and overhead of traditional polling. The following are typical integration scenarios.

Fault Self-Healing

Kernel events are the primary signal source for self-healing decisions. After subscribing to events/watch, a healing controller can trigger remediation the moment an event occurs, without waiting for an alert to propagate through a monitoring pipeline:

  • OOM self-healing: On receiving an oom event, immediately scale, restart, or drain traffic from the triggering container. Reduces service interruption from minutes to seconds.
  • Hung task self-healing: On receiving a hungtask event, automatically cordon the node and evict Pods to prevent cascading blockage from spreading across the cluster.
  • Network fault self-healing: On receiving a netdev_txqueue_timeout or netdev_bonding_lacp event, trigger a NIC reset or traffic failover to restore the network link within minutes.
  • I/O storm self-healing: On receiving an iotracing event, dynamically throttle the affected container’s disk I/O quota via cgroup blkio to protect co-located services on the same node.

Observability Platforms

Integrating HUATUO kernel events into an observability platform adds a kernel-level perspective beyond application metrics and logs:

  • Event timeline correlation: Overlay softlockup, oom, and other kernel events onto Grafana timelines, aligning them precisely with application error rates and latency curves for root-cause analysis.
  • Anomaly-driven alerting: Replace fixed-threshold alerts with kernel events to reduce false positives. For example, a ras hardware error event triggers a high-priority alert directly, without relying on a CPU error rate crossing a threshold.
  • Capacity and stability analysis: Subscribe to memburst, dload, and other AutoTracing events over time to establish a node stability baseline and provide kernel-level data for capacity planning.
  • Multi-dimensional drill-down: Events carry container ID, namespace, region, and other context fields. Alert links can drill down directly to the corresponding Pod, Node, or Region view.

Security Auditing and Compliance

  • Anomalous behavior detection: A cluster of oom, hungtask, or softlockup events outside business peak hours may indicate resource abuse or a malicious workload, triggering a security review workflow.
  • Event retention and traceability: Write the CloudEvents stream to a message queue (Kafka, Pulsar) or object storage to satisfy the event retention requirements of security compliance frameworks.

Chaos Engineering and Load Testing

  • Fault injection verification: After injecting network latency or memory pressure via a chaos engineering platform, subscribe to net_rx_latency and memburst events in real time to verify the fault is active, replacing manual observation.
  • Load test baseline: Subscribe to all events during a load test. The timestamp of the first kernel anomaly event precisely marks the system’s stress threshold.

AIOps

  • Event-driven root-cause analysis: Feed kernel events as features into AI/ML models alongside application metrics for multi-dimensional root-cause inference, reducing manual investigation time.
  • Predictive maintenance: Model ras hardware errors and netdev_bonding_lacp hardware-layer events to detect anomalies before a device fails completely, triggering proactive migration.
  • Intelligent suppression and aggregation: Automatically aggregate similar events within the same time window to avoid alert storms. Deliver a concise root-cause summary to on-call engineers.

💎 Value

Dimension Traditional Approach With HUATUO events/watch
Timeliness Alert trigger latency: 1–5 minutes Real-time kernel event push; latency < 1 s
Signal accuracy Metric threshold-based; high false-positive rate Events originate from kernel decisions; false-positive rate near zero
Context richness Limited metric dimensions Full context: container, node, region, and more
Integration cost Requires custom eBPF collection or a third-party agent Single HTTP POST to subscribe; standard CloudEvents format
Protocol compatibility Vendor-specific formats Follows CloudEvents 1.0; compatible with any conformant platform

🚀 Usage

1. CloudEvents Specification

1.1 CloudEvents 1.0 Envelope Fields

Each pushed event is a JSON object conforming to the CloudEvents 1.0 specification:

Field Type Description
specversion string Fixed value "1.0"
id string Unique event identifier (UUID v4), generated independently per event
source string Event source path, format: /huatuo/{hostname}/{tracer_name}
type string Fixed value "tech.huatuo.kernel.event"
datacontenttype string Fixed value "application/json"
time string Event collection timestamp (RFC 3339, nanosecond precision, UTC)
data object Event payload — the WatchEventData struct

1.2 HUATUO Event Payload (WatchEventData)

The data field contains the standard HUATUO event record:

{
  "specversion": "1.0",
  "id": "f47ac10b-58cc-4372-a567-0e02b2c3d479",
  "source": "/huatuo/node-1/oom",
  "type": "tech.huatuo.kernel.event",
  "datacontenttype": "application/json",
  "time": "2026-05-18T10:23:45.123456789Z",
  "data": {
    "hostname": "node-1",
    "region": "cn-beijing",
    "observed_timestamp": "2026-05-18T10:23:45Z",
    "tracer_name": "oom",
    "tracer_id": "abc123",
    "tracer_run_type": "auto",
    "container_id": "d3f1a2b4c5e6",
    "container_hostname": "app-pod",
    "container_host_namespace": "prod",
    "container_type": "docker",
    "container_qos": "Guaranteed"
  }
}

WatchEventData field reference:

Field Type Description
hostname string Node hostname
region string Region where the node is located
observed_timestamp string Kernel event timestamp (Tracer collection time)
tracer_name string Name of the tracer that triggered the event (see the event list below)
tracer_id string Unique ID of this event instance
tracer_run_type string Collection mode: auto (triggered automatically) or manual
container_id string Container ID (present for container-level events)
container_hostname string Container hostname
container_host_namespace string Namespace of the container
container_type string Container runtime type (docker, containerd, etc.)
container_qos string Container QoS class

2. Supported Kernel Events

tracer_name Description
oom Out-of-memory (OOM Killer) triggered event
hungtask Kernel task stuck in D state (Hung Task) detection
softlockup CPU soft lockup detection
ras Hardware reliability (RAS) errors, such as ECC memory errors
dropwatch Kernel network packet drop (Drop Watch) events
netdev_events Network device state change events (Link Up/Down, etc.)
netdev_txqueue_timeout Network device transmit queue timeout events
netdev_bonding_lacp Bond device LACP protocol anomaly events
net_rx_latency Network receive latency anomaly events
softirq_tracing Soft IRQ excessive latency tracing events
memory_reclaim_events Memory reclaim anomaly events
cpuidle CPU idle rate anomaly (AutoTracing, auto-triggered)
cpusys CPU system-mode usage anomaly (AutoTracing, auto-triggered)
dload System load anomaly (AutoTracing, auto-triggered)
iotracing I/O latency anomaly (AutoTracing, auto-triggered)
memburst Memory usage spike anomaly (AutoTracing, auto-triggered)

3. POST Request Reference

3.1 Endpoint

POST /v1/events/watch

3.2 Request Headers

Content-Type: application/json

3.3 Request Body

{
  "filters": {
    "tracer_name": "<regex>",
    "hostname": "<regex>",
    "container_hostname": "<regex>",
    "container_host_namespace": "<regex>",
    "region": "<regex>"
  }
}

filters field reference:

Field Type Required Description
tracer_name string No Filter by tracer name; supports regular expressions
hostname string No Filter by node hostname; supports regular expressions
container_hostname string No Filter by container hostname; supports regular expressions
container_host_namespace string No Filter by container namespace; supports regular expressions
region string No Filter by region; supports regular expressions
  • All filter fields are optional. Omitting or leaving a field empty matches all values.
  • When multiple fields are specified, all conditions must be satisfied simultaneously (AND semantics).
  • Filters are evaluated server-side; only matching events are pushed to the client.

3.4 Response Format (SSE Stream)

After the connection is established, the server continuously pushes events in SSE format:

data: {"specversion":"1.0","id":"...","source":"/huatuo/node-1/oom",...}\n\n

The server also sends periodic heartbeat comment lines to keep the connection alive:

: ping\n

4. HTTP Server Event Stream Configuration

Configure the event stream controls under [HTTPServer]:

[HTTPServer]
    # Maximum number of concurrent client connections. New connections receive HTTP 429 when the limit is reached.
    # Default: 100
    MaxEventStreamClients = 100

    # SSE heartbeat interval in seconds. Prevents proxies and load balancers from closing idle connections.
    # The connection is closed after three consecutive heartbeat write failures.
    # Default: 30
    EventStreamKeepAliveIntervalSeconds = 30
Field Default Description
MaxEventStreamClients 100 Maximum concurrent /v1/events/watch connections. Excess connections receive HTTP 429.
EventStreamKeepAliveIntervalSeconds 30 Heartbeat interval. Keep it below the upstream proxy’s idle timeout.

5. curl Examples

5.1 Subscribe to All Kernel Events

curl -s -N -X POST http://<node-ip>:19704/v1/events/watch \
  -H "Content-Type: application/json" \
  -H "Accept: text/event-stream" \
  -H "Cache-Control: no-cache" \
  -H "Connection: keep-alive" \
  -d '{}'

5.2 Subscribe to OOM Events Only

curl -s -N -X POST http://<node-ip>:19704/v1/events/watch \
  -H "Content-Type: application/json" \
  -H "Accept: text/event-stream" \
  -H "Cache-Control: no-cache" \
  -H "Connection: keep-alive" \
  -d '{"filters": {"tracer_name": "^oom$"}}'

5.3 Subscribe to Network Events on a Specific Node

curl -s -N -X POST http://<node-ip>:19704/v1/events/watch \
  -H "Content-Type: application/json" \
  -H "Accept: text/event-stream" \
  -H "Cache-Control: no-cache" \
  -H "Connection: keep-alive" \
  -d '{
    "filters": {
      "hostname": "^node-1$",
      "tracer_name": "netdev|dropwatch|net_rx_latency"
    }
  }'

5.4 Subscribe to Container Events in the prod Namespace

curl -s -N -X POST http://<node-ip>:19704/v1/events/watch \
  -H "Content-Type: application/json" \
  -H "Accept: text/event-stream" \
  -H "Cache-Control: no-cache" \
  -H "Connection: keep-alive" \
  -d '{
    "filters": {
      "container_host_namespace": "^prod$"
    }
  }'

Note: The -N flag disables curl buffering, causing SSE events to be printed to the terminal immediately.

6. Go Client Example

The following example shows how to subscribe to the events/watch endpoint in a Go program and consume CloudEvents in real time.

package main

import (
	"bufio"
	"bytes"
	"context"
	"encoding/json"
	"fmt"
	"log/slog"
	"net/http"
	"os"
	"strings"
	"time"
)

// WatchRequest is the request body sent to /v1/events/watch.
type WatchRequest struct {
	Filters WatchFilters `json:"filters"`
}

type WatchFilters struct {
	TracerName             string `json:"tracer_name,omitempty"`
	Hostname               string `json:"hostname,omitempty"`
	ContainerHostname      string `json:"container_hostname,omitempty"`
	ContainerHostNamespace string `json:"container_host_namespace,omitempty"`
	Region                 string `json:"region,omitempty"`
}

// WatchEvent is the CloudEvents 1.0 envelope pushed by HUATUO.
type WatchEvent struct {
	SpecVersion     string          `json:"specversion"`
	ID              string          `json:"id"`
	Source          string          `json:"source"`
	Type            string          `json:"type"`
	DataContentType string          `json:"datacontenttype"`
	Time            string          `json:"time"`
	Data            json.RawMessage `json:"data"`
}

func watchEvents(ctx context.Context, endpoint string, filters WatchFilters) error {
	reqBody, err := json.Marshal(WatchRequest{Filters: filters})
	if err != nil {
		return fmt.Errorf("marshal request: %w", err)
	}

	req, err := http.NewRequestWithContext(ctx, http.MethodPost, endpoint, bytes.NewReader(reqBody))
	if err != nil {
		return fmt.Errorf("create request: %w", err)
	}
	req.Header.Set("Content-Type", "application/json")
	req.Header.Set("Accept", "text/event-stream")

	client := &http.Client{Timeout: 0} // no timeout for SSE long-lived connections
	resp, err := client.Do(req)
	if err != nil {
		return fmt.Errorf("connect: %w", err)
	}
	defer resp.Body.Close()

	if resp.StatusCode != http.StatusOK {
		return fmt.Errorf("unexpected status: %d", resp.StatusCode)
	}

	scanner := bufio.NewScanner(resp.Body)
	for scanner.Scan() {
		line := scanner.Text()

		// skip heartbeat comment lines and blank lines
		if line == "" || strings.HasPrefix(line, ":") {
			continue
		}

		// SSE data line format: `data: <json>`
		data, ok := strings.CutPrefix(line, "data: ")
		if !ok {
			continue
		}

		var event WatchEvent
		if err := json.Unmarshal([]byte(data), &event); err != nil {
			slog.Warn("parse event", "err", err)
			continue
		}

		fmt.Printf("[%s] source=%s id=%s\n", event.Time, event.Source, event.ID)
		fmt.Printf("  data: %s\n", event.Data)
	}

	return scanner.Err()
}

func main() {
	ctx, cancel := context.WithTimeout(context.Background(), 5*time.Minute)
	defer cancel()

	err := watchEvents(ctx, "http://192.168.1.10:19704/v1/events/watch", WatchFilters{
		TracerName: "oom|hungtask|softlockup",
	})
	if err != nil {
		slog.Error("watch events", "err", err)
		os.Exit(1)
	}
}

If your project shares the same Go module as HUATUO, use the official types directly:

import pkgtypes "huatuo-bamai/pkg/types"

var event pkgtypes.WatchEvent
if err := json.Unmarshal([]byte(data), &event); err != nil { ... }

// WatchEvent.Data is json.RawMessage (deferred parsing); a second unmarshal is required to access typed fields
dataBytes, err := json.Marshal(event.Data)
if err != nil {
    slog.Warn("marshal event data", "err", err)
    return
}
var payload pkgtypes.WatchEventData
if err := json.Unmarshal(dataBytes, &payload); err != nil {
    slog.Warn("unmarshal event data", "err", err)
    return
}
fmt.Println("tracer:", payload.TracerName)
fmt.Println("observed_timestamp:", payload.ObservedTimestamp)

6.2 Reconnection

In production, network interruptions or service restarts will drop the connection. Use exponential backoff to reconnect:

func watchWithRetry(ctx context.Context, endpoint string, filters WatchFilters) {
	backoff := time.Second
	for {
		if err := watchEvents(ctx, endpoint, filters); err != nil {
			if ctx.Err() != nil {
				return
			}
			slog.Warn("disconnected, retrying", "err", err, "backoff", backoff)
			// time.NewTimer + Stop releases the timer immediately when the context is cancelled
			timer := time.NewTimer(backoff)
			select {
			case <-ctx.Done():
				timer.Stop()
				return
			case <-timer.C:
			}
			if backoff < 30*time.Second {
				backoff *= 2
			}
		}
	}
}

⚙️ How It Works

Architecture

HUATUO Agent runs on each node. It hooks into critical kernel paths via eBPF, Kprobe, and Tracepoint, collects kernel anomaly events, applies filters, wraps them as CloudEvents, and pushes them to multiple concurrent SSE subscribers.

graph TB
    subgraph kernel["Linux Kernel"]
        K1[OOM Killer]
        K2[Hung Task Detection]
        K3[Soft Lockup Detection]
        K4[RAS Hardware Errors]
        K5[Network Subsystem]
        K6[AutoTracing]
    end

    subgraph huatuo["HUATUO Agent (per node)"]
        T["Tracer Collection Layer\neBPF / Kprobe / Tracepoint"]
        F["Filter\nhostname / tracer / namespace / region"]
        CE["CloudEvents 1.0 Wrapper\nid / source / time / data"]
        EW["EventsWatch Dispatcher\nSSE connection management"]
    end

    subgraph clients["Subscribers"]
        C1[Fault Self-Healing System]
        C2[Observability Platform]
        C3[AIOps System]
        C4[Security Audit System]
    end

    kernel --> T
    T --> F
    F --> CE
    CE --> EW
    EW -->|SSE push| C1
    EW -->|SSE push| C2
    EW -->|SSE push| C3
    EW -->|SSE push| C4

Event Collection and Push

After the client issues a POST request, the connection stays open. Each time the kernel triggers an anomaly event, HUATUO Agent filters and wraps it, then writes it immediately to all matching SSE streams. No client polling is required.

sequenceDiagram
    participant C as Client
    participant EW as EventsWatch
    participant T as Tracer Layer
    participant K as Linux Kernel

    C->>EW: POST /v1/events/watch {"filters": {...}}
    EW-->>C: 200 OK (Content-Type: text/event-stream)

    loop SSE long-lived connection
        K->>T: Kernel event triggered (oom / hungtask / softlockup ...)
        T->>EW: Report raw event
        EW->>EW: Apply filter
        alt Filter matched
            EW-->>C: data: {CloudEvents JSON}\n\n
        else No match
            note over EW: Discard, do not push
        end
        EW-->>C: : ping (keepalive, configured interval)
    end

Event Processing Pipeline

From kernel event generation to client delivery, three stages are involved: collection, filtering, and wrapping. End-to-end latency is under 1 second.

flowchart LR
    A([Kernel anomaly triggered]) --> B["Tracer collection\neBPF / Kprobe"]
    B --> C{Filter matched?}
    C -- No --> D([Discard])
    C -- Yes --> E["Wrap as CloudEvents 1.0\nid / source / time / data"]
    E --> F[Write to SSE stream]
    F --> G([Push to subscribers])

🌟 Stay Connected

6.4 - Profiling

Flame Graph Formats

In profiling, collapsed and flamegraph are the two most common formats, corresponding to the “raw data” and “visual view” layers respectively.

Collapsed Format

Standard Syntax and Format

The collapsed format (also called folded stacks) was defined by Brendan Gregg and serves as the raw text input format for flame graphs. Each line represents a unique call stack and its sample count.

Basic rule:

frame1;frame2;frame3;...;frameN COUNT
Component Description
frame1 Stack bottom (entry/root frame), e.g. main, start_thread
; Frame separator (semicolon)
frameN Stack top (currently executing frame, i.e. the sampled point)
COUNT Sample count (integer), separated from the stack frames by a space

Format details:

  • One unique call stack per line; samples with the same stack path have their counts merged
  • Frame order: left to right is root → leaf (call chain direction)
  • Blank lines and lines starting with # are treated as comments and ignored during parsing
  • The semantics of COUNT depend on the analysis mode: for CPU sampling it is the number of samples, for memory allocation it is the number of bytes allocated, for lock analysis it is the contention time in milliseconds

Extended specification:

Some profiling tools (e.g. async-profiler) add frame type annotations on top of the standard format to identify the runtime category of a frame:

frameName_{type} COUNT
Annotation Meaning Description
_[j] JIT compiled Java Java method after JIT compilation
_[i] Interpreted Java Java method executed by the interpreter
_[k] Kernel Kernel-mode frame
_[n] Native C/C++ Native C/C++ frame
_[t] Thread Thread frame

Additionally, some tools support a weighted collapsed format for differential flame graphs:

frame1;frame2;frameN WEIGHT

Where WEIGHT is a floating-point number representing the weight of the stack rather than a simple count.

Sample Examples

CPU profiling example (data from the async-profiler official documentation):

FileConverter.main;FileConverter.convertFile;FileConverter.saveResult 21
FileConverter.main;FileConverter.convertFile;FileConverter.saveResult;java/io/DataOutputStream.writeInt 1
FileConverter.main;FileConverter.convertFile;FileConverter.saveResult;java/io/DataOutputStream.writeInt;java/io/ByteArrayOutputStream.write 5
FileConverter.main;FileConverter.convertFile;FileConverter.saveResult;java/io/DataOutputStream.writeUTF;java/io/DataOutputStream.writeUTF 12
FileConverter.main;FileConverter.convertFile;FileConverter.saveResult;java/io/DataOutputStream.writeUTF;java/io/DataOutputStream.writeUTF;java/lang/String.length 3
FileConverter.main;FileConverter.convertFile;FileConverter.saveResult;java/io/DataOutputStream.writeUTF;java/io/DataOutputStream.writeUTF;java/io/DataOutputStream.write 6
start_thread;thread_native_entry;Thread::call_run;VMThread::run;VMThread::inner_execute;VMThread::evaluate_operation;VM_Operation::evaluate;VM_GenCollectForAllocation::doit;GenCollectedHeap::satisfy_failed_allocation;GenCollectedHeap::do_collection;GenCollectedHeap::collect_generation;DefNewGeneration::collect;DefNewGeneration::FastEvacuateFollowersClosure::do_void 12

Example with frame type annotations (async-profiler extension):

Main.run_[j];Service.process_[j];DAO.query_[j];mysql_real_query_[n] 45
Main.run_[j];Service.process_[j];DAO.query_[j];recv_[k] 18

Core Use Cases

Use Case Description
Flame graph generation Standard input format for visualization tools like flamegraph.pl and inferno
Differential analysis Compare two collapsed files to produce a red-blue differential flame graph for detecting performance regressions
Programmatic processing Plain text format suitable for custom aggregation and filtering with awk, sed, Python, etc.
Cross-tool interoperability Universal standard defined by Brendan Gregg; supported by virtually all flame graph toolchains
Long-term storage Compact text format suitable for archiving and version comparison
CI/CD integration Enables automated collection, diffing, and threshold-based regression detection in pipelines

Generation command example:

# Using async-profiler as an example
asprof -d 30 -f profile.collapsed -o collapsed <PID>

Flamegraph Format

Standard Syntax and Format

The flamegraph format is a self-contained HTML file with embedded SVG visualization and JavaScript interaction logic, which can be opened directly in a browser.

Structural composition:

flamegraph.html
├── HTML skeleton + CSS styles
├── SVG flame graph body
│   ├── <g> rectangle block for each frame
│   │   ├── <title> frame name + sample count/percentage
│   │   └── <rect> position, width, height, color
│   └── ...
├── JavaScript interaction logic
│   ├── Click to zoom (zoom into subtree)
│   ├── Search & highlight
│   ├── Tooltip on hover
│   └── Reset zoom
└── Metadata (title, total samples, etc.)

Visual encoding rules:

Dimension Encoding Meaning
X axis Call stack frames sorted alphabetically (not a timeline); width proportional to sample count
Y axis Call stack depth; bottom is the root frame, top is the leaf frame
Frame width Proportion of samples where this frame appears in the stack; wider frames consume more resources
Frame color Identifies the frame type (see table below)

Frame color specification (based on async-profiler):

Note: Flame graph color schemes are not a cross-tool standard. The original flamegraph.pl by Brendan Gregg uses random warm tones with no semantic meaning; perf/bpftrace typically colors by DSO or uses random colors; async-profiler colors by frame type semantics. The following is the async-profiler color specification:

Color Frame Type Description
🟢 Green Java (interpreted) Java method executed by the interpreter
🟡 Yellow/Orange Java (JIT compiled) Java method after JIT compilation
🔴 Red C/C++ (native) Native C/C++ code
🔵 Blue Kernel Kernel-mode code
⬜ Gray Other/Unknown Other types or unknown frames

Extended features (based on async-profiler):

  • Icicle Graph: Displays the call chain top-down (root at the top), which better suits top-down reading habits. Toggle via the --reverse option or the Reverse button in the browser
  • Multi-thread view: Call stacks from different threads are displayed side by side at the root level
  • Search highlighting: Matching frames are highlighted in purple; non-matching frames are dimmed
  • Sample info tooltip: Hover to display frame name, sample count, and percentage of total samples
  • Cutoff frames: Frames marked as [...] indicate stack truncation (e.g. due to stack depth limits)

Sample Examples

Generation command example:

# Using async-profiler as an example
asprof -d 30 -f flamegraph.html <PID>

Interactive operations:

  • Click a frame: Zoom to make the frame full-width, showing only its subtree
  • Search box: Enter a keyword; matching frames are highlighted
  • Hover: Display frame name, sample count, and percentage
  • Reset Zoom: Restore the global view

Core Use Cases

Use Case Description
Hotspot identification Visually identify the widest frame blocks to quickly find the code paths consuming the most CPU/memory
Root cause analysis Trace upward from leaf frames to understand the call chain context of resource consumption
Team collaboration HTML files can be shared directly; viewable in a browser with no additional tools required
Optimization verification Generate flame graphs before and after optimization; compare frame width changes to verify effectiveness
Non-specialist friendly Visual form is easier to understand for non-performance engineers, facilitating cross-team communication

Format Comparison

Dimension Collapsed Flamegraph
Format type Plain text HTML + SVG
Human readability Medium (requires understanding stack frame syntax) High (visual, intuitive)
Machine readability High (easy to parse, easy to diff) Low (requires parsing HTML/SVG)
Interactivity None Supports zoom, search, tooltip
File size Very small (KB scale) Larger (hundreds of KB to MB scale)
Toolchain dependency None (plain text) Browser
Differential analysis Natively supported (diff two files) Requires conversion to collapsed first
Typical use case Programmatic processing, CI comparison, archiving Manual analysis, team sharing, presentation

Typical workflow:

Collect ──► collapsed ──► flamegraph.html (manual analysis)
                   │
                   ├──► Differential flame graph (regression detection)
                   ├──► Custom aggregation scripts
                   └──► Archive storage

6.5 - Network Drop Monitoring

Overview

dropwatch observes software drops through tracepoint/skb/kfree_skb and hardware drops reported by capable drivers through raw_tracepoint/devlink_trap_report. It outputs protocol fields, the IP tuple, network device, drop reason, and kernel stack.

dropwatch supports kernel-side filtering based on tcpdump-style filter expressions. The filter logic is compiled into eBPF bytecode at load time by the built-in pure-Go pcap compiler internal/pcapfilter. Filtering is performed entirely in kernel mode — only matching packets are reported to user space, reducing performance impact on the host.

In addition, dropwatch supports device whitelist/blacklist filtering, global per-second rate limiting, and integration with huatuo-bamai to store drop events in Elasticsearch for long-term analysis.

Scenarios

1. Kubernetes Cloud-Native Network Drop Diagnosis

In scenarios such as container migration, frequent Pod restarts, and Service port conflicts, dropwatch captures kfree_skb events in real time and correlates them with specific containers to quickly identify the root cause of packet drops. Combined with --filter "tcp and port <service-port>" to filter specific business traffic, the mean time to root cause is reduced from hours to minutes.

2. Network Performance Spike Analysis

For intermittent spikes in network latency or drops in throughput, dropwatch collects drop events and, together with the kernel call stack, identifies the specific kernel function where the drop occurred (e.g. tcp_v4_rcv, ip_output). This helps distinguish whether the cause is a firewall drop, routing failure, buffer overflow, or other reasons.

3. Multi-Tenant Network Isolation Troubleshooting

In container environments that share network namespaces or veth devices, use --device to filter by network device and --filter to filter by protocol. This precisely captures drop events for the target container, preventing other tenants’ traffic from interfering with the diagnosis.

4. Observability Platform Integration

Use --output-storage to send drop events to huatuo-bamai, which stores them in Elasticsearch for multi-dimensional correlation with metrics and logs. Overlay drop events on a Grafana timeline, aligned with application error rates and latency curves, to correlate kernel drops with application anomalies precisely.

Usage

1. Filter Expressions

Filter expressions use tcpdump syntax. The built-in pure-Go pcap compiler internal/pcapfilter compiles them into eBPF bytecode at load time. Filtering is performed entirely in kernel mode, reducing host impact — only matching packets are reported to user space.

1.1 Supported Expressions

internal/pcapfilter supports a subset of the standard tcpdump syntax. The following primitives are reliable:

Protocols

ip   ip6   tcp   udp   icmp   icmp6   igmp   pim   esp   ah   vrrp   arp   rarp
ip proto tcp      ip6 proto udp        (protocol names only; numeric protocol numbers not supported)

Host addresses

host 10.0.0.1
src host 10.0.0.1
dst host 10.0.0.1

Ports

port 80
src port 443
dst port 8080

Networks (CIDR)

net 10.0.0.0/8
src net 192.168.1.0/24
dst net 172.16.0.0/12

Multicast and Ethernet addresses

ip multicast    ip6 multicast    multicast    ether multicast
ether host 00:11:22:33:44:55

Boolean operators and grouping

tcp and port 80
tcp or udp
not arp
tcp and (port 80 or port 443)
ip and src net 192.168.1.0/24 and tcp dst port 3306

1.2 Unsupported Expressions

The following expressions are not supported. Using them causes compilation failures or incorrect match results:

Expression Reason
tcp[tcpflags] & tcp-syn != 0, ip[8], tcp[0:4] Byte-offset expressions (proto[offset:size]) not implemented
ip proto 6, ip6 proto 17 Numeric protocol numbers not supported; use names (e.g. ip proto tcp)
ether proto 0x0800 Hex EtherType not supported; use names (e.g. ether proto ip)
sctp Keyword not recognized
portrange 80-90, tcp portrange 1-100 Port ranges not supported
less N, greater N Packet-length filtering not supported
ip broadcast, ether broadcast Broadcast matching not supported
vlan, mpls, pppoes Tunnel/encapsulation keywords not supported
gateway Not supported

1.3 Examples

# Monitor all TCP drops (default — reliable in both L2 and L3 contexts)
--filter "tcp"

# TCP and UDP
--filter "tcp or udp"

# Specific destination host (applies to both TCP and UDP)
--filter "dst host 10.0.0.1"

# Specific port
--filter "tcp and port 443"

# Exclude a noisy host
--filter "tcp and not host 169.254.169.254"

# Specific subnet + specific port
--filter "src net 192.168.1.0/24 and tcp dst port 3306"

# Monitor non-TCP drops (UDP and ICMP only — avoid "not tcp", which captures unknown L3 events)
--filter "udp or icmp"

# Monitor ARP drops only (effective only in L2 context; never matches at L3)
--filter "arp"

--filter "ip" / --filter "ip6" now correctly match the corresponding IP protocol family (L2 by EtherType, L3 by version nibble). If you only care about a specific transport layer or host, prefer the more precise tcp, udp, host, or ip proto <name>.

2. Running dropwatch

dropwatch [flags]
Flag Default Description
--bpf-path <path> required Path to the dropwatch eBPF object file
--filter <expr> (none) tcpdump-style filter expression
--device <names> (none) Device whitelist: only collect drops from these devices; comma-separated (e.g. eth0,eth1)
--device-excluded <names> (none) Device blacklist: exclude drops from these devices; mutually exclusive with --device
--duration <n> 0 Stop after N seconds (0 = run until Ctrl-C)
--output <json|text> text Output format; ignored when --output-storage is set
--output-storage <path> (none) Send events to huatuo-bamai via Unix socket
--task-id <id> (none) Task ID for this session; typically used with --output-storage
--max-events-per-second <n> 0 Global rate limit in events/sec (0 = unlimited); applied after --device / --filter

--filter and device filtering are orthogonal; when both are specified, both apply (AND semantics). If neither --device nor --device-excluded is specified, all devices are collected. --device and --device-excluded are mutually exclusive; whitelist mode drops SKBs without a net_device, while blacklist mode passes them.

At startup, dropwatch detects devlink:devlink_trap_report. When supported, it loads both software and hardware drop probes. Otherwise, it logs a warning and loads only the software drop probe. Hardware collection also requires a driver that registers devlink drop traps and a target trap whose action is trap. With action drop, hardware sends no packet copy to the CPU, so dropwatch cannot inspect it.

dropwatch requires no additional startup flags. Before using hardware drop detection, verify that the kernel, driver, and target trap meet the requirements:

# 1. Verify that the kernel provides the devlink trap tracepoint
test -e /sys/kernel/tracing/events/devlink/devlink_trap_report/id || \
  test -e /sys/kernel/debug/tracing/events/devlink/devlink_trap_report/id

# 2. List devlink devices and traps registered by the driver
sudo devlink dev show
sudo devlink trap show <bus/device>

# 3. Enable packet reporting for the target DROP trap
sudo devlink trap set <bus/device> trap <trap-name> action trap

# 4. Start dropwatch and display only hardware drops
sudo dropwatch --bpf-path bpf/dropwatch.o --output json 2>/dev/null | \
  jq -c 'select(.drop_source == "hardware")'

<bus/device> is the device identifier returned by devlink dev show, such as pci/0000:03:00.0. After diagnosis, restore the trap to its previous action.

This capability collects only packets that the driver reports through DEVLINK_TRAP_TYPE_DROP. It does not capture all hardware packets and does not replace NIC hardware-drop counters. Drops such as hardware queue overflows are visible only when the driver implements and reports them as devlink drop traps. Traps of type exception or control are not reported as drop events.

--filter, --device, --device-excluded, and --max-events-per-second apply to both software and hardware events. Text output formats a hardware reason as reason=<group>/<trap> drop_source=hardware. JSON output uses the separate drop_reason_group, drop_reason, and drop_source fields.

Examples

# Text output, monitor TCP drops on all devices
sudo dropwatch --bpf-path bpf/dropwatch.o --filter "tcp"

# Monitor drops on eth0 only
sudo dropwatch --bpf-path bpf/dropwatch.o --device eth0 --output json

# Exclude loopback
sudo dropwatch --bpf-path bpf/dropwatch.o --device-excluded lo --output json

# Combine device and protocol filters
sudo dropwatch --bpf-path bpf/dropwatch.o --device eth0 --filter "tcp and port 443" --output json

# Capture for 60 seconds and exit
sudo dropwatch --bpf-path bpf/dropwatch.o --filter "tcp and port 443" --duration 60 --output json

# Forward events to a running huatuo-bamai instance
sudo dropwatch --bpf-path bpf/dropwatch.o --filter "tcp" --output-storage /var/run/huatuo-toolstream.sock

# Use jq to filter and show only RST packets
sudo dropwatch --bpf-path bpf/dropwatch.o --output json 2>/dev/null | jq 'select(.layers.tcp.flags == "RST")'

# Capture 10 seconds of JSON output, excluding events whose stack contains ip_finish_output
sudo dropwatch --output json --duration 10 --bpf-path bpf/dropwatch.o | jq -c 'select(.stack | test("ip_finish_output") | not)'

# Capture 10 seconds of JSON output, printing all fields except stack
sudo dropwatch --output json --duration 10 --bpf-path bpf/dropwatch.o | jq -c 'del(.stack)'

jq -c compresses each matching event into a single-line JSON, convenient for saving as NDJSON or further pipe processing. test("ip_finish_output") checks whether stack matches the regex; not negates the result, so the command above excludes stacks containing ip_finish_output. Remove | not to keep only those containing ip_finish_output. del(.stack) removes the stack field from the jq output, useful for viewing just the timestamp, device, process, packet_* metadata, and layers protocol fields. For userspace call-stack filtering before storage, configure EventTracing.IssuesList in huatuo-bamai (see Section 4).

3. Event Data Structure

Each drop event is represented as an NDJSON object (types.DropWatchTracing).

Field Type Description
observed_timestamp string UTC userspace receive/format time (RFC3339Nano), not the kernel hook timestamp
type string Reserved TCP type; currently unset (1 common, 2 SYN flood, 3/4 listen overflow)
drop_source string Drop source: software for the kernel network stack or hardware for a devlink DROP trap
drop_reason string SKB_DROP_REASON_* for software drops; if kernel BTF resolution fails, dropwatch logs a warning and falls back to the numeric value. For hardware drops, this is the devlink trap name
drop_reason_group string Devlink trap group used to classify hardware drops; omitted for software drops
drop_location string Hexadecimal kfree_skb call address for software drops; omitted for hardware drops
source string Event source; tools for standalone dropwatch and events when launched by huatuo-bamai
comm string Process name at the time of the drop
pid uint64 Process TGID
container_id string Container ID (populated by huatuo-bamai resolution, omitempty)
memory_cgroup_css_addr string Memory cgroup CSS address, used for container resolution
net_namespace_cookie uint64 Network namespace cookie, used for container resolution
net_namespace_inum uint32 Network namespace inum, used for container resolution
netdev_name string Network device name (e.g. eth0)
netdev_ifindex uint32 Network interface index
netdev_queue_mapping uint32 TX queue mapping
netdev_linkstatus []string Network device link status flags
packet_skb_addr string SKB address (hexadecimal, omitempty)
packet_eth_proto string Raw EtherType (hexadecimal, e.g. 0x0800)
packet_len uint32 Packet length in bytes
layers object Layered protocol parse result; missing layers are omitted
stack string Kernel call stack (newline-separated)

For hardware events, stack is the kernel call stack at which the driver reports the devlink trap. It does not identify the actual drop location inside the ASIC. Use drop_reason_group, drop_reason, device information, and driver documentation to diagnose hardware drops.

layers uses fixed fields to express the protocol stack, without relying on a separate protocol enumeration:

Field Description
layers.label Protocol combination label, e.g. IPv4/TCP, IPv6/UDP, ARP, unknown
layers.ether L2 fields when a real Ethernet header is present: saddr, daddr, type, len; len is non-zero only for IEEE 802.3 framing
layers.ipv4 IPv4 fields: version, ihl, tos, len, id, flags, frag_offset, ttl, protocol, checksum, saddr, daddr
layers.ipv6 IPv6 fields: version, traffic_class, flow_label, len, next_header, hop_limit, saddr, daddr
layers.tcp TCP fields: sport, dport, seq, ack_seq, data_offset, flags, window, checksum, urgent, sk_state
layers.udp UDP fields: sport, dport, len, checksum
layers.icmp ICMP/ICMPv6 fields: type, code, checksum, id, seq
layers.arp ARP fields: addr_type, protocol, hw_address_size, prot_address_size, operation, sender_mac, sender_ip, target_mac, target_ip

4. Integration with huatuo-bamai

huatuo-bamai launches dropwatch as a subprocess and uses --output-storage to send events to the built-in processing pipeline, which ultimately stores them in Elasticsearch. Typical parameters:

dropwatch \
  --bpf-path <CoreBpfDir>/dropwatch.o \
  --output-storage /var/run/huatuo-toolstream.sock \
  --filter "tcp"

4.1 Configuration Reference (huatuo-bamai.conf)

[EventTracing]
    # Optional call-stack filters. dropwatch discards events whose stack matches a configured regex.
    # Default: []
    IssuesList = []

[EventTracing.Dropwatch]
    # tcpdump filter expression, forwarded to dropwatch --filter.
    # Default: "tcp"
    Filter = "tcp"

    # Forwarded to dropwatch --max-events-per-second.
    # Default: 100
    MaxEventsPerSecond = 100

4.2 Noise Filtering

No call-stack noise rule is enabled by default. When EventTracing.IssuesList is configured, huatuo-bamai discards matching events. The following patterns are possible operator-configured filters; validate them against the local kernel and workload before enabling them:

Pattern Stack Frame Prefix Reason
ARP/neighbor table expiry neigh_invalidate/ Neighbor table entry expiration cleanup; does not affect any active data flow. Remove the rule from EventTracing.IssuesList to disable this filter.
bnxt NIC TX completion bnxt_tx_int/ or __bnxt_tx_int/ The Broadcom bnxt NIC driver calls kfree_skb to release SKBs after DMA transmit completion; this is normal behavior, not a drop.

Closing

6.6 - TCP Retransmission Tracing

Overview

tcpshark --mode retransmit observes TCP retransmission-related kernel activity through the tcp/tcp_retransmit_skb and tcp/tcp_retransmit_synack tracepoints. It can also observe the tcp_send_loss_probe kprobe when TLP collection is explicitly enabled. Depending on the event type, an event can include the IP 4-tuple, TCP state, congestion-control state, retransmission counters, sequence information, and socket metadata used for container resolution.

The userspace classifier derives a connection phase and a reason label from the event type, sk_state, ca_state, and reorder counters. These labels are operational heuristics, not packet-loss root-cause proof.

Filter expressions are compiled at load time by internal/pcapfilter and run in the kernel. Filters apply only to events that have an SKB (tcp_retransmit_skb); SYN-ACK and TLP events bypass the pcap filter.

Scenarios

1. TCP Network Quality and Retransmission Diagnosis

Continuously observe RTO, fast retransmission, reorder-prone retransmission, and TLP events to identify abnormal retransmissions during connection establishment, data transfer, and connection teardown. These signals help investigate packet loss, congestion, reordering, and peer reachability problems.

2. Kubernetes Container Network Troubleshooting

Use the container ID, network namespace, and socket cgroup metadata to identify the workload experiencing retransmissions. Apply --filter "tcp and port <service-port>" to focus on a specific service and reduce interference from other host connections.

3. Application Latency and Throughput Anomaly Analysis

Align TCP retransmission events with application latency, error-rate, and throughput timelines. This helps determine whether RTOs or repeated retransmissions coincide with service degradation and distinguish slow application processing from underlying network problems.

4. Locating Packet Loss with dropwatch Correlation

Run dropwatch and tcp_retransmit in the same huatuo-bamai process to correlate packet drops with retransmissions by SKB pointer or connection 4-tuple. The result helps indicate whether the problem is more likely in the host network stack or the external network, but remains heuristic evidence that should be validated with stack traces and network metrics.

Usage

1. Running tcpshark

tcpshark --mode retransmit [flags]
Flag Default Description
--mode retransmit required Select TCP retransmission tracing mode.
--enable-tlp, --tlp disabled Also attach tcp_send_loss_probe and emit TLP events.
--bpf-path <path> required Path to the tcp_retransmit.o eBPF object file.
--filter <expr> (none) tcpdump-style filter for tcp_retransmit_skb events; see §2.
--duration <n> 0 Stop after N seconds (0 = run until Ctrl-C).
--max-events-per-second <n> 0 BPF-side event rate limit; 0 means unlimited.
--output <json|text> text Output format; ignored when --output-storage is set.
--output-storage <path> (none) Send events to huatuo-bamai over a Unix socket.
--task-id <id> (none) Task ID for the toolstream session; requires --output-storage.

When both --output and --output-storage are explicitly specified, --output is ignored and a warning is printed.

1.1 Examples

# Text output for all retransmission-related events
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o

# NDJSON output
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o --output json

# BPF-side filter for regular retransmitted SKBs to one destination host and port
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o --filter "dst host 10.0.0.1 and dst port 443"

# Include Tail Loss Probe events (disabled by default)
sudo tcpshark --mode retransmit --enable-tlp --bpf-path bpf/tcp_retransmit.o

# Emit at most 100 events/second; overflow prints a rate limit hit log
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o \
  --max-events-per-second 100

# Filter all formatted event types to destination port 443 in userspace
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o --output json \
  | jq -c 'select(.tcp_dport == 443)'

# Keep only events classified as RTO for 60 seconds
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o --duration 60 --output json \
  | jq -c 'select(.tcp_reason == "RTO")'

# Forward events to a running huatuo-bamai instance
sudo tcpshark --mode retransmit --bpf-path bpf/tcp_retransmit.o \
  --output-storage /var/run/huatuo-toolstream.sock

jq -c emits compact single-line JSON, which is convenient for NDJSON files and downstream pipelines.

1.2 Integration with huatuo-bamai

tcpshark uses the same --output-storage and toolstream flow as dropwatch. For the common storage workflow, refer to the dropwatch documentation. TCP retransmission tracing adds the following configuration:

[EventTracing.TCPRetransmit]
    # Forwarded to tcpshark --filter; applies only to tcp_retransmit_skb.
    # Default: ""
    Filter = ""

    # Forwarded as tcpshark --enable-tlp. Default: false.
    EnableTLP = false

    # Forwarded as tcpshark --max-events-per-second. Default: 100; 0 disables it.
    MaxEventsPerSecond = 100

The tcp_retransmit tracer is in the global BlackList by default. Remove it from the list and restart huatuo-bamai to enable the tracer. Its drop-correlation cache is enabled only while the tracer is running and is cleared when the tracer stops. After enabling it, use the HTTP API to start or stop tracing:

curl -X PUT http://localhost:19704/tracers/tcp_retransmit/start
curl -X PUT http://localhost:19704/tracers/tcp_retransmit/stop

2. Filter Expressions

tcpshark uses the same tcpdump-style filter expressions as dropwatch. For complete syntax, limitations, and additional examples, refer to the dropwatch documentation.

# Select one destination host and port
--filter "dst host 10.0.0.1 and dst port 443"

# Select traffic in both directions between two networks
--filter "(src net 10.10.0.0/16 and dst net 10.20.0.0/16) or (src net 10.20.0.0/16 and dst net 10.10.0.0/16)"

--filter applies only to tcp_retransmit_skb. The tcp_retransmit_synack and enabled tcp_send_loss_probe events have no SKB and bypass the filter.

3. Event Data Structure

Each event is an NDJSON object (types.TCPRetransmitTracing). Fields tagged with omitempty are absent when their value is empty or zero.

Field Type Description
observed_timestamp string UTC userspace receive/format time (RFC3339Nano), not the kernel hook timestamp.
comm string Current kernel execution-context command, not necessarily the socket-owning process.
pid uint64 Current execution-context TGID, not necessarily the socket owner’s TGID.
container_id string Container ID when resolved by huatuo-bamai; see §3.2.
memory_cgroup_css_addr string Socket memory-cgroup CSS address in hexadecimal form, used for container resolution.
net_namespace_cookie uint64 Socket network-namespace cookie used for container resolution.
net_namespace_inum uint32 Socket network namespace inum used for container resolution.
tcp_saddr string Source IP address.
tcp_daddr string Destination IP address.
tcp_sport uint16 Source port.
tcp_dport uint16 Destination port.
tcp_state string TCP socket state, such as ESTABLISHED, SYN_SENT, or NEW_SYN_RECV.
phase string Classifier output: connect, data, or close.
tcp_reason string Classifier output: RTO, fast_retransmit, reorder_prone_fast, TLP, or unknown.
event_type string tcp_retransmit_skb, tcp_retransmit_synack, or tcp_send_loss_probe.
ca_state uint8 Congestion-control state: 0=Open, 1=Disorder, 2=CWR, 3=Recovery, 4=Loss.
icsk_retransmits uint8 Current retransmission counter snapshot.
icsk_pending uint8 Raw pending timer state from inet_connection_sock; see the value table below.
reord_seen uint32 Cumulative flow reorder counter.
dsack_dups uint32 Cumulative DSACK duplicate counter.
tcp_seq uint32 TCP_SKB_CB(skb)->seq for SKB events; snd_nxt for TLP events; zero for SYN-ACK events.
tcp_ack_seq uint32 tcp_sk(sk)->rcv_nxt for SKB events; snd_una for TLP events; zero for SYN-ACK events.
tcp_end_seq uint32 TCP_SKB_CB(skb)->end_seq for SKB events; omitted for SYN-ACK and TLP events.
tcp_flags string Rendered TCP flag set such as `SYN
skb_addr string Retransmission-queue SKB pointer in hex; absent for SYN-ACK and TLP events.
drop_location string huatuo-bamai correlation heuristic; see §5.
source string Event source. It is tools when tcpshark runs standalone and events when huatuo-bamai launches it.

icsk_pending is a timer-state snapshot at the hook, not a stable retransmission-reason enum. TLP classification uses the explicit event_type=tcp_send_loss_probe and does not depend on icsk_pending=5.

Value Kernel state Meaning
0 None No transmit-timer event is currently pending.
1 ICSK_TIME_RETRANS Retransmission timeout timer (RTO).
2 ICSK_TIME_DACK Delayed ACK; modern kernels keep this state in icsk_ack.pending and use a separate delayed-ACK timer, so it normally does not appear in icsk_pending.
3 ICSK_TIME_PROBE0 Zero-window probe timer.
4 Version-dependent Current mainline kernels no longer define this value; older kernels used it for Early Retransmit, and still older kernels used it for Keepalive.
5 ICSK_TIME_LOSS_PROBE Tail Loss Probe (TLP) timer.
6 ICSK_TIME_REO_TIMEOUT Reordering timeout, primarily used by RACK loss detection.

3.1 Text Output Format

Text retains its terminal-friendly layout while covering the same event variables as JSON. Variables tagged with omitempty appear only when non-zero or non-empty, and string values are not JSON-quoted or escaped. For compatibility with the original text format, state, skb, seq, end, ack, flags, ca, and retrans correspond to the JSON fields tcp_state, skb_addr, tcp_seq, tcp_end_seq, tcp_ack_seq, tcp_flags, ca_state, and icsk_retransmits, respectively.

<timestamp> [<phase>/<tcp_reason>] <saddr>:<sport> > <daddr>:<dport> state=<STATE> event_type=<TYPE> [SYNACK] [skb=<ADDR>] seq=<N> [end=<N>] ack=<N> [flags=<FLAGS>] pid=<N> comm=<COMM> ca=<N> retrans=<N> icsk_pending=<N> [reord_seen=<N>] [dsack_dups=<N>] [container_id=<ID>] [memory_cgroup_css_addr=<ADDR>] [net_namespace_cookie=<N>] [net_namespace_inum=<N>] [drop_location=<LOCATION>] [source=<SOURCE>]

Example:

2026-07-23T02:14:40.304775546Z [data/RTO] 127.0.0.1:19996 > 127.0.0.1:42128 state=ESTABLISHED event_type=tcp_retransmit_skb skb=0xffff931c14fdf800 seq=3154974646 end=3154991030 ack=948393597 flags=ACK|PSH pid=1420 comm=kube-apiserver ca=4 retrans=4 icsk_pending=0 net_namespace_inum=4026531992

The pid and comm in this example describe the execution context in which the hook ran; use container_id and socket metadata for workload attribution.

3.2 Container ID Resolution

tcpshark cannot access the Pod manager directly. In standalone output, container_id is normally absent, while socket memcg and network-namespace metadata are still emitted when available. In huatuo-bamai mode, an empty container_id is resolved in this order: memory_cgroup_css_addr, net_namespace_cookie, then net_namespace_inum.

If all lookups miss, the event is still stored without container_id. Do not use pid or comm as a fallback for socket ownership because they describe the hook execution context.

4. Kernel Events and Classification

4.1 Kernel Hook Points

Hook Kernel location What the event means Data availability
tracepoint tcp/tcp_retransmit_skb __tcp_retransmit_skb() A retransmission was attempted for a retransmission-queue SKB. The tcpshark event does not retain the kernel transmit result. The SKB is headerless, so sequence fields come from TCP_SKB_CB(skb) and ACK comes from tcp_sk(sk)->rcv_nxt. SKB pointer, TCP seq/end_seq/ack/flags, socket state, CA state, timers, and reorder counters.
tracepoint tcp/tcp_retransmit_synack tcp_rtx_synack() A passive-open SYN-ACK retransmission was successfully submitted by tcp_rtx_synack(). Request-socket addresses and ports; no retransmission SKB pointer or TCP seq/ack.
kprobe tcp_send_loss_probe tcp_send_loss_probe() A Tail Loss Probe is being prepared; collected only with --enable-tlp. Socket metadata plus snd_nxt/snd_una; no SKB pointer or rendered TCP flags.

The BPF program uses CO-RE field reads (BPF_CORE_READ and related helpers), so supported kernel layouts do not require rebuilding the C source for each kernel version.

4.2 Connection Phase

The regular-SKB phase is derived from sk_state. SYN-ACK events use a fixed phase in userspace.

The TCP three-way handshake below shows the connect phase and its retransmission hook points:

sequenceDiagram
    participant C as Client
    participant S as Server
    Note over C,S: Initial states: CLOSED / LISTEN
    C->>S: ① SYN
    Note left of C: SYN_SENT(2)<br/>phase=connect
    opt SYN is not acknowledged
        C-->>S: SYN retransmission<br/>tcp_retransmit_skb
    end
    Note right of S: SYN_RECV(3) or NEW_SYN_RECV(12)<br/>phase=connect
    S->>C: ② SYN + ACK
    opt Final ACK does not arrive
        S-->>C: SYN-ACK retransmission<br/>tcp_retransmit_synack
    end
    C->>S: ③ ACK
    Note over C,S: ESTABLISHED(1)<br/>subsequent regular data-SKB events use phase=data

The three solid arrows are the initial handshake packets and do not produce tcpshark events. Only the retransmission paths inside the optional blocks are observed. Active-open SYN retries are reported by tcp_retransmit_skb, while passive-open SYN-ACK retries are reported by tcp_retransmit_synack; both are classified as connect.

The complete phase mapping is:

Phase Source state or event Description
connect SYN_SENT(2), SYN_RECV(3), NEW_SYN_RECV(12), or tcp_retransmit_synack Connection establishment.
data ESTABLISHED(1) or unrecognized/default states Data transfer/default classification.
close FIN_WAIT1(4), FIN_WAIT2(5), TIME_WAIT(6), CLOSE_WAIT(8), LAST_ACK(9), CLOSING(11) Connection teardown.

4.3 Reason Classification

Event or condition Reason Interpretation
tcp_retransmit_synack RTO Fixed userspace label for the SYN-ACK retry timer path.
tcp_send_loss_probe TLP Fixed userspace label for the optional Tail Loss Probe hook.
tcp_retransmit_skb, ca_state=4 (Loss) RTO The socket is in TCP_CA_Loss.
tcp_retransmit_skb, ca_state=3 (Recovery) fast_retransmit or reorder_prone_fast Recovery-path retransmission; the reorder-prone label is selected when cumulative reorder history exists.
tcp_retransmit_skb, ca_state=0..2, connect/close phase RTO Phase-based fallback used by the current classifier.
tcp_retransmit_skb, ca_state=0..2, data phase unknown The available snapshots are insufficient to assign another label.

The classifier observes socket state at the hook and cannot reconstruct the complete ACK/loss history. Treat tcp_reason as a grouping label rather than a verified root cause.

4.4 Reorder Heuristic

The reorder-prone label is selected when either reord_seen or dsack_dups is non-zero. Once a flow has reorder history, subsequent Recovery-state SKB events can be labeled reorder_prone_fast. This is a flow-level heuristic, not proof that the current retransmission was caused by reordering.

4.5 Operational Guidance

No event type is unconditionally safe to discard. Prefer rate, ratio, and service-impact thresholds over filtering solely by event_type or tcp_reason. For the common huatuo-bamai noise-filtering mechanism, refer to the dropwatch documentation.

Pattern Typical priority Guidance
tcp_reason=RTO High Investigate sustained or service-correlated increases; RTO normally has greater latency impact than Recovery-path retransmission.
tcp_reason=fast_retransmit Medium Correlate with loss, congestion, and SACK/RACK behavior.
tcp_reason=reorder_prone_fast Context dependent The flow has prior reorder history, but the current event is not proven spurious; inspect latency and counter growth.
tcp_reason=TLP Context dependent Optional signal only; confirm that TLP collection was deliberately enabled before using it in alerting.
event_type=tcp_retransmit_synack Usually low per isolated retry Repeated events can indicate handshake reachability, host egress, firewall, or client/network problems.

When building alerts, aggregate by service or connection and compare against traffic volume. A small absolute count on a busy host can be benign, while a burst affecting a low-volume critical service can be significant.

5. Correlation with dropwatch

When dropwatch and tcpshark feed the same huatuo-bamai process, dropwatch events are retained in a userspace cache for two seconds from their arrival time. A tcpshark event immediately queries previously received, unexpired drop events using a direction-independent connection key. The implementation does not wait for later drop events and does not revise an event after storage.

5.1 Correlation Results

Internal result Match drop_location Safe interpretation
TCPRetransmitDropDirect Within the same connection-cache bucket, non-empty dropwatch.packet_skb_addr and tcpshark.skb_addr are equal. host_software Strong evidence that the observed host drop and retransmission refer to the same SKB pointer.
TCPRetransmitDrop4Tuple A cached TCP drop matches the addresses and ports in either direction. host_software A host drop was observed on the same connection near the retransmission; causality is not proven.
TCPRetransmitNoDrop No matching live cache entry exists. network_or_host_hardware Current fallback label only; it does not prove a network or hardware drop.

network_or_host_hardware can also be produced when dropwatch is disabled, its filter does not cover the flow, an event is suppressed or lost, delivery is reordered, or the relevant drop falls outside the retention window. Likewise, a 4-tuple match can pair unrelated packets from a busy connection. The cache key does not include a network-namespace or container identifier, so identical address/port tuples in different network namespaces can also collide.

5.2 Requirements and Troubleshooting

Observation Checks
host_software with a direct match Inspect the matching dropwatch stack, device, and drop metadata.
host_software from a connection match Verify direction, TCP sequence/ack context, and timing before assigning causality.
network_or_host_hardware First confirm dropwatch is running in the same huatuo-bamai process and its filter covers the flow; then inspect NIC and network counters.
drop_location absent Expected in standalone output; correlation is performed by huatuo-bamai, not the CLI.

For reliable negative evidence, dropwatch must be active with a filter that is at least as broad as the tcpshark traffic of interest. The current schema has no separate unknown or dropwatch_not_observed value, so consumers should treat network_or_host_hardware as an investigation hint rather than a fact.

Closing

7 - Development

7.1 - Extending Observability

HUATUO supports three extension types: Metrics, Event, and AutoTracing. They use the same registration framework but differ in activation, runtime cost, and data output.

Type Activation Data output Use case
Metrics Periodic collection Prometheus Continuous performance monitoring and long-term trends
Event Kernel event or threshold ES, local files, optional Prometheus Continuous operation with anomaly context capture
AutoTracing System anomaly ES, local files, optional Prometheus On-demand, higher-cost context capture

Collection Modes

Metrics

Metrics periodically collect system state through procfs, sysfs, or eBPF and expose it in Prometheus format. This mode supports real-time monitoring and long-term trend analysis. Built-in collectors cover:

  • CPU: sys, usr, util, load, nr_running, and related metrics.
  • Memory: vmstat, memory_stat, directreclaim, and asyncreclaim.
  • I/O: d2c, q2c, freeze, and flush.
  • Networking: ARP, socket memory, qdisc, netstat, netdev, and sockstat.

Event

Events continuously observe kernel events or threshold conditions and preserve kernel context when an anomaly occurs. This mode is intended for low-overhead, always-on observation. Data is written to Elasticsearch and local files and can also produce Prometheus metrics. Built-in events include:

  • Soft interrupt anomalies (softirq_tracing).
  • Abnormal memory allocation (oom).
  • Soft lockups (softlockup).
  • D-state processes (hungtask).
  • Memory reclaim (memory_reclaim_events).
  • Packet drops (dropwatch).
  • Network receive latency (net_rx_latency).

AutoTracing

AutoTracing invokes diagnostic tools after detecting a system anomaly. It is intended for flame graphs, context snapshots, and other diagnostic operations that are too expensive to run continuously. Results are written to Elasticsearch and local files and can also be converted into Prometheus metrics. Built-in capabilities include:

  • CPU idle and system-time anomaly tracing (cpuidle, cpusys).
  • D-state load tracing (dload).
  • Burst memory allocation tracing (memburst).
  • Disk I/O anomaly tracing (iotracing).

Event and AutoTracing are both Tracing modes and share the ITracingEvent interface. They can preserve anomaly context for root-cause analysis and expose statistics to Prometheus by also implementing Collector.

Adding Metrics

Custom Metrics collectors expose Prometheus metrics through /metrics.

Implement Collector

Create a type under core/metrics that implements Collector:

type Collector interface {
    Update() ([]*Data, error)
}

type exampleMetric struct{}

func (c *exampleMetric) Update() ([]*metric.Data, error) {
    return []*metric.Data{
        metric.NewGaugeData("example", value, "example value", nil),
    }, nil
}

Register the collector

Use FlagMetric when registering the implementation:

func init() {
    tracing.RegisterEventTracing("example", newExampleMetric)
}

func newExampleMetric() (*tracing.EventTracingAttr, error) {
    return &tracing.EventTracingAttr{
        TracingData: &exampleMetric{},
        Flag:        tracing.FlagMetric,
    }, nil
}

Manage BPF object

When one implementation provides both Start and Update, the methods may run concurrently. Do not read and write a bpf.BPF interface directly in a collector field. Use Reference and Lease from internal/bpf/bpf_ref.go to manage the object lifetime:

type example struct {
    object bpf.Reference
}

func (c *example) Start(ctx context.Context) (retErr error) {
    object, err := bpf.LoadBpf(bpf.ThisBpfOBJ(), nil)
    if err != nil {
        return err
    }

    if err := object.Attach(); err != nil {
        return errors.Join(err, object.Close())
    }
    if err := c.object.Publish(object); err != nil {
        return errors.Join(err, object.Close())
    }
    defer func() {
        retErr = errors.Join(retErr, c.object.UnPublish())
    }()

    <-ctx.Done()
    return nil
}

func (c *example) Update() ([]*metric.Data, error) {
    lease, ok := c.object.Acquire()
    if !ok {
        return nil, nil
    }
    defer lease.Release()

    items, err := lease.DumpMapByName("example_map")
    if err != nil {
        return nil, fmt.Errorf("dump example_map: %w", err)
    }

    return buildMetrics(items), nil
}

The API has these constraints:

  • Publish transfers ownership of the object to Reference. Do not call object.Close() directly after a successful publish.
  • The Lease returned by Acquire pins the BPF object until the current Update completes. Always pair it with Release, and do not copy a Lease.
  • UnPublish first prevents new acquisitions, then waits for every Lease to be released, closes the BPF object, and returns the close error.
  • Calls to Publish and UnPublish must be serialized. The current framework does not run Start concurrently for the same instance.

An Update that has already started can therefore finish with its original BPF object. During shutdown or restart, Start closes that object only after those updates complete.

Adding an Event

An Event implements ITracingEvent:

type ITracingEvent interface {
    Start(ctx context.Context) error
}

type exampleEvent struct{}

func (e *exampleEvent) Start(ctx context.Context) error {
    // Detect the event and capture its context.
    // storage.Save writes the data to ES and local storage.
    storage.Save("example", containerID, time.Now(), eventData)
    return nil
}

Register it with FlagTracing:

func init() {
    tracing.RegisterEventTracing("example", newExampleEvent)
}

func newExampleEvent() (*tracing.EventTracingAttr, error) {
    return &tracing.EventTracingAttr{
        TracingData: &exampleEvent{},
        Interval:    10,
        Flag:        tracing.FlagTracing,
    }, nil
}

To expose Prometheus metrics for the event, also implement Collector and add tracing.FlagMetric to Flag.

Adding AutoTracing

AutoTracing and Event use the same ITracingEvent interface and registration framework:

type exampleAutoTracing struct{}

func (t *exampleAutoTracing) Start(ctx context.Context) error {
    // Capture context after the anomaly trigger fires.
    storage.Save("example", containerID, time.Now(), tracingData)
    return nil
}

func init() {
    tracing.RegisterEventTracing("example", newExampleAutoTracing)
}

func newExampleAutoTracing() (*tracing.EventTracingAttr, error) {
    return &tracing.EventTracingAttr{
        TracingData: &exampleAutoTracing{},
        Interval:    10,
        Flag:        tracing.FlagTracing,
    }, nil
}

See core/metrics, core/events, and core/autotracing for complete examples covering BPF map interaction, container metadata, storage, and Prometheus output.

7.2 - Development Debugging

Full-Stack Integration

The development Compose configuration builds an image from the current workspace and starts the collector, API Server, Elasticsearch, Prometheus, and Grafana. The collector needs access to the host kernel and cgroups, so run the command with root privileges from the repository root on a Linux host:

sudo make compose-dev-up

Compose aggregates all component logs in the foreground. After changing the source, press Ctrl+C and run the command again. Docker reuses the toolchain layers and Go build cache.

Remove the containers, data volumes, and development image after debugging:

sudo make compose-dev-down

This command removes the Elasticsearch data volume. Do not run it when the integration data must be retained.

BPF Debugging

BPF code can use the bpf_dbg() and bpf_dbg_msg() macros to emit debug information from kernel space. The macros are defined in bpf/include/bpf_dbg.h. Debugging has separate build-time and runtime switches and is completely disabled by default.

Add debug trace points

Each BPF source file that uses the macros must declare its own debug map:

#include "bpf_dbg.h"

BPF_DBG_MAP(native_cpu);

SEC("perf_event")
int prog(void *ctx)
{
        bpf_dbg_msg(ctx, native_cpu, "enter prog");
        bpf_dbg(ctx, native_cpu, "pid and addr", pid, addr, 0);
        return 0;
}

bpf_dbg_msg() emits a message only. bpf_dbg() also accepts up to three u64 arguments.

Build debug objects

Set BPF_DEBUG=1 to pass -DDEBUG_BPF to Clang:

make BPF_DEBUG=1

To rebuild only the BPF objects:

make BPF_DEBUG=1 bpf-build

BPF_DEBUG=0 is the default. In that mode the macros expand to no-ops, and the debug perf event array, event structure, bpf_ktime_get_ns, and bpf_perf_event_output are not emitted into the BPF object.

Enable runtime output

After building the debug objects, pass --log-bpf-debug when starting the profiler. The option currently applies only to the native profiler:

./profiler --type cpu --language native --log-bpf-debug ...

When loading the BPF object, bpf.NewDbg(true) rewrites the bpf_dbg_enabled constant to 1 before LoadBpf. When it is disabled, the verifier eliminates the branch as dead code. Each BPF object maintains an independent switch.

Read debug output

User space emits each debug event at Debug level with these fields:

  • file: BPF source file.
  • line: source line number.
  • ts: event timestamp converted to UTC wall-clock time.
  • msg: debug message.
  • args: up to three u64 arguments, omitted when all values are zero.
bpf_dbg: file=native_oncpu_profiler.c line=120 ts=2026-01-11T08:30:00.123456Z msg=enter prog args=[0x1f4 0xffff8881 0x0]

Debug output requires both a build with BPF_DEBUG=1 and the runtime --log-bpf-debug option.

7.3 - Integration Test

This integration test validates that huatuo-bamai can start correctly with mocked /proc and /sys filesystems and expose the expected Prometheus metrics.

The test runs the real huatuo-bamai binary and verifies the /metricsendpoint output without relying on the host kernel or hardware.

What the Script Does

The integration test performs the following steps:

  1. Generates a temporary bamai.conf
  2. Starts huatuo-bamai with mocked procfs and sysfs
  3. Waits for the Prometheus /metrics endpoint to become available
  4. Fetches all metrics from /metrics
  5. Verifies that all expected metrics exist
  6. Stops the service and cleans up resources

If any expected metric is missing, the test fails.

How to Run

Run the integration test from the project root:

bash integration/run.sh

Pass a file name to run one integration test. The optional second argument is the repeat count and defaults to 1:

bash integration/run.sh test_metrics_exclude_filter.sh 10

or

make integration

On Failure

  • The huatuo-bamai service metrics and logs are printed to stdout
  • The temporary working directory is kept for debugging

On Success

  • Output the list of successfully validated metrics

How to Add New Metrics Tests

1: Add or Update Fixture Data

If the metric depends on /proc or /sys, add or update mock data under:

integration/fixtures/

The directory structure should match the real kernel filesystem layout.

2: Add Expected Metrics

Create a new file under:

integration/fixtures/expected_metrics/
├── cpu.txt
├── memory.txt
└── ...

Each non-empty, non-comment line represents one expected Prometheus metric line and must match the /metrics output exactly.

New *.txt files are automatically picked up by the test.

3: Run the Test

bash integration/run.sh

The test fails if any expected metric is missing or mismatched.

7.4 - BPF ABI Guide

The C structures on the BPF side are the source of truth for the perf event ABI. Go types are generated automatically from BTF in the BPF objects. Do not maintain equivalent structures manually.

Conventions

Each ABI domain maps to one C header and one generated Go file:

Item Convention
Domain name <domain>
C header bpf/include/abi/<domain>_types.h
C structure prefix <domain>_
Generated Go file internal/bpf/abi/<domain>_types_generated.go

<domain> must start with a lowercase letter and contain only lowercase letters, digits, and underscores. Avoid domains with overlapping prefixes, such as net and net_rx.

Implementation

The following example creates the sample domain.

1. Define the ABI Header

Create bpf/include/abi/sample_types.h:

// Copyright 2026 The HuaTuo Authors
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

#ifndef __BPF_ABI_SAMPLE_H__
#define __BPF_ABI_SAMPLE_H__

#include "bpf_abi.h"

#define SAMPLE_DATA_LEN 4

struct sample_detail {
	u32 code;
	u8 data[SAMPLE_DATA_LEN];
};

struct sample_event {
	u64 timestamp;
	struct sample_detail detail;
	u32 pid;
	u8 kind;
	u8 pad[3];
};

BPF_ABI_EXPORT(sample_detail);
BPF_ABI_EXPORT(sample_event);

#endif /* __BPF_ABI_SAMPLE_H__ */

Requirements:

  • Structure names must use the <domain>_ prefix.
  • Every structure that requires a generated Go type must call BPF_ABI_EXPORT(<type>), including nested structures.
  • The header must contain only ABI types and related constants. Do not add BPF programs, maps, or business logic.
  • Array lengths must be compile-time constants and remain consistent across all BPF compilation units.

2. Use the Header in a BPF Program

The ABI header depends on base types such as u8 and u16. Include it after vmlinux.h and the project base headers:

#include "vmlinux.h"

#include "bpf_common.h"
#include "abi/sample_types.h"

Use the ABI structure directly when emitting a perf event:

struct sample_event event = {};

event.timestamp = bpf_ktime_get_ns();
event.pid = bpf_get_current_pid_tgid() >> 32;
event.kind = kind;

bpf_perf_event_output(ctx, &events, COMPAT_BPF_F_CURRENT_CPU,
		      &event, sizeof(event));

The event must be zero-initialized to prevent uninitialized padding from being written to the perf buffer. Any structure passed to bpf_perf_event_output must be defined in an ABI header.

3. Generate and Use the Go Type

Run the following command from the repository root:

make gen-build

The generated file is located at:

internal/bpf/abi/sample_types_generated.go

Reference the generated type directly from Go code:

import "huatuo-bamai/internal/bpf/abi"

var event abi.SampleEvent
if err := reader.ReadInto(&event); err != nil {
	return fmt.Errorf("read sample event: %w", err)
}

The generated file contains the structure, the SampleEventSize size constant, and layout assertions based on unsafe.Sizeof and unsafe.Offsetof. Generated files are read-only. Do not edit them manually.

Types and Layout

Type Support
Fixed-width integers of 1, 2, 4, or 8 bytes Supported
Fixed-length arrays with a nonzero length Supported
Nested structures that meet the same constraints Supported
typedef with a supported target type Supported
Pointers, union, enum, and floating-point types Unsupported
Bit fields and _Bool Unsupported
Zero-length and flexible arrays Unsupported
Recursive structures, overlapping fields, or non-byte-aligned structures Unsupported

Layout requirements:

  • Use fixed-width integers such as u8, s16, u32, and s64.
  • Order fields according to their alignment requirements. Use u8 pad[N] to make padding explicit when necessary.
  • Do not use platform-dependent types such as long or unsigned long.
  • Do not use __attribute__((packed)) to bypass layout validation.
  • If a structure with the same name appears in multiple BPF objects, its fields, offsets, and size must match exactly.

C names are converted to exported Go names by splitting on underscores. For example, sample_event becomes SampleEvent, and pid_tgid becomes PIDTGID. Avoid C names that map to the same Go name, such as sample_id and sample_i_d.

Verification

Run the following commands after adding or modifying an ABI:

make gen-build
go test ./build/bpfabi-tool
make check

Add a decoding test for each new perf event. At a minimum, cover:

  • Integer boundary values and native byte order.
  • Nested structures and the first and last array elements.
  • Fields before and after padding.
  • The sample size and the generated <GoType>Size constant.

Common Errors

Error Check
has no "<domain>_" btf anchors Confirm that a BPF source includes the header and that the type calls BPF_ABI_EXPORT
without matching abi header Confirm that the header name matches the structure prefix and that domain prefixes do not overlap
differs between objects Check whether conditional compilation, array length macros, or included headers change the layout
go offset is ... btf offset is ... Reorder fields or add explicit padding; do not use packed
go type name ... collides Rename C types or fields that map to the same Go name

7.5 - Time Format Contract

Canonical timestamp format for integrations and storage.

Time Format Contract

HUATUO serializes timestamps in UTC with fixed nanosecond precision:

2006-01-02T15:04:05.000000000Z

For example, an event captured at half past midnight on 22 July 2026 is written as:

2026-07-22T00:30:00.123456789Z

Why fixed UTC precision

  • Every host emits the same timezone (Z), so distributed queries do not need timezone-specific handling.
  • The nine fractional digits keep the string width fixed. Lexical ordering therefore matches chronological ordering, which is useful for log files and keyword-indexed storage.
  • Nanoseconds preserve the precision supplied by Go’s time.Time and by event-tracing pipelines.

Integration guidance

When producing data for HUATUO, format times with the canonical helper:

timestamp := timeutil.FormatUTC(time.Now())

When consuming timestamps, use timeutil.Parse. It accepts the canonical format and RFC 3339 timestamps with zero to nine fractional digits so that legacy records remain readable. The returned value is always normalized to UTC.

Do not compare timestamps as strings unless both values have been generated by FormatUTC; third-party RFC 3339 values can have variable fractional precision or non-UTC offsets.

8 - FAQ

Metrics

  • Why do the memory_others_* metrics (e.g. directstall_time) have no data?

    The memory_others collector reads memory cgroup extension interfaces provided by the Didi Cloud custom kernel (memory.directstall_stat, memory.asynreclaim_stat, memory.local_direct_reclaim_time). Mainline and common distribution kernels do not expose these interfaces, and no loadable kernel module provides them, so these metrics are simply not emitted on standard kernels — this is expected behavior.

    To observe container direct reclaim behavior on standard kernels, use the eBPF-based memory_reclaim_container_directstall metric instead; see the Memory System section in “Key Features / Kernel-Wide Insight”.

9 - Contribute

9.1 - Code Contributions

Contributing to HUATUO

Thank you for your interest in contributing to HUATUO! This guide will help you get started.

Ways to Contribute

There are many ways to contribute to HUATUO:

  • Code — Fix bugs, add features, improve performance
  • Documentation — Improve docs, translate content, write tutorials
  • Testing — Write unit tests, integration tests, report bugs
  • eBPF — Add new kernel probes, improve kernel compatibility
  • Review — Review pull requests from other contributors

Development Environment

Prerequisites

Tool Requirement Note
Go 1.24+ The project is written in Go
Linux Kernel 4.18+ eBPF programs require a Linux kernel
Clang/LLVM Any recent version Required for compiling eBPF C programs
Kernel headers linux-headers Required for BPF compilation
Docker (optional) For containerized development
Git Any recent version For version control

Clone the Repository

# Fork the repository on GitHub, then:
git clone https://github.com/YOUR_USERNAME/huatuo.git
cd huatuo
git remote add upstream https://github.com/ccfos/huatuo.git

Build and Test

Build

make all          # Build everything (BPF + Go)
make bpf-build    # Build only BPF programs
make build        # Build only Go binaries
make docker-build # Build Docker image

Full Container Integration

Build the development image from the current source and start the collector, API Server, Elasticsearch, Prometheus, and Grafana:

make compose-dev-up

Stop the environment and remove its containers, volumes, and local development image:

make compose-dev-down

Test

make test  # Run all tests
make unit  # Run unit tests only
make check # Run linting and formatting checks

Note: make test requires /etc/kubernetes/pki for E2E tests. If you don’t have a K8s cluster, use make unit instead.

Contribution Workflow

1. Find or Create an Issue

  • Check the open issues for bugs and features
  • If you find an unassigned issue, comment to ask for assignment
  • If you have a new idea, create an issue first

2. Create a Branch

git checkout -b fix/short-description
# or: git checkout -b feat/short-description
# or: git checkout -b docs/short-description

Branch name prefixes:

Prefix Purpose
fix/ Bug fixes
feat/ New features
docs/ Documentation
refactor/ Code restructuring
test/ Adding tests

3. Make Your Changes

  • Keep changes focused on a single issue
  • Add or update tests to cover your changes
  • Run make check to ensure code style compliance
  • Run make unit to verify tests pass

4. Commit Your Changes

Use conventional commits:

git commit -s -m "fix(scope): brief description

Detailed explanation if needed.

Closes #issue-number

Signed-off-by: Your Name <your.email@example.com>"

The -s flag adds the required DCO Signed-off-by line.

5. Push and Create a Pull Request

git push origin your-branch-name

Then go to ccfos/huatuo and create a draft Pull Request. When ready for review, click Ready for review.

6. Code Review

  • A maintainer will review your PR
  • Address review comments by pushing new commits
  • Once approved, the maintainer will merge your PR

Commit Messages

HUATUO follows Conventional Commits:

<type>(<scope>): <description>

[optional body]

[optional footer]

Types

Type Description
fix A bug fix
feat A new feature
docs Documentation changes
test Adding or updating tests
refactor Code restructuring without behavior change
chore Build process, dependencies, etc.
perf Performance improvements

Examples

fix(pod): preserve response body read errors in httpDoRequest
feat(bpf): add probe for kernel scheduling latency
docs(contributing): add development setup guide
test(request): verify response body is readable after doRequest

Code Style

Language Tool
Go gofumpt + goimports
C (eBPF) clang-format (config in .clang-format)
Shell shfmt
YAML/JSON 2-space indent

Run make check before every commit to ensure compliance.

DCO Sign-off

All contributions must include a Developer Certificate of Origin (DCO) sign-off.

Every commit must end with:

Signed-off-by: Your Name <your.email@example.com>

Use git commit -s to add this automatically.

The sign-off certifies that you wrote the code or have the right to contribute it under the project’s license (Apache 2.0).

Community

  • GitHub Issues — Report bugs and request features
  • GitHub Discussions — Ask questions and share ideas
  • WeChat — Scan the QR code in the README to join the group

Thank you for contributing to HUATUO!

10 - Change Log
